DURKOPP ADLER 559 - Adjusting the Spreading

8.3 Adjusting the spreading
Caution: Danger of injury!
Exercise utmost caution when making adjustments with the
machine running.
Standard checking

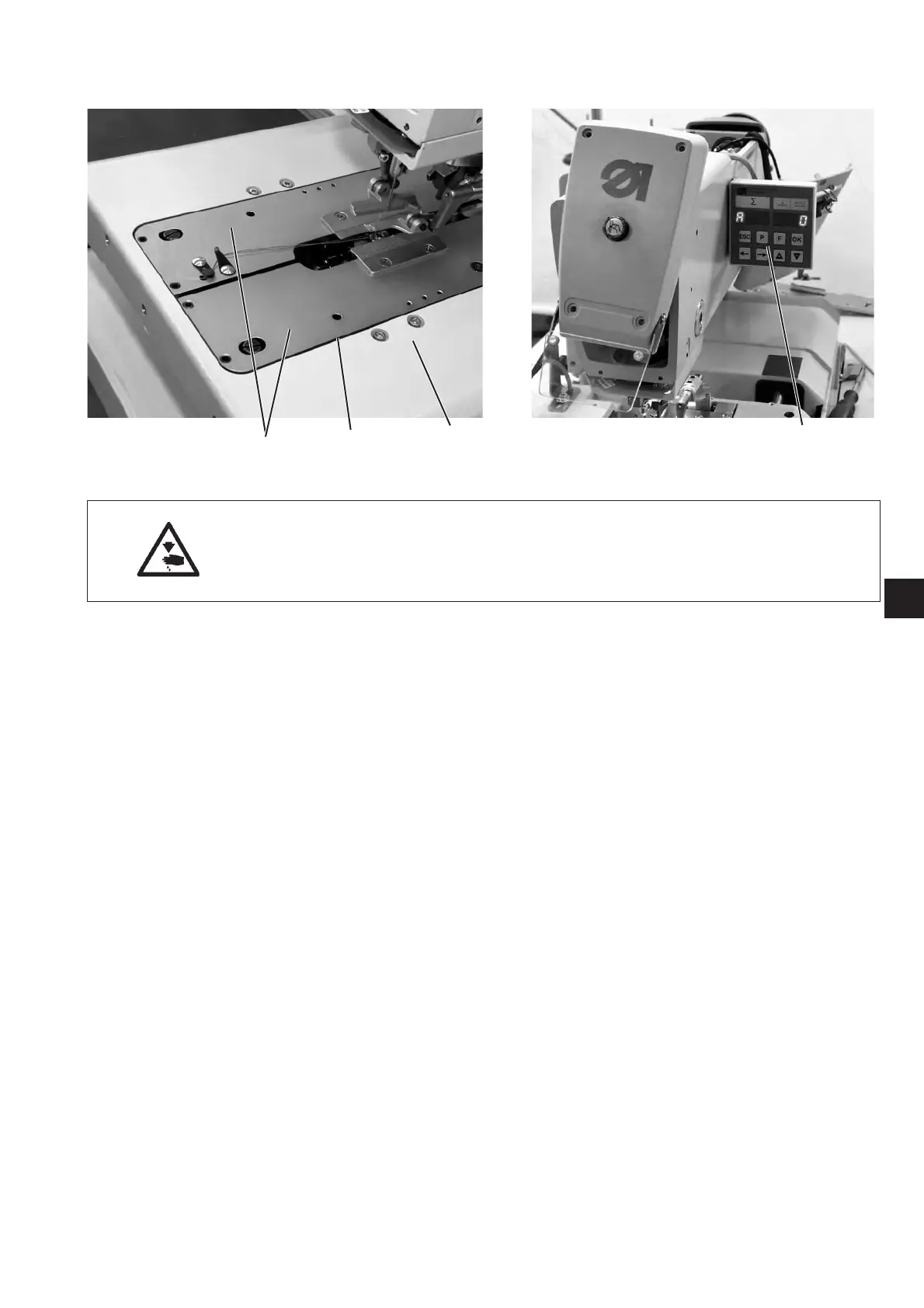

The distance X between the clamping plates 2 and the fabric support
plate 1 should amount to 1.3 mm (non-spreaded) and to 0.3 mm
(spreaded).
–
Insert the c lamping plates 2 and switch the machine on.
–
Press the keys “P” and “F” on the control panel simultaneously.
–
Enter code “2548”.
–
Press key ”OK”.
The control switches to the technician level.
–
Select the menu “601” with the k ey “+”.
–
Switch the menu on with key ”OK ”.
–
Select the function “Y03” (closing the fabric clamp).
–
Press key ”OK”.
The fabric clamps close.
–
Check whether the distance X amounts to 1.3 mm.
–
Select the function “Y04”.
–
Press key ”OK”.
The fabric clamps spread.
–
Check whether the distance X amounts to 0.3 mm.
3
19
2X 1 4
