10.4 Adjusting the switch for the trimming system
Caution: Danger of injury !
Switchthemainswitchoff.
Adjust the trimming system only with the machine switched off.
Standard checking
Before the fabric support plate continues transporting the fabric, the
cutting stamp must be in its upper position.

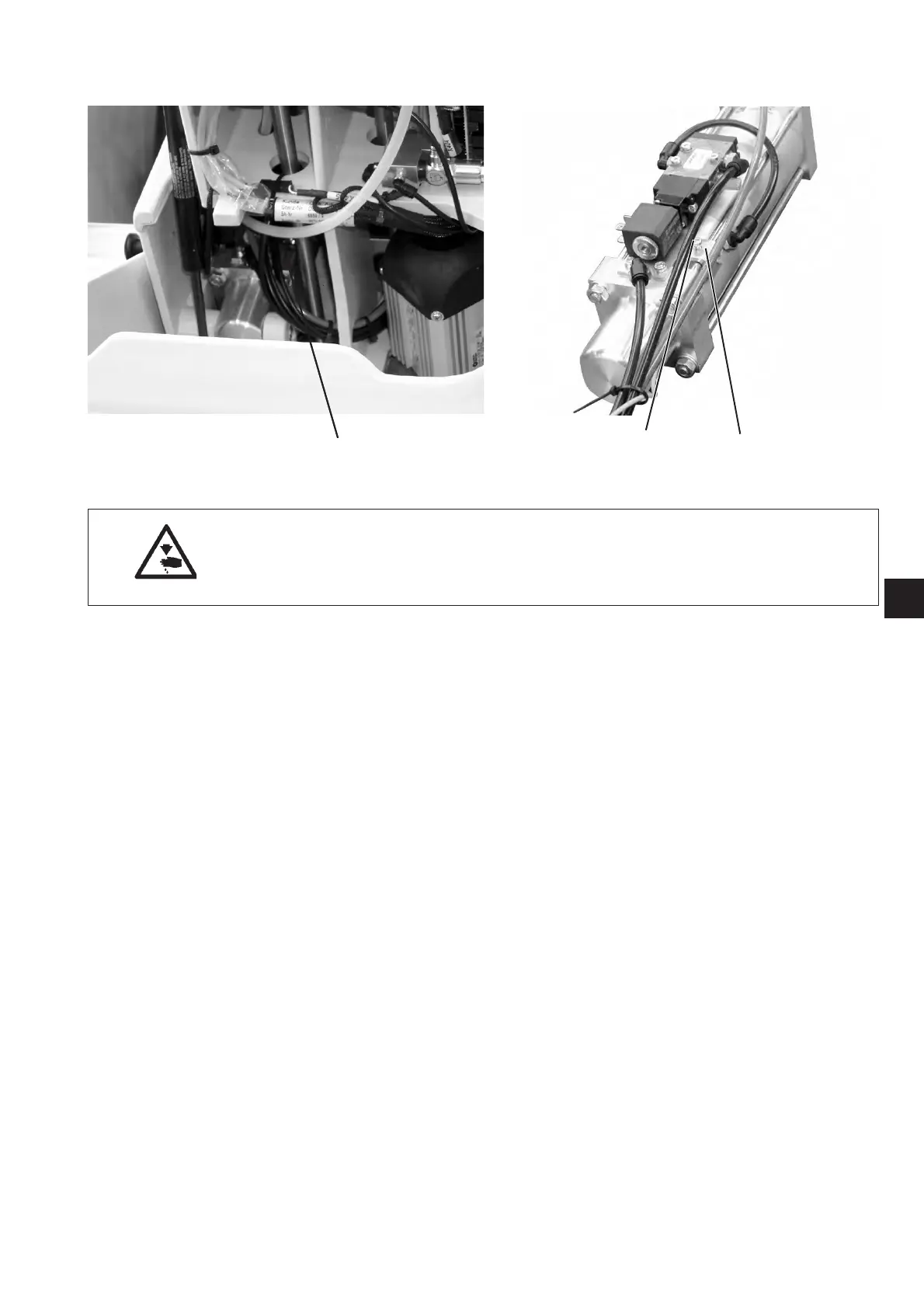

In order to avoid a possible collision, switch 1 checks the position of
the cutting stamp.
Correcting the height of the sw itch
–
Loosen screw 2.
–
Adjust the height of switch 1 accordingly.
–
Tighten screw 2.
33
3
21
1
