20. Adjusting the fabric clamps

Caution: Danger of injury !

Switchthemainswitchoff.

Adjust the fabric clamps only with the machine switched off.

Standard checking

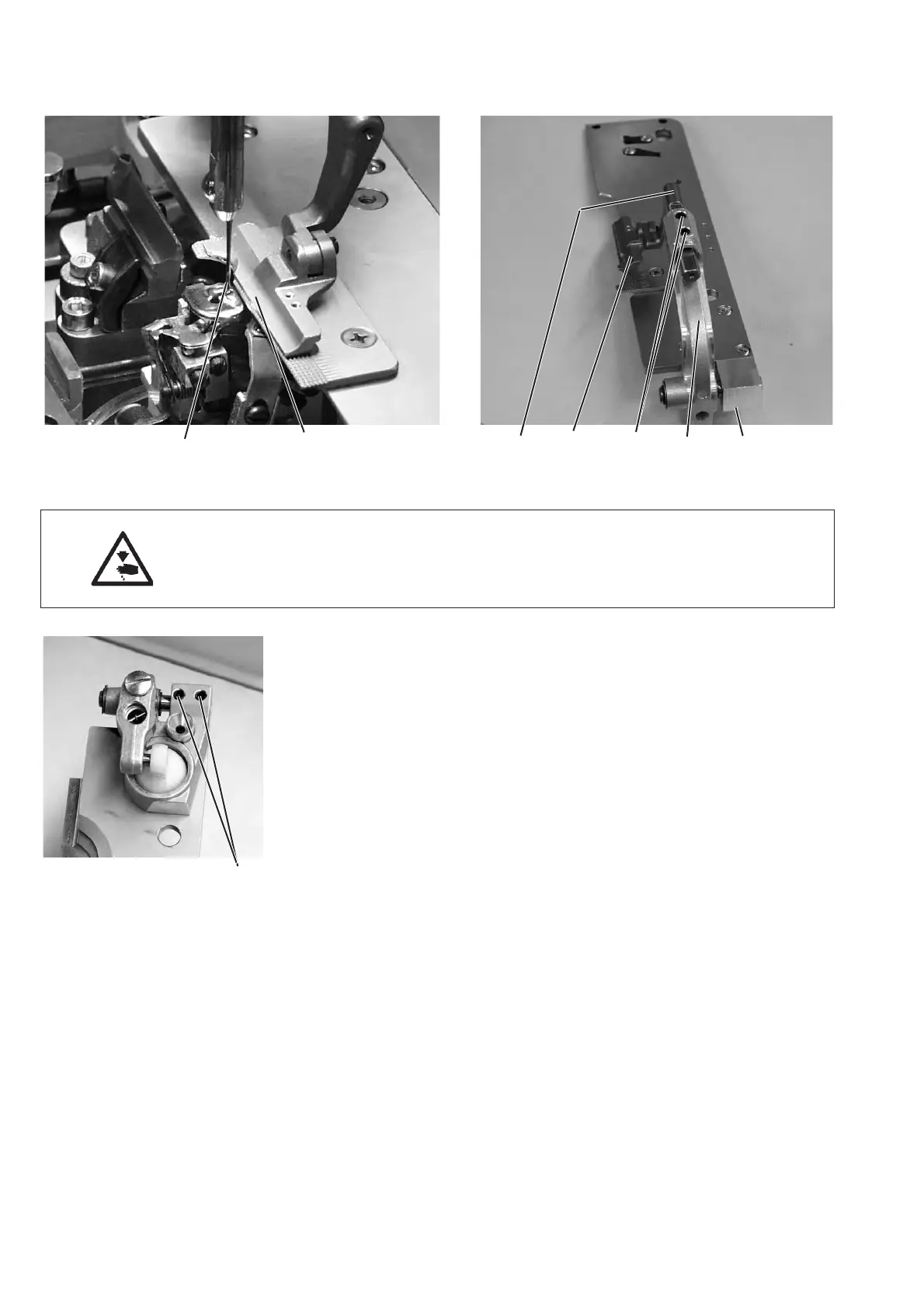

Between the needle 2 and the upper fabric clamp 1 there should be a

distance of 1 mm over the whole length and in the eyelet.

–

Press key “P”.

–

Select the menu “150”.

–

Enter “+0.5”.

–

Select the menu “162”.

–

Set the cutting area to “ 0.7”.

–

Insert the clamping plates.

–

Insert a new needle.

–

Check the distance between the upper fabric clamp 1 and the

needle 2.

Correction

–

Loosen screws 3 (underside).

–

Align the clamp bow 7 with fabric clamp 5 laterally to the needle.

–

Tighten screws 3.

–

Loosen screws 4.

–

Align the clamp a rm 6 with fabric clamp 5 in the eyelet as to the

needle.

–

Tighten screw 5.

21 65 4 7 3
