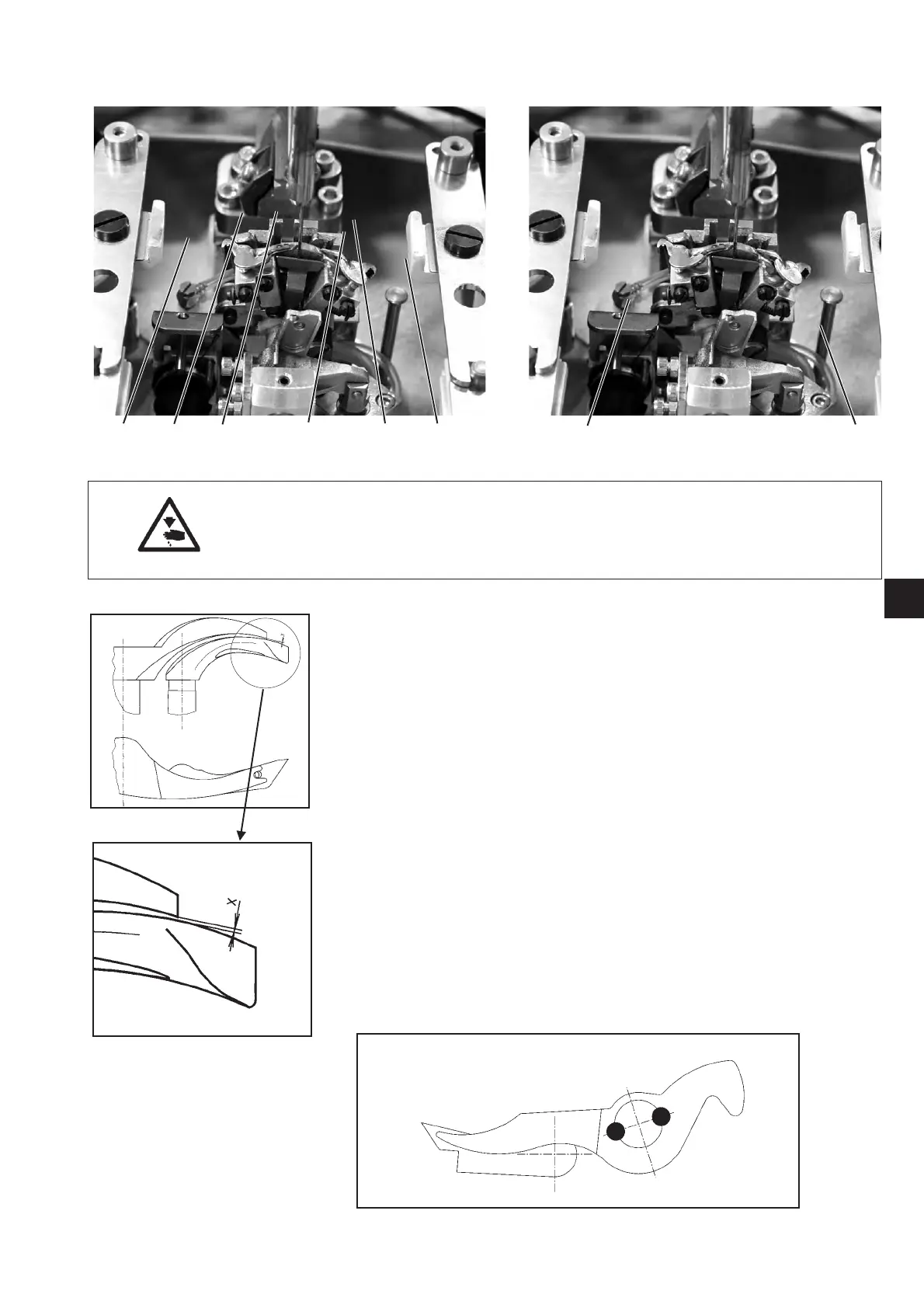

16. Spreader
Caution: Danger of injury !
Switchthemainswitchoff.
Adjust the s preader only with the machine switched off.
Standard checking
The distance between the fork spreader 5 and the left looper 4 must
correspond to the thickness of the looper thread used (see illustration
X opposite).
The right spreader 2 should move as c losely as possible on the top
side of the r ight looper 3, but without touching it.
The spreaders being under spring pressure are held in their end
position by the stops 1 and 6.
The fork of the left spreader 5 should be exactly above the thread hole
of the left looper 4 (see illustration opposite) and the point of the right
spreader 2 centrally above the tip of the right looper 3 (see illustration
at the bottom of the page).
Correction
–
For adjusting the distance between spreader and looper slightly
align the spreaders.
–
For setting the final positions of the s preaders loosen the screws 7
or 8 at the looper to be adjusted.
–
Turn spreader stop 1 or 6 slightly.
–
Tighten screw 7 or 8.
