20.2 Machines with moving binder
Machines with a moving binder allow the edge of the sewing material
to be bound simultaneously.
Proper setting
The binder (1) operates in sync with the feed.
You can use the Plus/Minus buttons to adjust the binder for more width
or less feed.

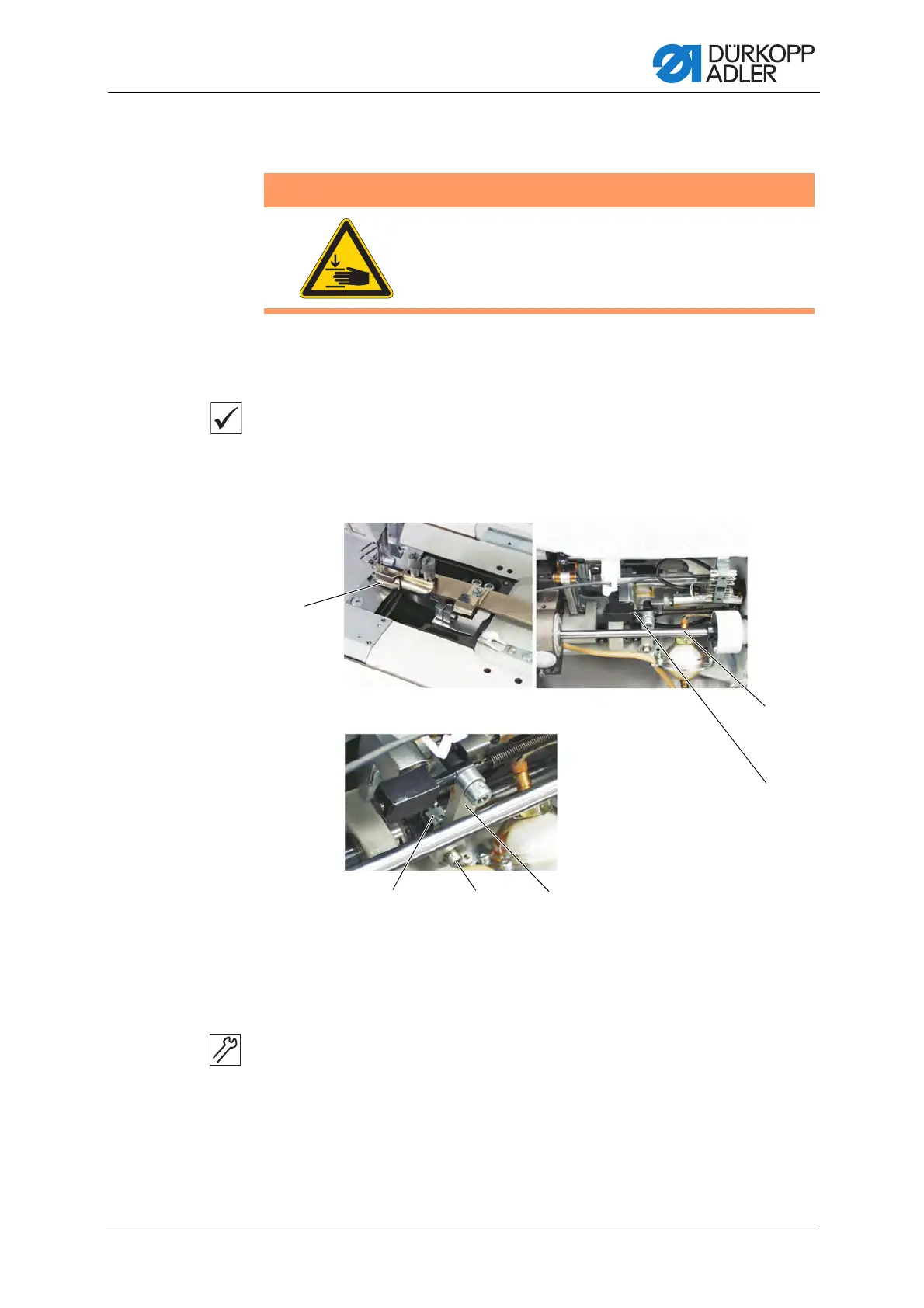

Fig. 90: Machines with moving binder
Basic setting for synchronous operation
To adjust the basic setting for synchronous operation:
1. Set the handwheel to 100°.
 The shaft (5) must be parallel to the hook shaft (6).
2. Remove the shaft (5).
3. Check for synchronous operation.
WARNING
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Switch off the machine before adjusting the binder.
(1) - Binder
(2) - Clamping block
(3) - Screw
(4) - Lever
(5) - Shaft
(6) - Hook shaft
①
⑤
⑥
②③④

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
