DURKOPP ADLER 867 Service Manual

Maintenance
120 Service Instructions 867 - 04.0 - 10/2019
22.3.2 Draining the water-oil mixture
The collection tray (2) of the pressure regulator will show accumulation of
a water-oil mixture.
Proper setting
The water-oil mixture must not rise up to the level of the filter element (1).
Check the level of the water-oil mixture in the collection tray (2).

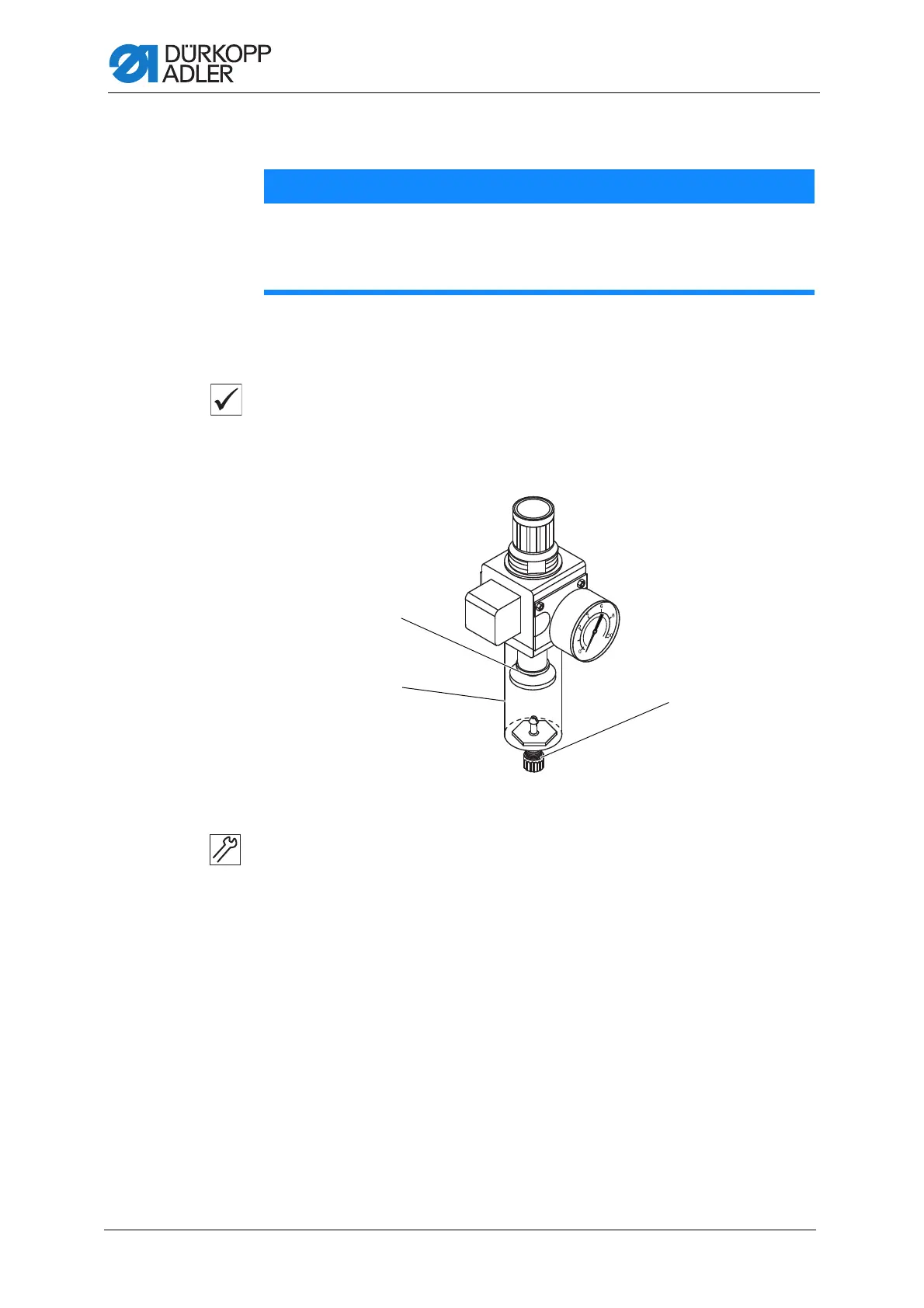

Fig. 101: Draining the water-oil mixture
To drain the water-oil mixture:
1. Disconnect the machine from the compressed air supply.
2. Place the vessel under the drain screw (3).
3. Loosen the drain screw (3) completely.
4. Allow the water-oil mixture to drain into the vessel.
5. Tighten the drain screw (3).
6. Connect the machine to the compressed air supply.
NOTICE
Property damage from excess liquid!
Too much liquid can result in damage to the machine.
Drain liquid as required.
(1) - Filter element
(2) - Collection tray
(3) - Drain screw
①
②
③
