Working basis
Service Instructions 867 - 04.0 - 10/2019 21
Order
Then check the following adjustment:
• Feed dog ( p. 35)
3.4 Flats on shafts

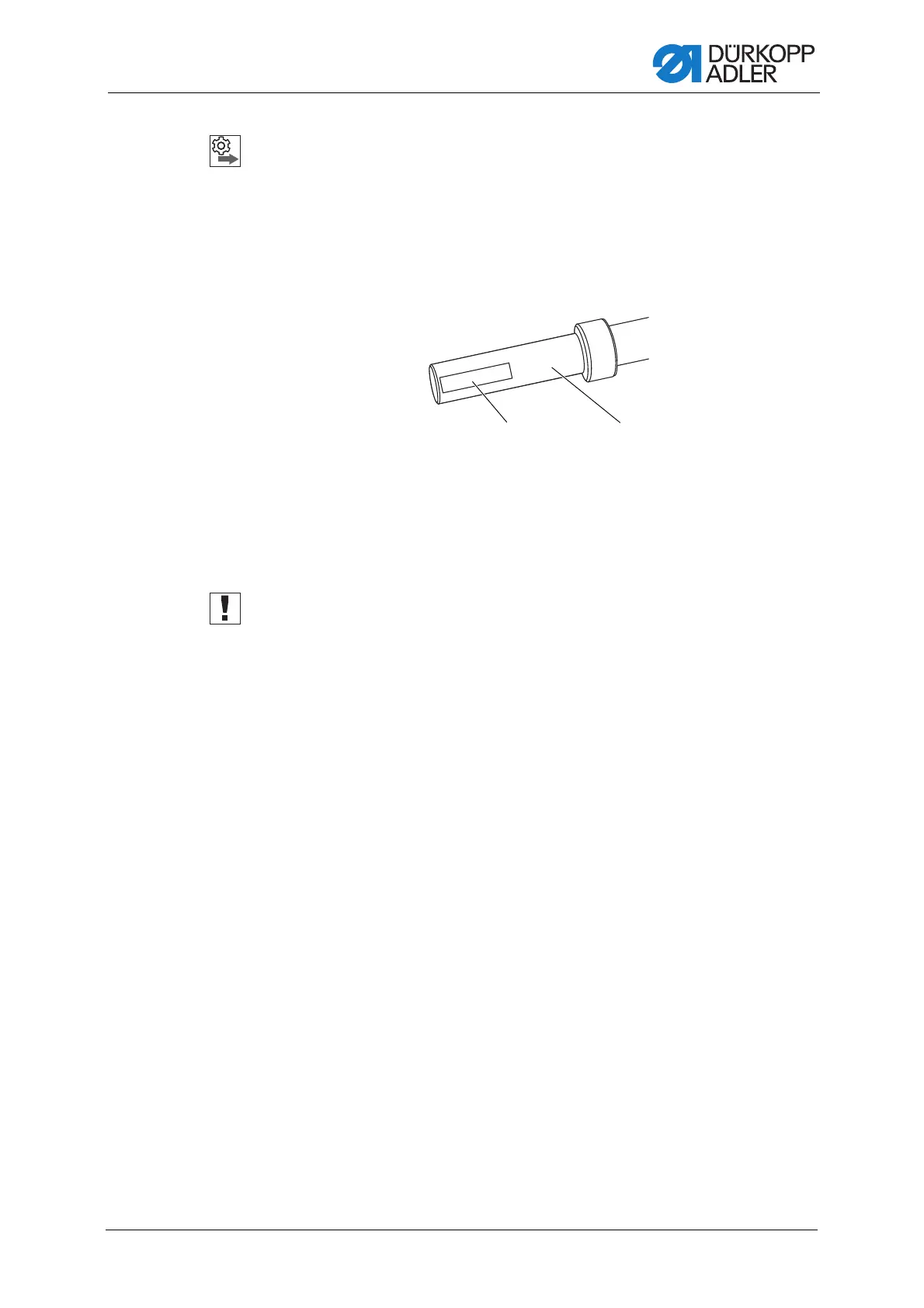

Fig. 8: Flats on shafts
Some shafts have flat surfaces at the points where the components are
screwed on. This stabilizes the connection and makes adjusting easier.
For all adjustments on the surface, the first screw in the direction of rota-
tion is screwed onto the surface.
Important
Always ensure that the screw faces are completely flush with the surface.
(1) - Flat (2) - Shaft
①②

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
