Sewing Feet
Service Instructions 867 - 04.0 - 10/2019 59
12.2 Adjusting the stroke movement for the walking foot

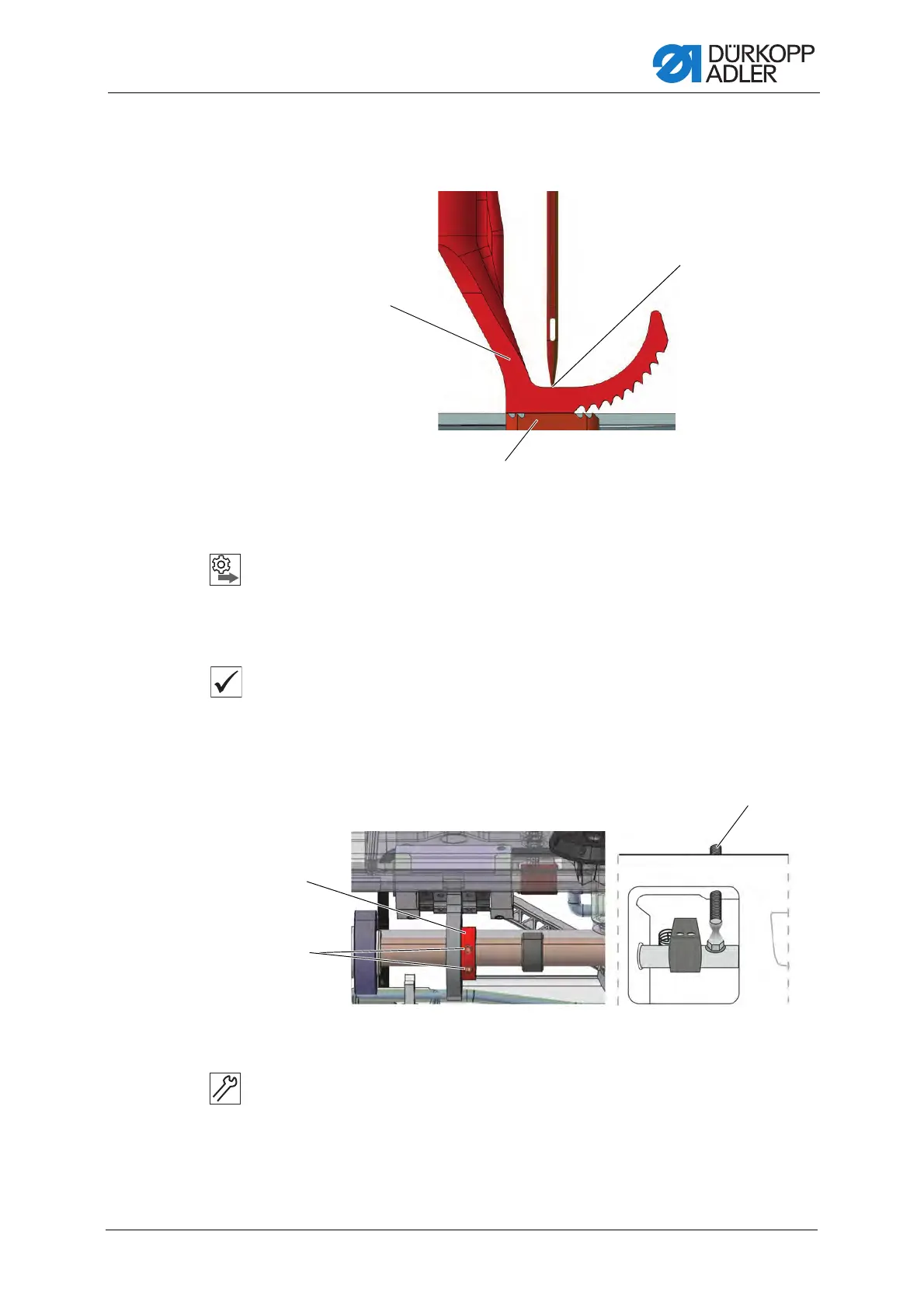

Fig. 43: Adjusting the stroke movement for the walking foot (1)
Order
First, check the following adjustment:
• Even sewing foot stroke ( p. 58)
• The feed dog stroke movement ( p. 40)
Proper setting
The walking foot (1) touches down exactly on the feed dog (2) when
the downward movement of the needle tip (3) reaches the upper edge
of the walking foot. This occurs at handwheel position 95°.
Fig. 44: Adjusting the stroke movement for the walking foot (2)
To adjust the stroke movement for the walking foot:
1. Disassemble the arm cover ( p. 15).
2. Screw in the threaded pin (6) so that there is a stroke.
3. Set the upper stitch length adjusting wheel to 0.
(1) - Walking foot
(2) - Feed dog
(3) - Needle tip
(4) - Stroke eccentric
(5) - Threaded pins
(6) - Threaded pin
