DURKOPP ADLER 867 Service Manual

Working basis
Service Instructions 867 - 04.0 - 10/2019 15
3.3.2 Assembling and disassembling the arm cover

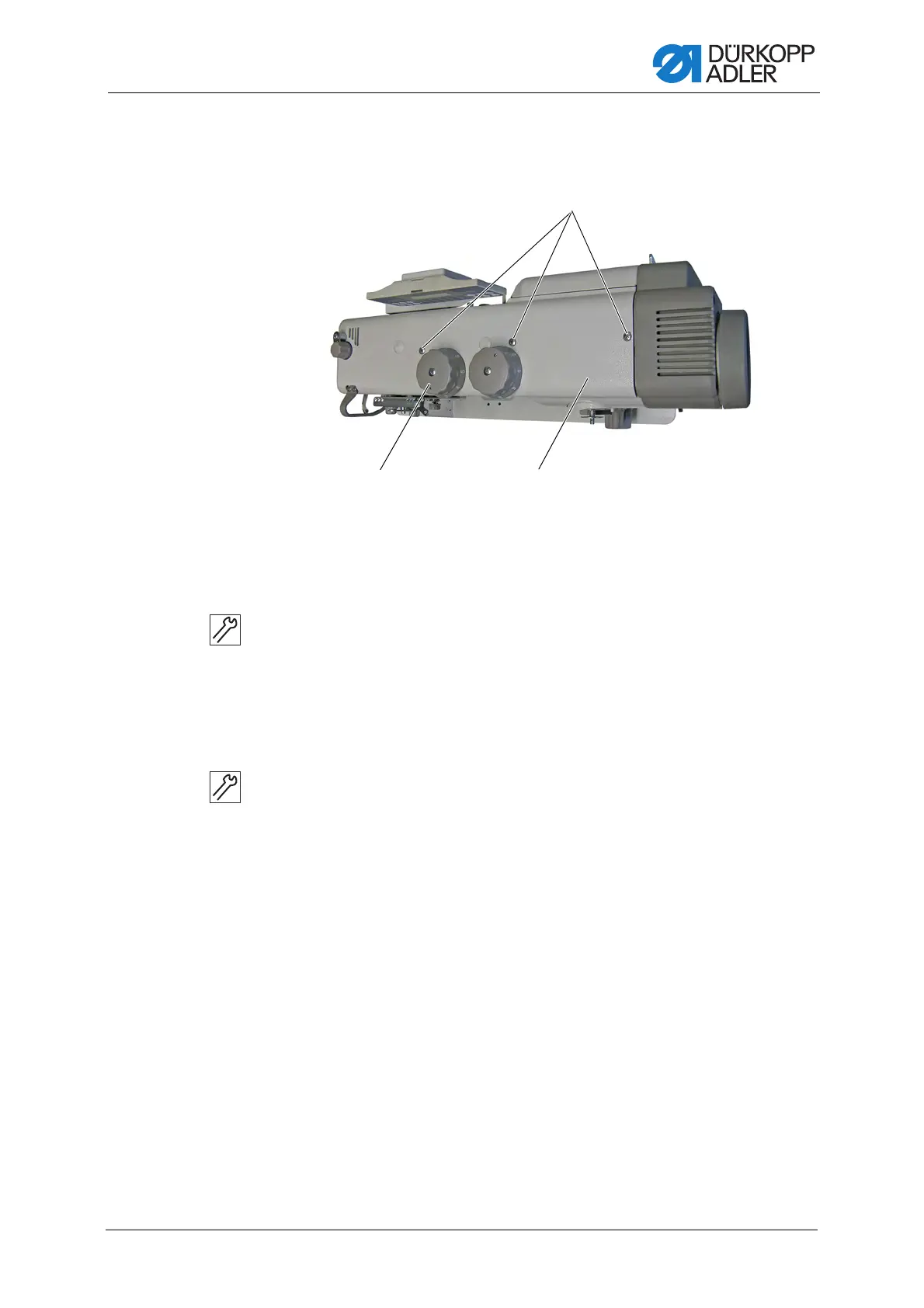

Fig. 2: Assembling and disassembling the arm cover
Disassembling the arm cover
To disassemble the arm cover:
1. Position the left adjusting wheel for the sewing foot stroke (2) to 2.
2. Loosen the screws (1).
3. Hold the arm cover (3) at the adjusting wheels and remove it.
Assembling the arm cover
To assemble the arm cover:
1. Position the left adjusting wheel for the sewing foot stroke (2) to 2.
2. Assemble the arm cover (3).
3. Tighten the screws (1).
(1) - Screws
(2) - left adjusting wheel for sewing foot
stroke
(3) - Arm cover
①
②③

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
