DURKOPP ADLER 867 Service Manual

Machines with integrated motor
Service Instructions 867 - 04.0 - 10/2019 87
19 Machines with integrated motor
19.1 Overview of the components

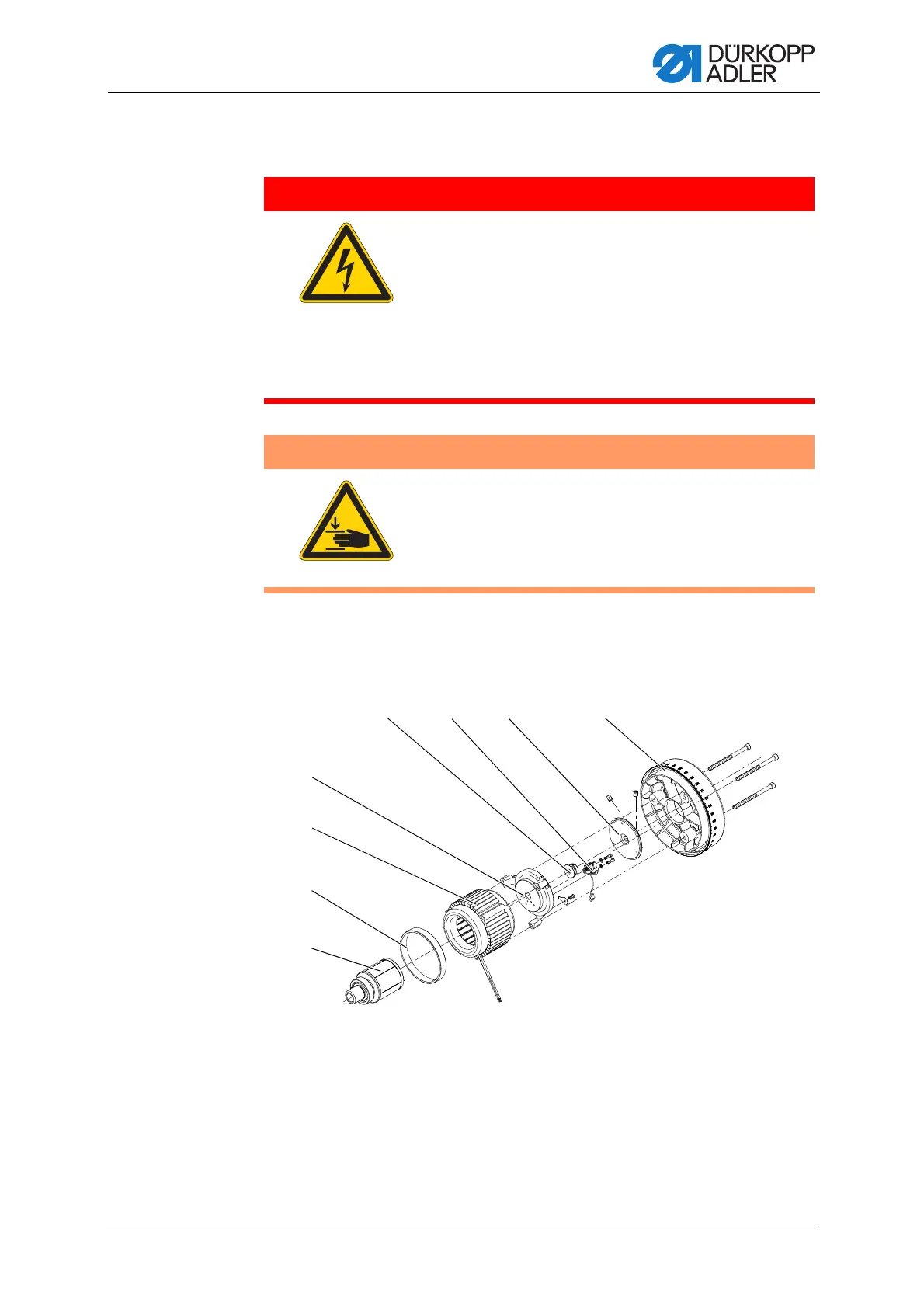

Fig. 72: Overview of the components
DANGER
Risk of injury from electricity!
Unprotected contact with electricity can result in
serious injuries or death.
Work on the electrical system must ONLY be
carried out by qualified electricians or appropriately
trained and authorized personnel.
ALWAYS pull the power plug before working on
the electrical equipment.
WARNING
Risk of injury from moving parts!
Crushing possible.
The machine may only be disassembled and
assembled by trained specialists.
(1) - Handwheel
(2) - Handwheel flange
(3) - Encoder
(4) - Encoder disk
(5) - Cover plate
(6) - Stator
(7) - Ring
(8) - Rotor
①②③④
⑤
⑥
⑦
⑧

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
