DURKOPP ADLER 867 Service Manual

Winder
68 Service Instructions 867 - 04.0 - 10/2019
14.3 Adjusting the hook thread guide

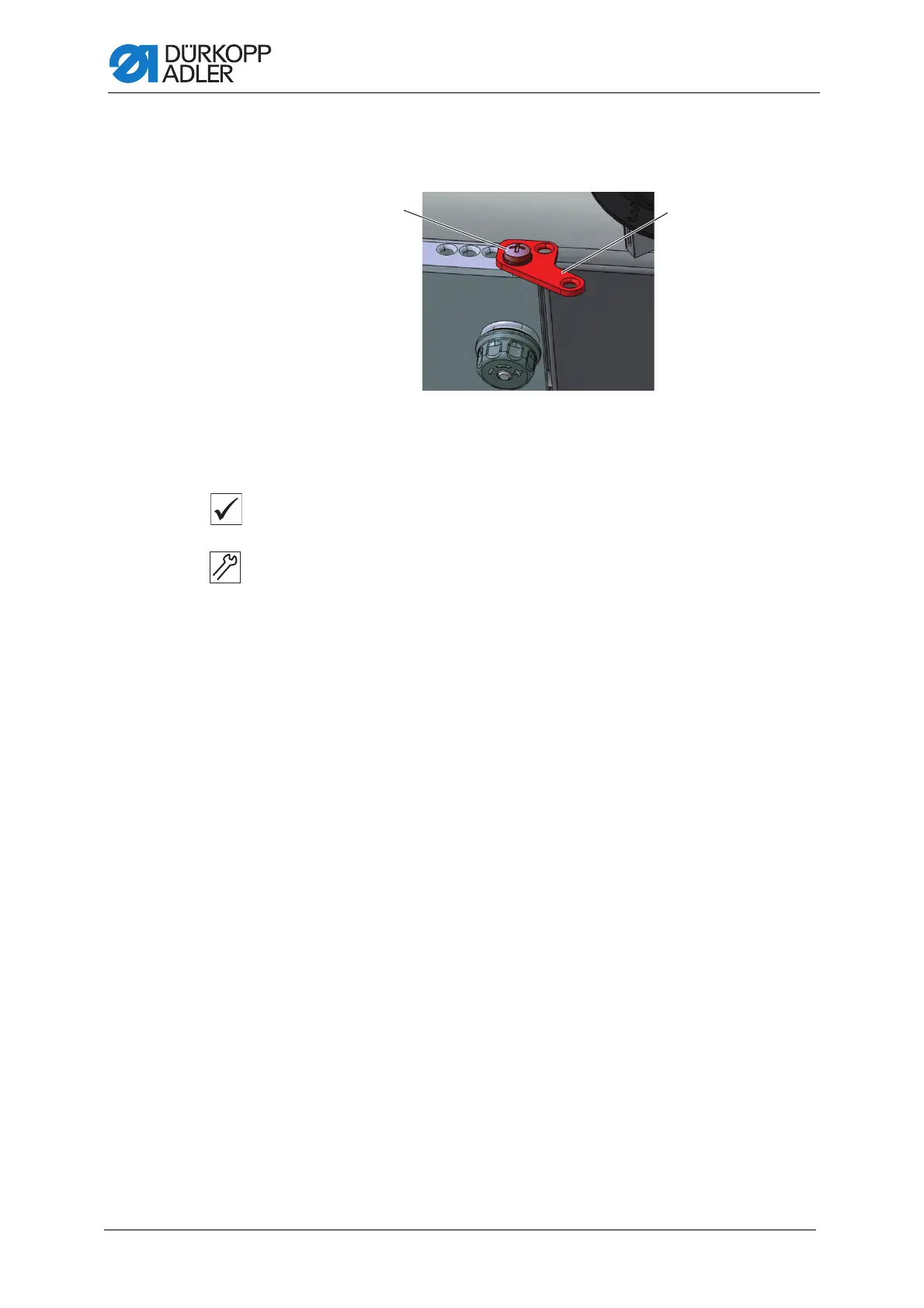

Fig. 55: Adjusting the hook thread guide
The position of the hook thread guide determines how the hook thread is
wound onto the bobbin.
Proper setting
The hook thread is wound on evenly over the entire width of the bobbin.
To adjust the bobbin thread guide:
1. Loosen the screw (1).
2. Turn the hook thread guide (2):
• To the front: The hook thread will be wound on further to the front
• To the rear: The hook thread will be wound on further to the rear
(1) - Screw (2) - Hook thread guide
①②

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
