Positioning the arm shaft
26 Service Instructions 867 - 04.0 - 10/2019
5 Positioning the arm shaft
Proper setting
The threaded pins (3) on the arm shaft crank (1) are seated completely on
the flat.
The arm shaft crank (1) is flush with the machine casting (2).

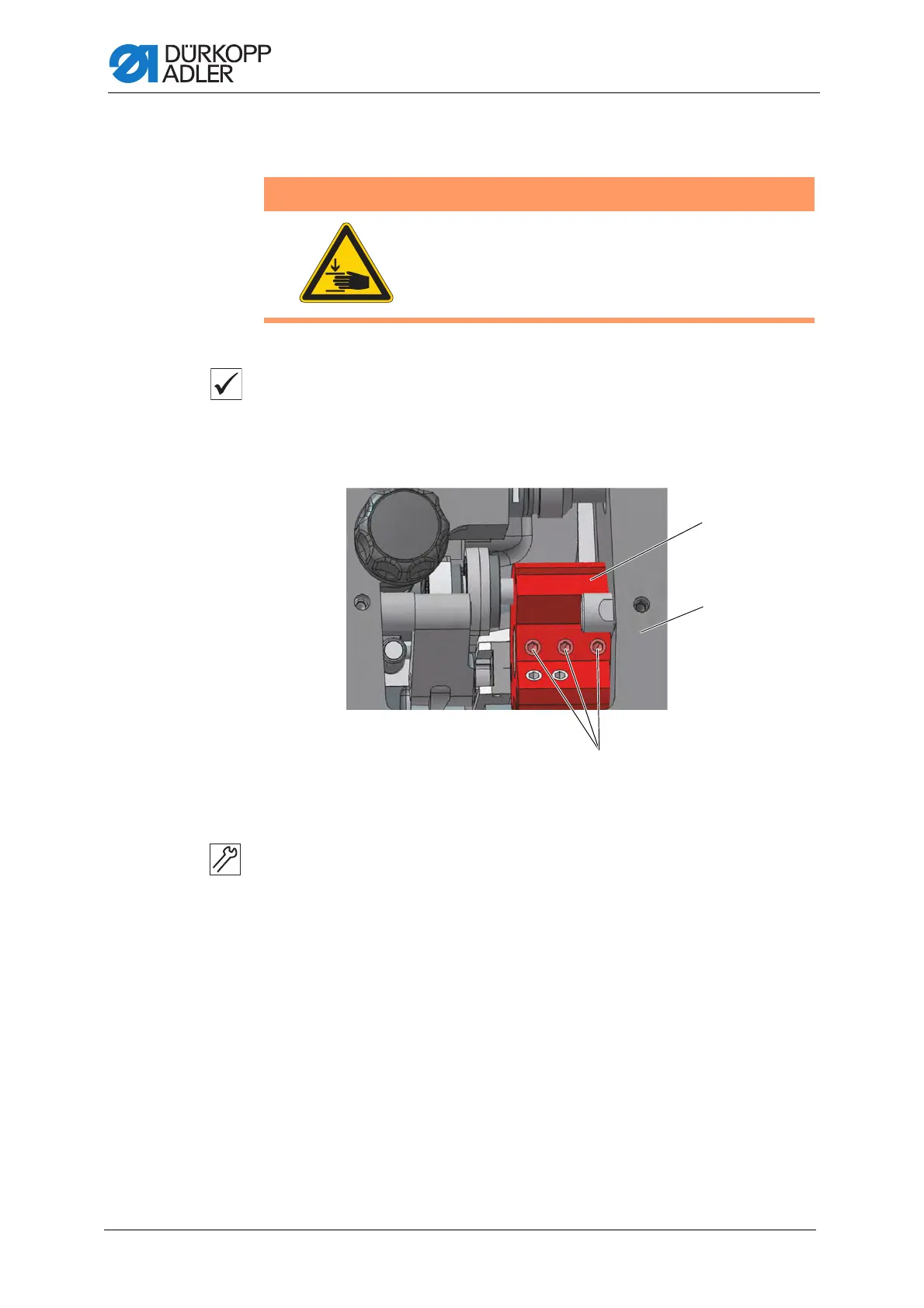

Fig. 13: Positioning the arm shaft
To position the arm shaft:
1. Disassemble the arm cover ( p. 15).
2. Loosen the threaded pins (3).
3. Turn the arm shaft crank (1) such that the threaded pins (3) are seated
completely on the flat of the arm shaft.
4. Push the arm shaft with the arm shaft crank (1) to the right as far as it
will go and flush with the machine casting.
5. Tighten the threaded pins (3).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before positioning the arm
shaft.
(1) - Arm shaft crank
(2) - Machine casting
(3) - Threaded pins
