DURKOPP ADLER 867 Service Manual

Machines with integrated motor
Service Instructions 867 - 04.0 - 10/2019 89
19.2.2 Disassembling the cover

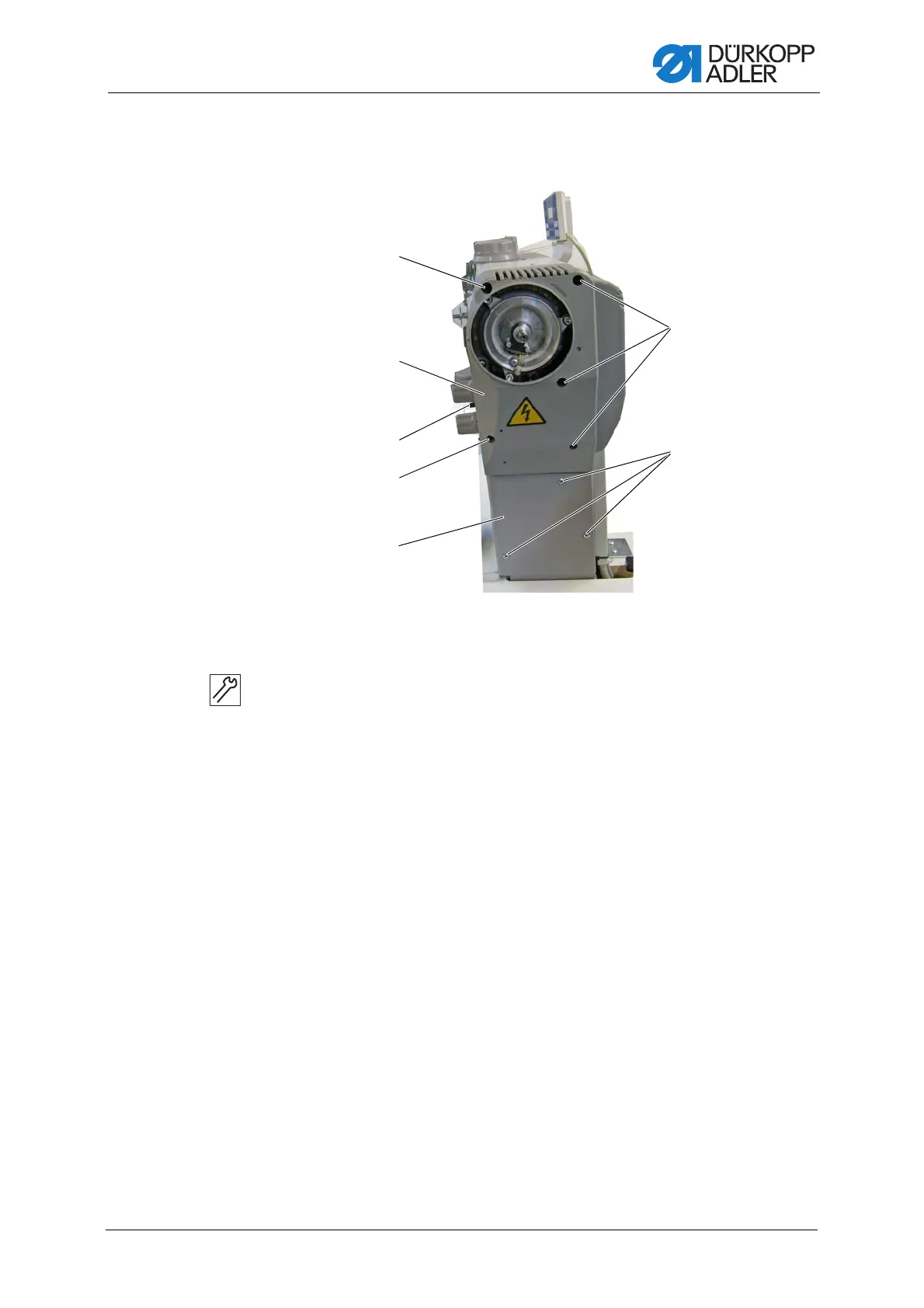

Fig. 74: Disassembling the cover
To disassemble the cover:
1. Loosen the screws (1).
2. Carefully remove the upper cover (2) from the side, paying attention
to the adjusting wheel (3) in doing so.
If there is a lower cover mounted:
3. Loosen the screws (5).
4. Remove the lower cover (4).
(1) - Screws
(2) - Upper cover
(3) - Adjusting wheel
(4) - Lower cover (depending on
machine)
(5) - Screws
①
⑤
①
②
①
③
④

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
