DURKOPP ADLER 867 Service Manual

Machines with integrated motor
Service Instructions 867 - 04.0 - 10/2019 95
19.3.3 Assembling the encoder

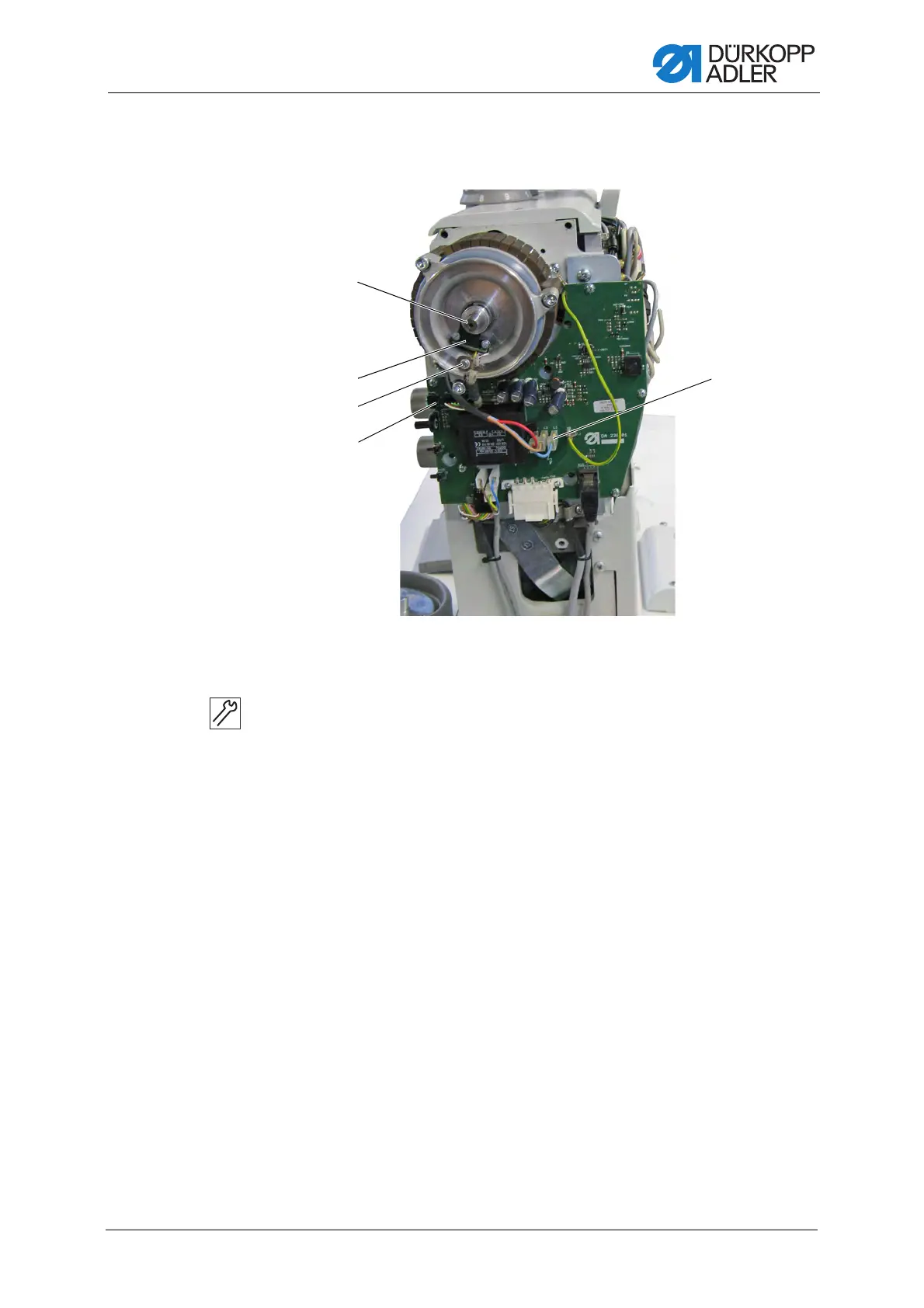

Fig. 80: Assembling the encoder
To assemble the encoder:
1. Push the encoder (2) and encoder disk (1) onto the shaft.
2. Align the encoder disk (1) such that it runs in the middle of
the encoder (2).
3. Screw the encoder disk (1) and encoder (2) firmly in place.
4. Tighten the plate (3).
5. Insert plugs L1, L2, and L3 (5).
6. Insert the encoder plug (4).
(1) - Encoder disk
(2) - Encoder
(3) - Plate
(4) - Encoder plug
(5) - Plugs L1, L2, L3
⑤
①
②
③
④

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
