12 Sewing Feet

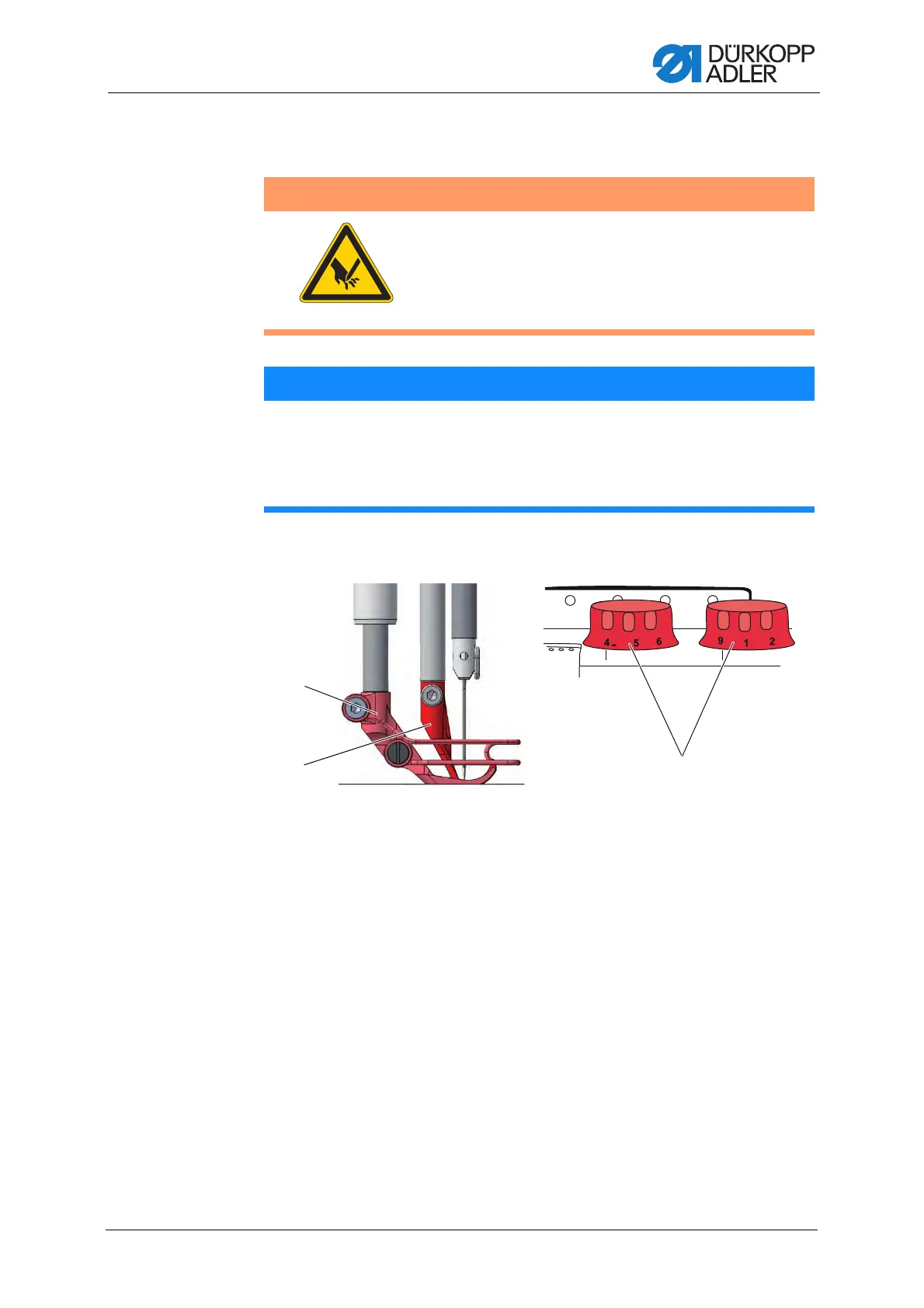

Fig. 41: Sewing Feet
The 2 adjusting wheels (3) on the machine arm determine how high
the presser foot (1) and walking foot (2) are raised when sewing.
The left adjusting wheel determines the normal sewing foot stroke.
The right adjusting wheel determines the increased sewing foot stroke.
The increased sewing foot stroke must NOT be lower than the normal
sewing foot stroke.
WARNING
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Switch off the machine before you adjust
the sewing feet.
NOTICE
Property damage may occur!
Machine can be damaged if the adjusting wheels are forced.
Do not attempt to use force to set a lower sewing foot stroke at
the right adjusting wheel.
(1) - Presser foot
(2) - Walking foot
(3) - Adjusting wheels for the sewing foot
stroke
