Feed dog
Service Instructions 867 - 04.0 - 10/2019 41
4. Turn the stroke eccentric (2) such that the upper edge of the feed dog
is in the upward movement and at the same height as the upper edge
of the throat plate.
5. Tighten the threaded pins (1).
8.3.2 Adjusting the compensating weight
Proper setting
Handwheel position 210°:
The threaded pin for the compensating weight is parallel to the base
plate.

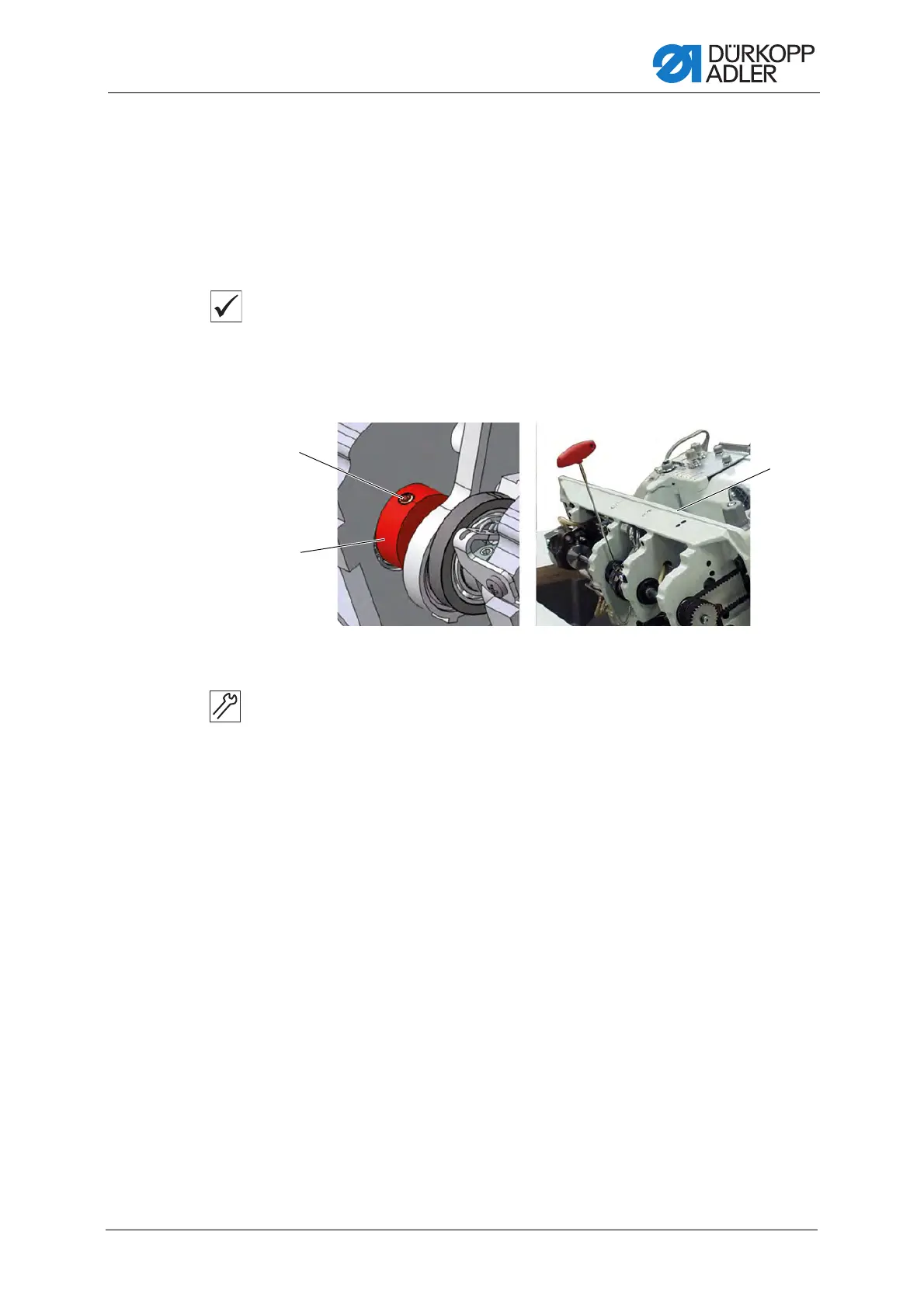

Fig. 26: Adjusting the compensating weight
To adjust the compensating weight:
1. Tilt the machine head ( p. 14).
2. Move the handwheel into the 210° position.
3. Unscrew the threaded pin (1) and leave the allen key inserted in
the threaded pin.
4. Turn the compensating weight (2) such that the threaded pin (1) is
parallel to the base plate (3).
Use the allen key inserted in the threaded pin as a means of orientation.
5. Tighten the threaded pin (1).
(1) - Threaded pin
(2) - Compensating weight
(3) - Base plate
