Sewing Feet
Service Instructions 867 - 04.0 - 10/2019 61
12.4 Adjusting the sewing foot lifting height
When the pedal is pressed back halfway, the sewing feet can be raised
during sewing, e. g. to move the sewing material.
When the pedal is pressed completely back, the sewing feet will be raised
after the thread is cut so that the sewing material can be exchanged.
Proper setting
The distance between the raised sewing feet and the throat plate is preset
to 25 mm on delivery.

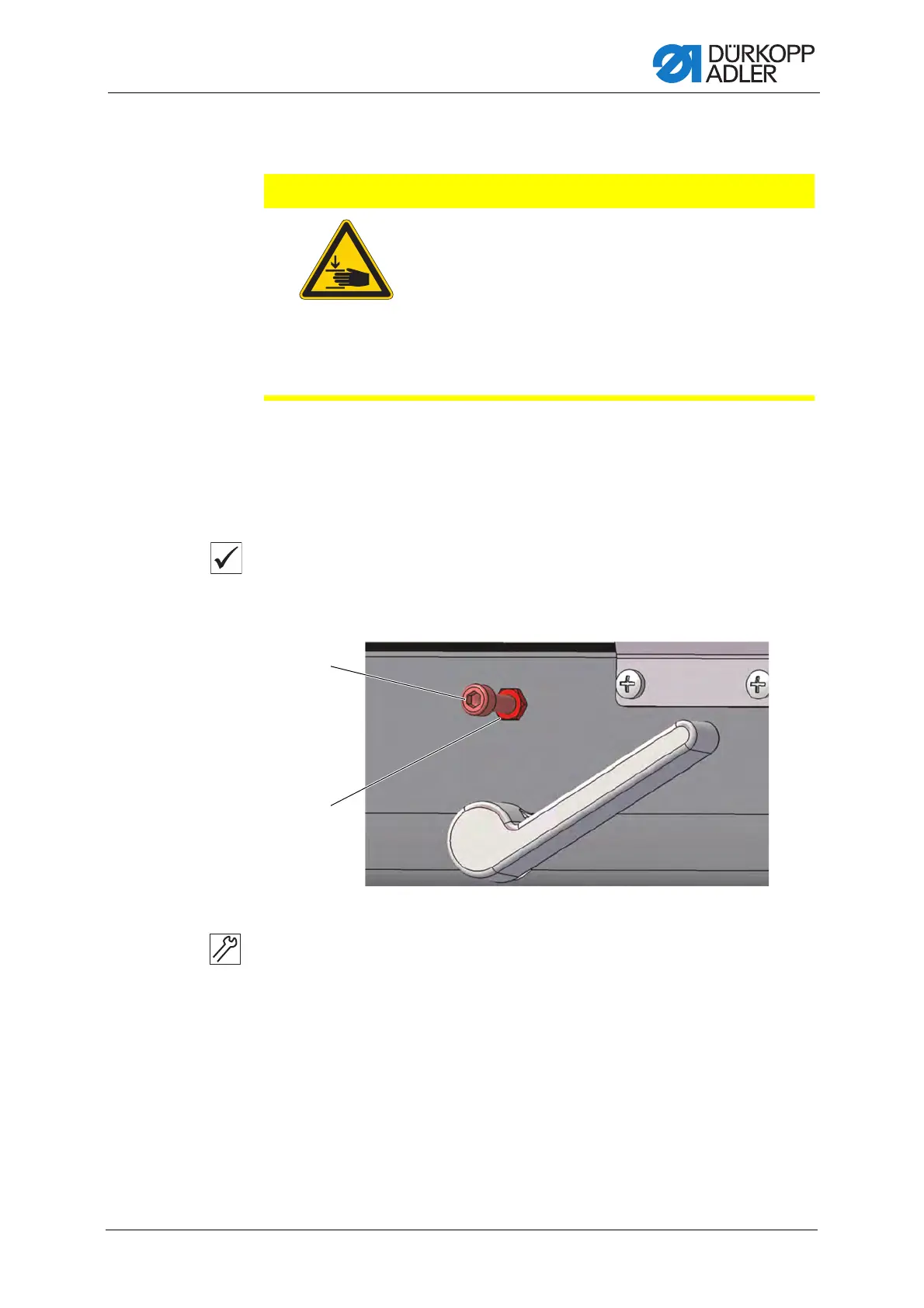

Fig. 46: Adjusting the sewing foot lifting height
To adjust the lifting height of the sewing foot:
1. Loosen the counternut (2).
2. Turn the screw (1) to adjust the distance between the raised sewing
feet and the throat plate:
• Raise the sewing feet to a lesser height: turn clockwise
• Raise the sewing feet higher: turn counterclockwise
3. Tighten the counternut (2).
CAUTION
Risk of injury from moving parts!
Crushing possible.
The machine must remain switched on so that
the sewing feet can be raised.
Exercise particular caution when adjusting
the sewing foot lifting height.
Do NOT place your hands under the sewing feet
when they are being lowered.
(1) - Screw (2) - Counternut
