DURKOPP ADLER 867 Service Manual

Machines with integrated motor
90 Service Instructions 867 - 04.0 - 10/2019
19.2.3 Disassembling the encoder

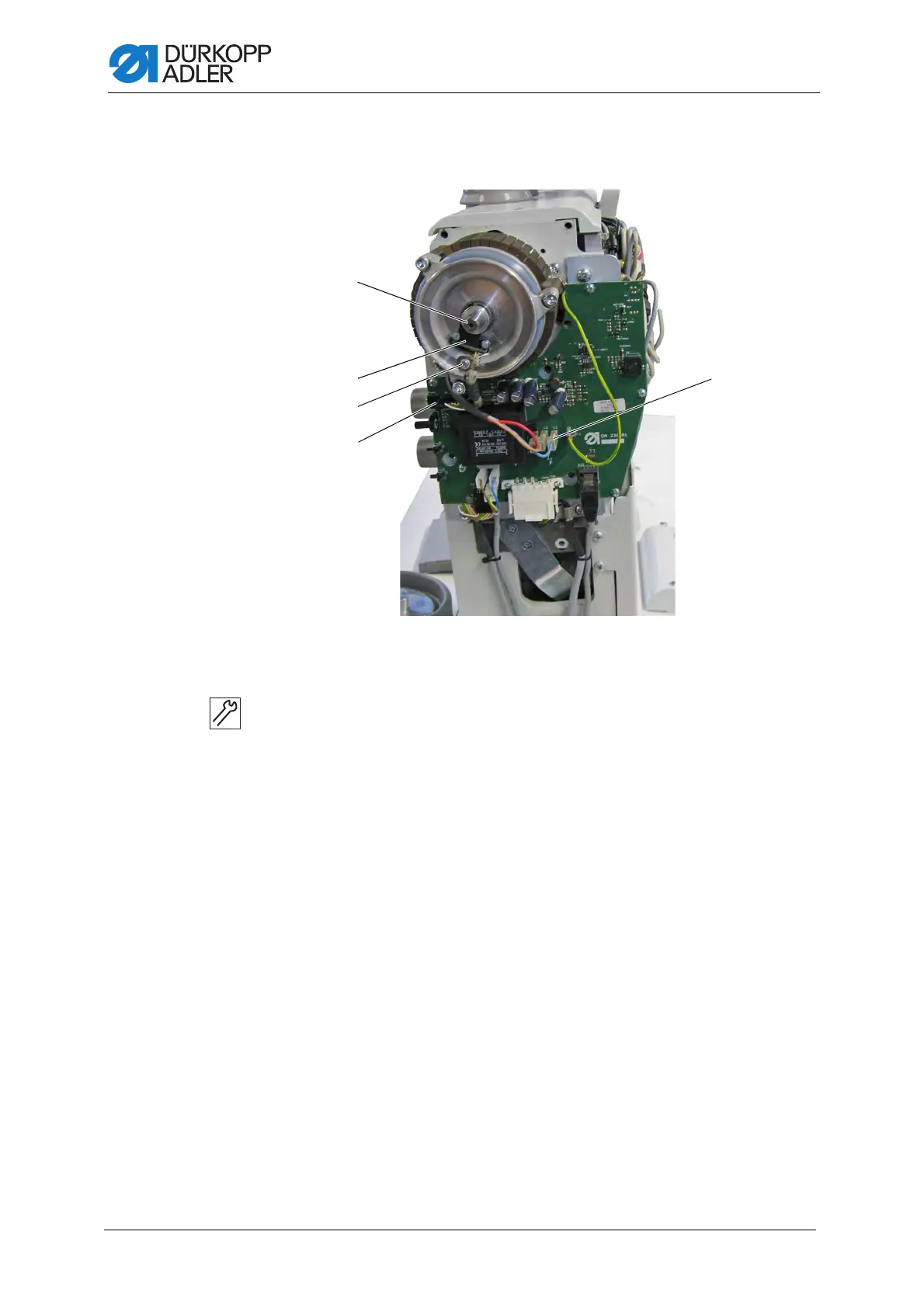

Fig. 75: Disassembling the encoder
To disassemble the encoder:
1. Disconnect plugs L1, L2, and L3 (5).
2. Disconnect the encoder plug (4).
3. Unscrew the plate (3).
4. Loosen the screws on the encoder (2).
5. Loosen the screw on the encoder disk (1).
6. Carefully and uniformly pull the encoder (2) and encoder disk (1) away
from the shaft.
(1) - Encoder disk
(2) - Encoder
(3) - Plate
(4) - Encoder plug
(5) - Plugs L1, L2, L3
⑤
①
②
③
④

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
