3.3.7 Assembling and disassembling the feed dog

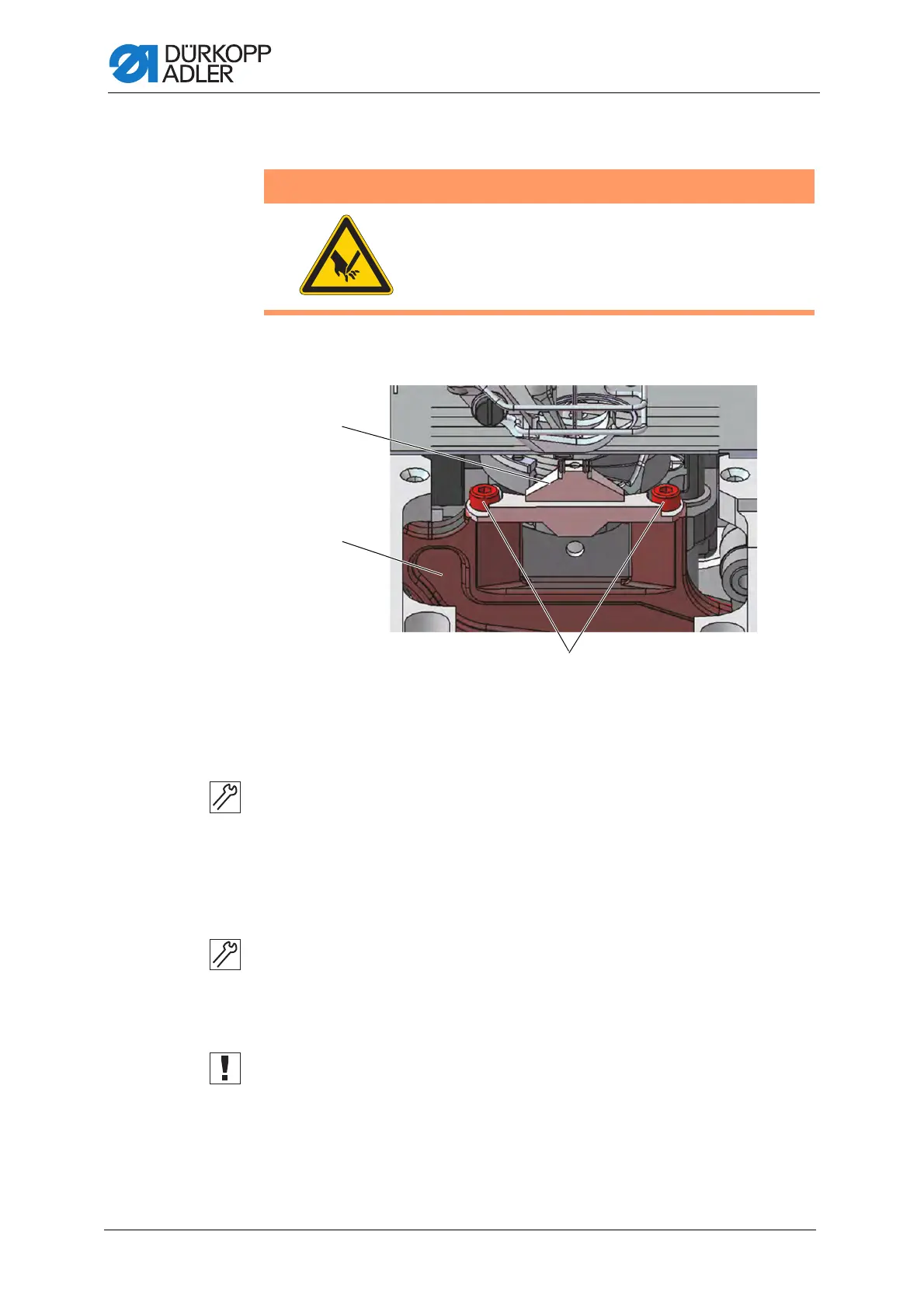

Fig. 7: Assembling and disassembling the feed dog
Disassembling the feed dog
To disassemble the feed dog:
1. Disassemble the throat plate ( p. 19).
2. Loosen the screws (3).
3. Remove the feed dog (1) from the feed dog carrier (2).
Assembling the feed dog
To assemble the feed dog:
1. Place the feed dog (1) onto the feed dog carrier (2).
2. Tighten the screws (3).
3. Assemble the throat plate ( p. 19).
Important
Check the feed dog position in its movement at maximum stitch length
(depending on the equipment: 6, 9 or 12) by turning the handwheel.
The feed dog must not hit against the throat plate.
WARNING
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Switch off the machine before you assemble or
disassemble the feed dog.
(1) - Feed dog
(2) - Feed dog carrier
(3) - Screws
