DURKOPP ADLER 867 - Assembling the Cover

Machines with integrated motor
96 Service Instructions 867 - 04.0 - 10/2019
19.3.4 Assembling the cover

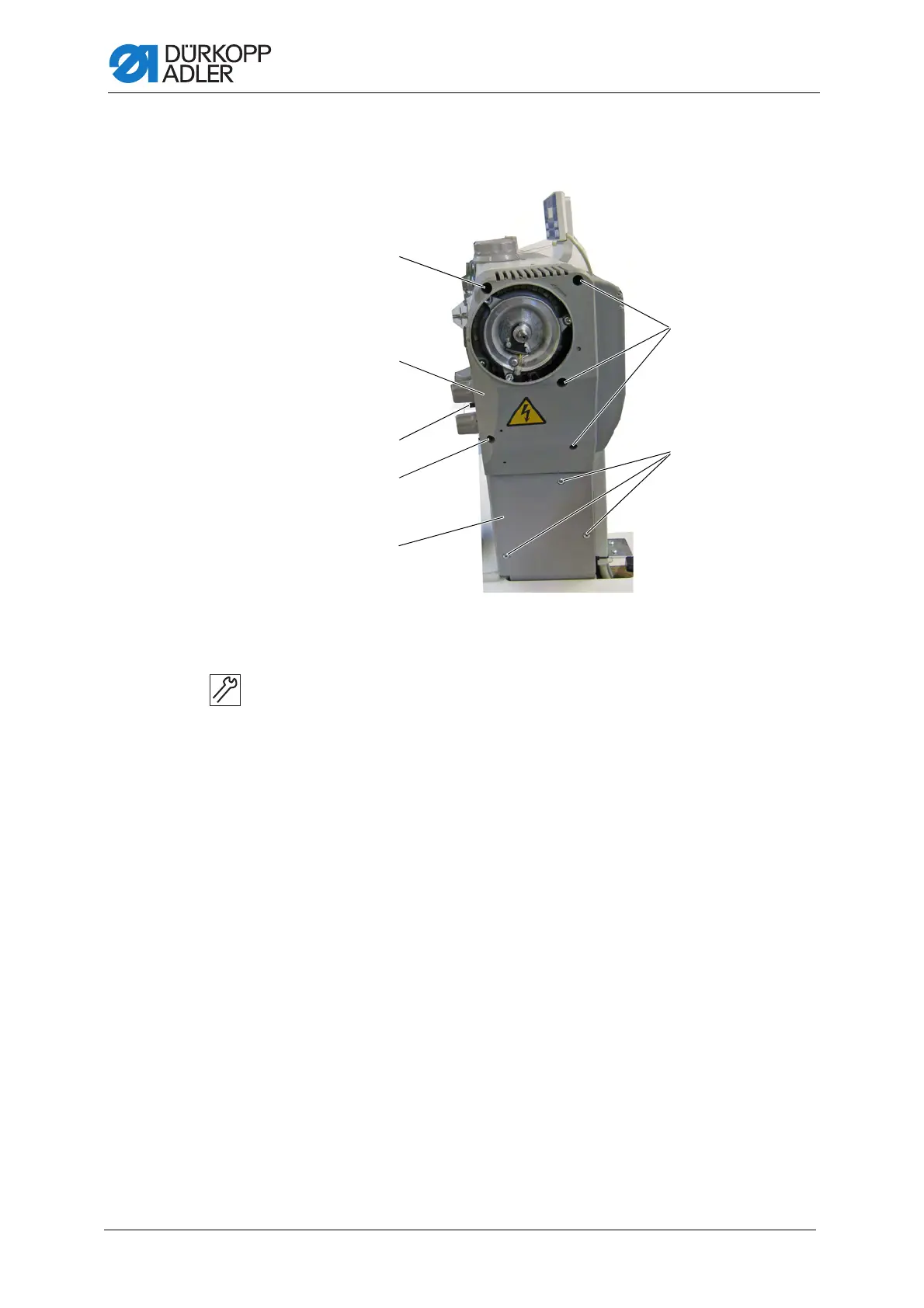

Fig. 81: Assembling the cover
To assemble the cover:
1. Carefully attach the upper cover (2) from the side.
Pay attention to the adjusting wheel (3) in doing so.
2. Tighten the screws (1).
3. Attach the lower cover (5).
4. Tighten the screws (4).
(1) - Screws
(2) - upper cover
(3) - Adjusting wheel
(4) - lower cover (depending on
machine)
(5) - Screws
①
⑤
①
②
①
③
④
