DURKOPP ADLER 867 Service Manual

Feed dog
36 Service Instructions 867 - 04.0 - 10/2019
8.1.1 Moving the feed dog

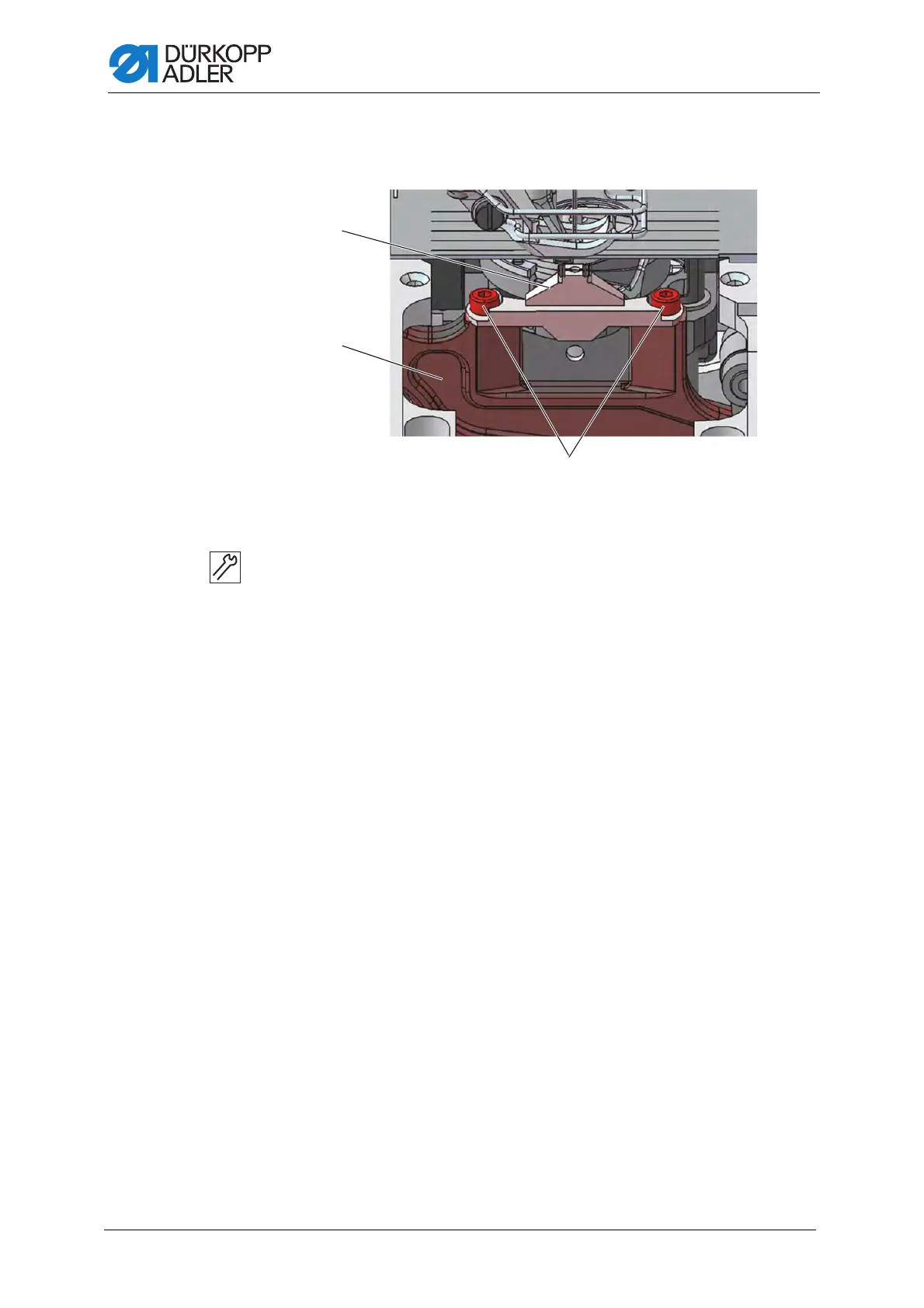

Fig. 21: Moving the feed dog
To move the feed dog:
1. Disassemble the throat plate ( p. 19).
2. Loosen the screws (3).
3. Move the feed dog (1) on the feed dog carrier (2).
Place the removed throat plate next to it as an aid for orientation,
so that the feed dog can be screwed on straight.
4. Tighten the screws (3).
(1) - Feed dog
(2) - Feed dog carrier
(3) - Screws
③
①
②

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
