Adjusting the handwheel scale
Service Instructions 867 - 04.0 - 10/2019 25
4 Adjusting the handwheel scale
Proper setting
1. Lock the machine in place at position 2 ( p. 22).
The handwheel is at position 0°.
If a different degree number is next to the marking (2) then you will
have to reset the graduated scale.

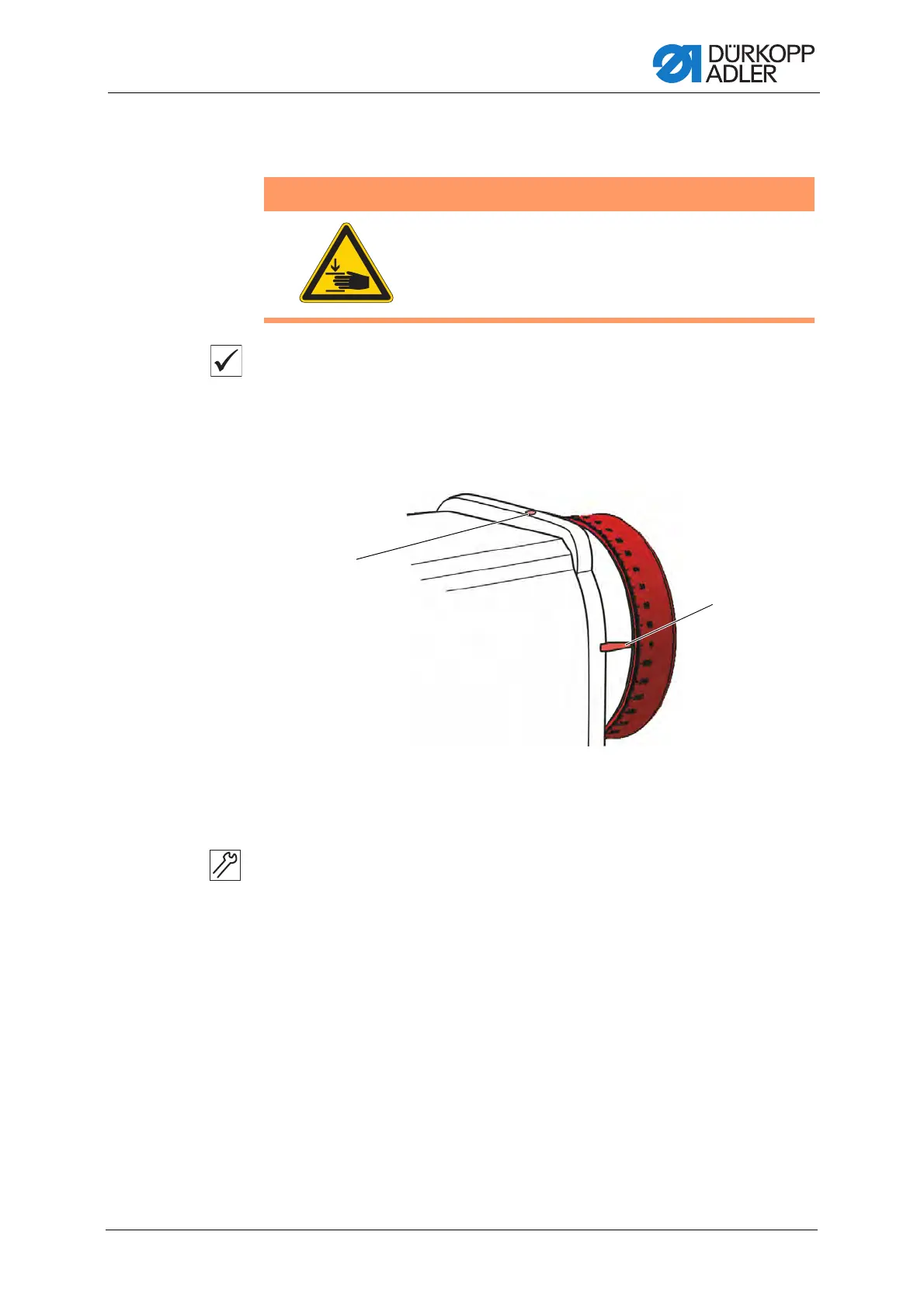

Fig. 12: Adjusting the handwheel scale
The handwheel is fastened using 2 threaded pins, which you can see
through the slot (1).
To adjust the handwheel scale:
1. Turn the handwheel until the 1
st
threaded pin is under the slot (1).
2. Loosen the threaded pin through the opening (1).
3. Turn the handwheel by 50° such that the 2
nd
threaded pin is under
the slot (1).
4. Loosen the threaded pin through the opening (1).
5. Lock the machine in place at position 2 ( p. 22).
6. Turn the handwheel scale so that the 0° is at the center of the
marking (2).
7. Tighten the threaded pin through the opening (1).
8. Remove the lock ( p. 23).
9. Move the handwheel into the 50° position.
10. Tighten the threaded pin through the opening (1).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you adjust the
handwheel scale.
(1) - Slot (2) - Marking
