DURKOPP ADLER 867 Service Manual

Working basis
Service Instructions 867 - 04.0 - 10/2019 23

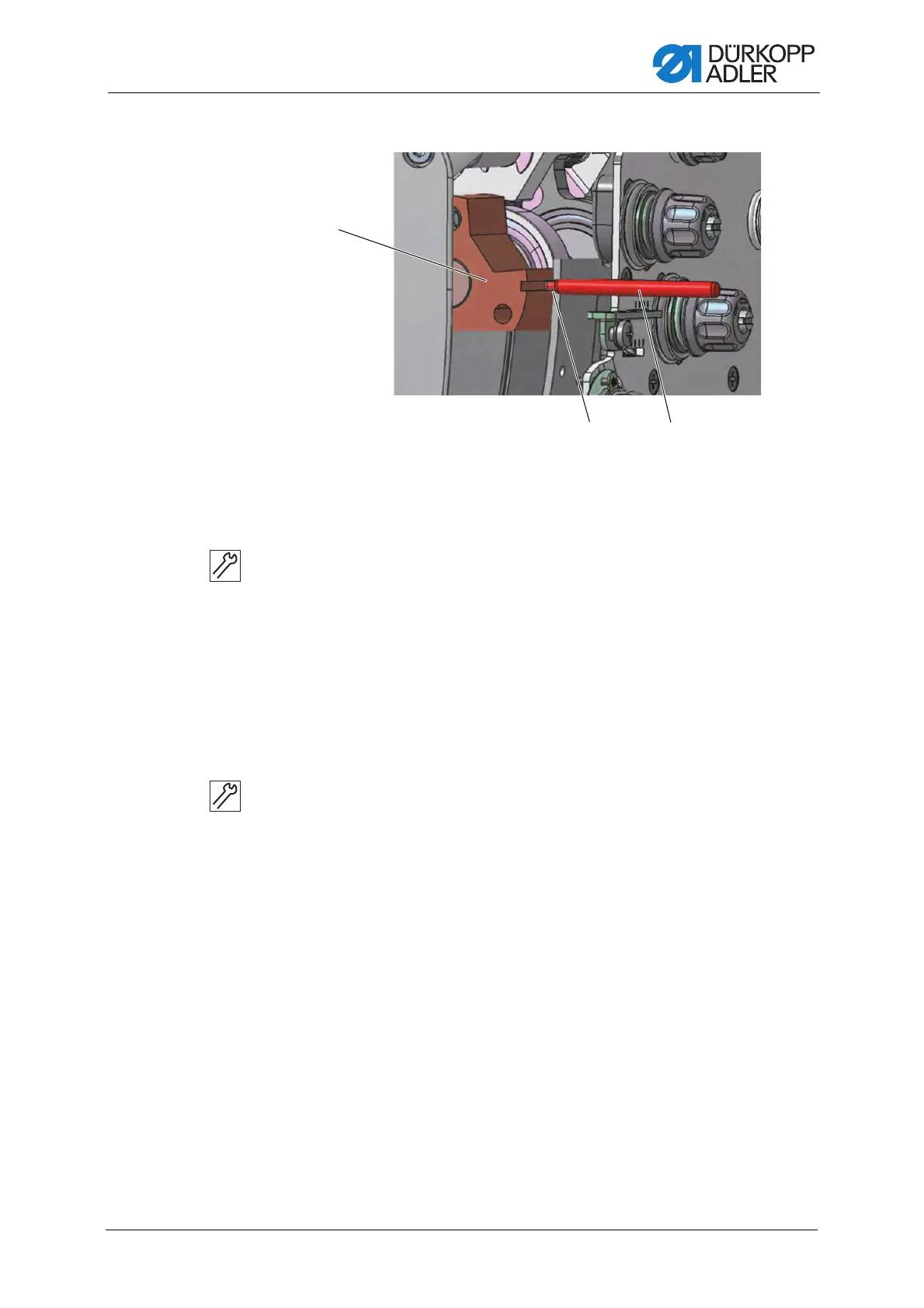

Fig. 10: Locking the machine in place (2)
Locking the machine in place
To lock the machine in place:
1. Remove the plug from the locking slot (5).
2. Turn the handwheel until the appropriate slot is in front of the locking
opening (5):
• Small slot at handwheel position 0°
• Large slot at handwheel position 200 – 205°
3. Insert the locking peg (1) with the appropriate end into the slot.
Removing the lock
To remove the lock:
1. Pull the locking peg (1) out of the slot.
2. Insert the plug into the locking opening (5).
(1) - Locking peg
(4) - Arm shaft crank
(5) - Locking opening
④
⑤①

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
