DURKOPP ADLER 867 Service Manual

Winder
64 Service Instructions 867 - 04.0 - 10/2019
14 Winder
14.1 Adjusting the winder wheel and the driver wheel (long
arm machines)

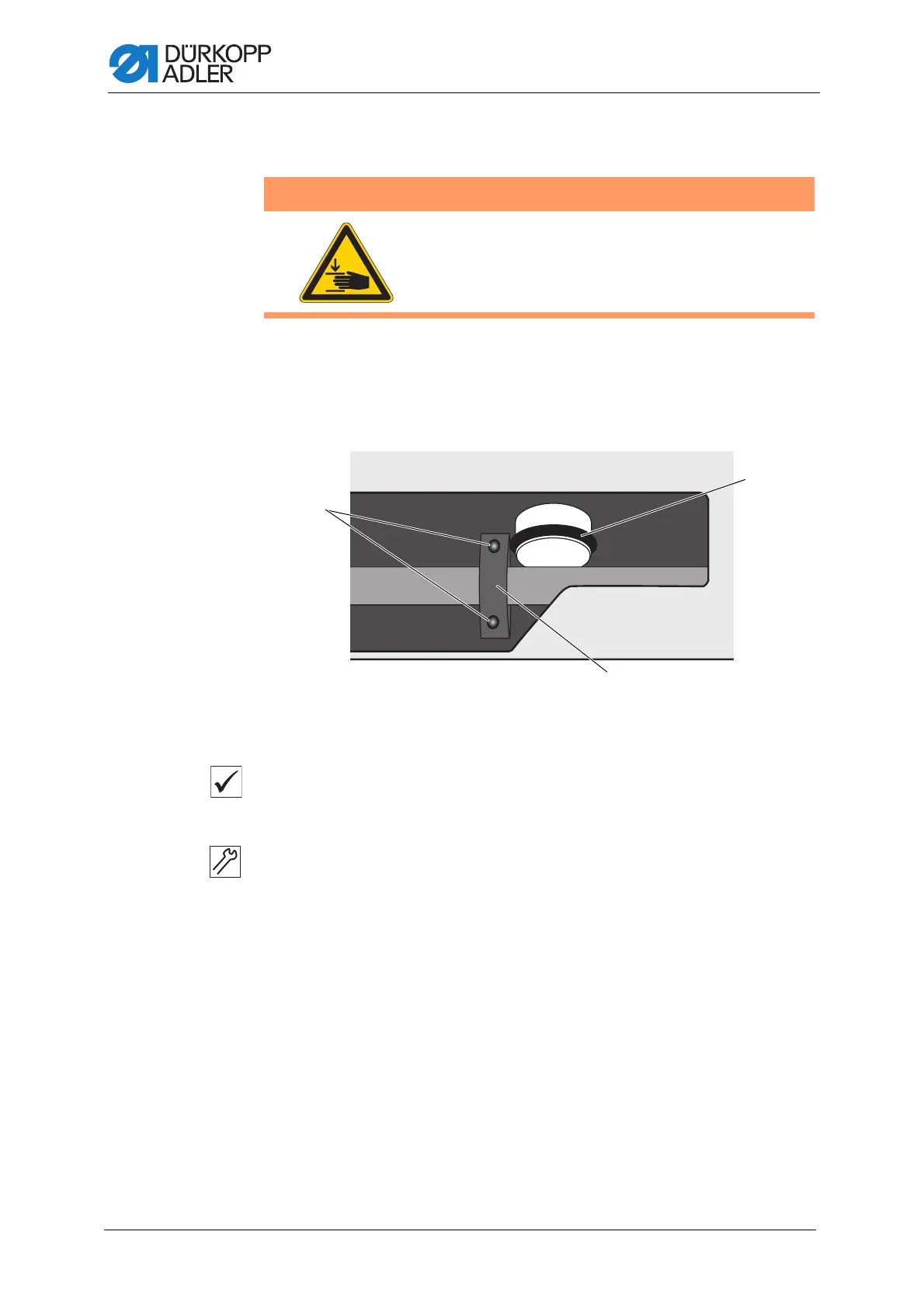

Fig. 49: Adjusting the winder wheel and the driver wheel
Proper setting
The distance between the winder wheel and the driver wheel is 0.8 mm.
To adjust the winder wheel and driver wheel:
1. Disassemble the arm cover ( p. 15).
1. Loosen the threaded pins (1).
2. Move the driver wheel (2) to the right or left so that the distance to
the winder wheel (3) is exactly 0.8 mm.
3. Tighten the threaded pins (1).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before adjusting the winder.
(1) - Threaded pins
(2) - Driver wheel
(3) - Winder wheel
①
②
③

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
