DURKOPP ADLER 867 - Opening and Closing the Throat Plate Slides

Working basis
18 Service Instructions 867 - 04.0 - 10/2019
3.3.5 Opening and closing the throat plate slides

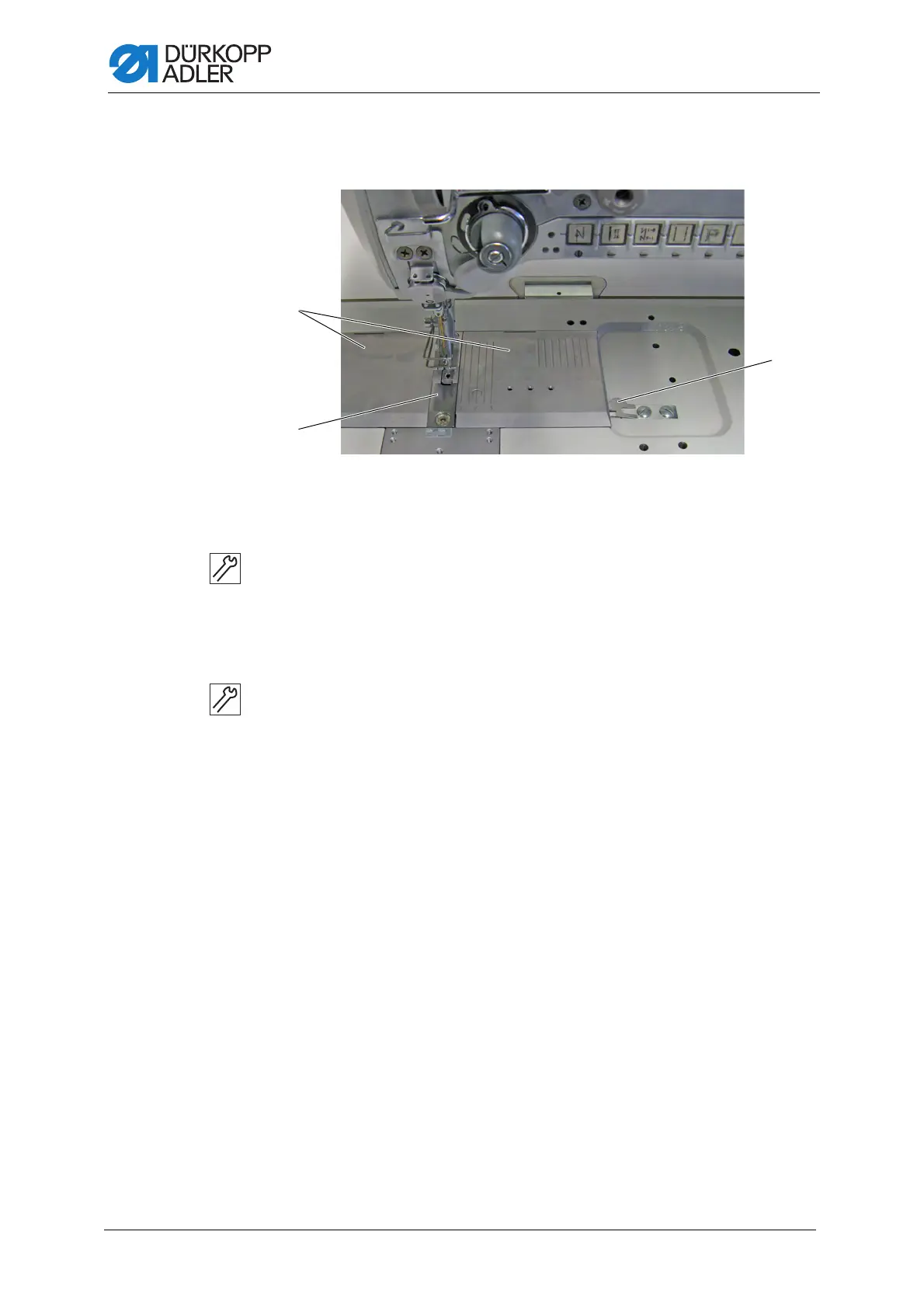

Fig. 5: Opening and closing the throat plate slides
Opening the throat plate slides
To open the throat plate slides:
1. Press the clamping spring (3) downwards.
2. Push the throat plate slides (1) apart.
Closing the throat plate slides
To close the throat plate slides:
1. Push the throat plate slides (1) up to the throat plate (2).
(1) - Throat plate slide
(2) - Throat plate
(3) - Clamping spring
