DURKOPP ADLER 867 Service Manual

Machines with integrated motor
88 Service Instructions 867 - 04.0 - 10/2019
19.2 Disassembling the drive
19.2.1 Disassembling the handwheel and handwheel flange

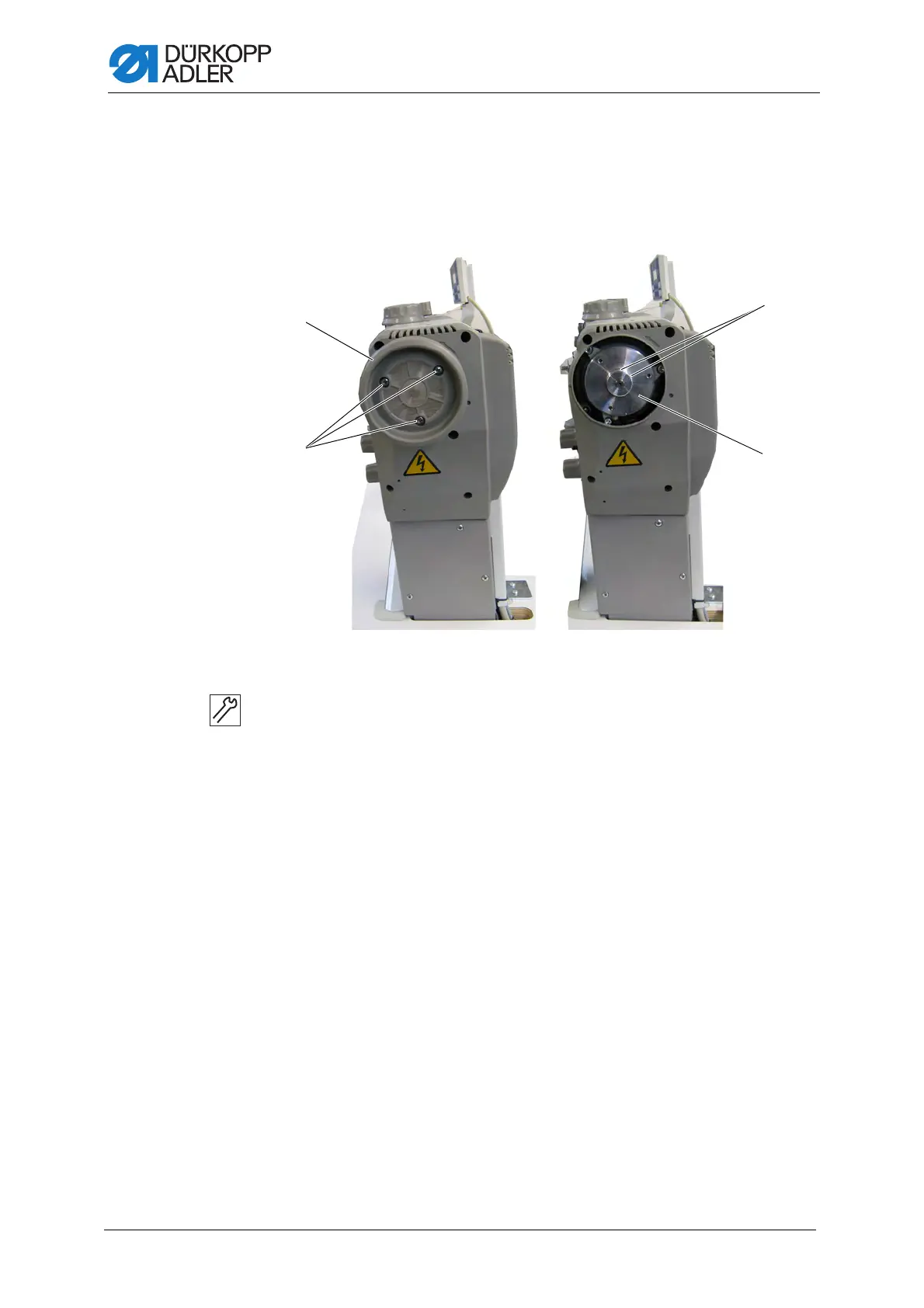

Fig. 73: Disassembling the handwheel and handwheel flange
To disassemble the handwheel and handwheel flange:
1. Loosen the screws (2).
2. Disassemble the handwheel (1).
3. Loosen the threaded pins (3).
4. Disassemble the handwheel flange (4).
(1) - Handwheel
(2) - Screws
(3) - Handwheel flange
(4) - Threaded pins
①
②
④
③

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
