DURKOPP ADLER 867 Service Manual

Machines with integrated motor
92 Service Instructions 867 - 04.0 - 10/2019
19.2.5 Disassembling the rotor

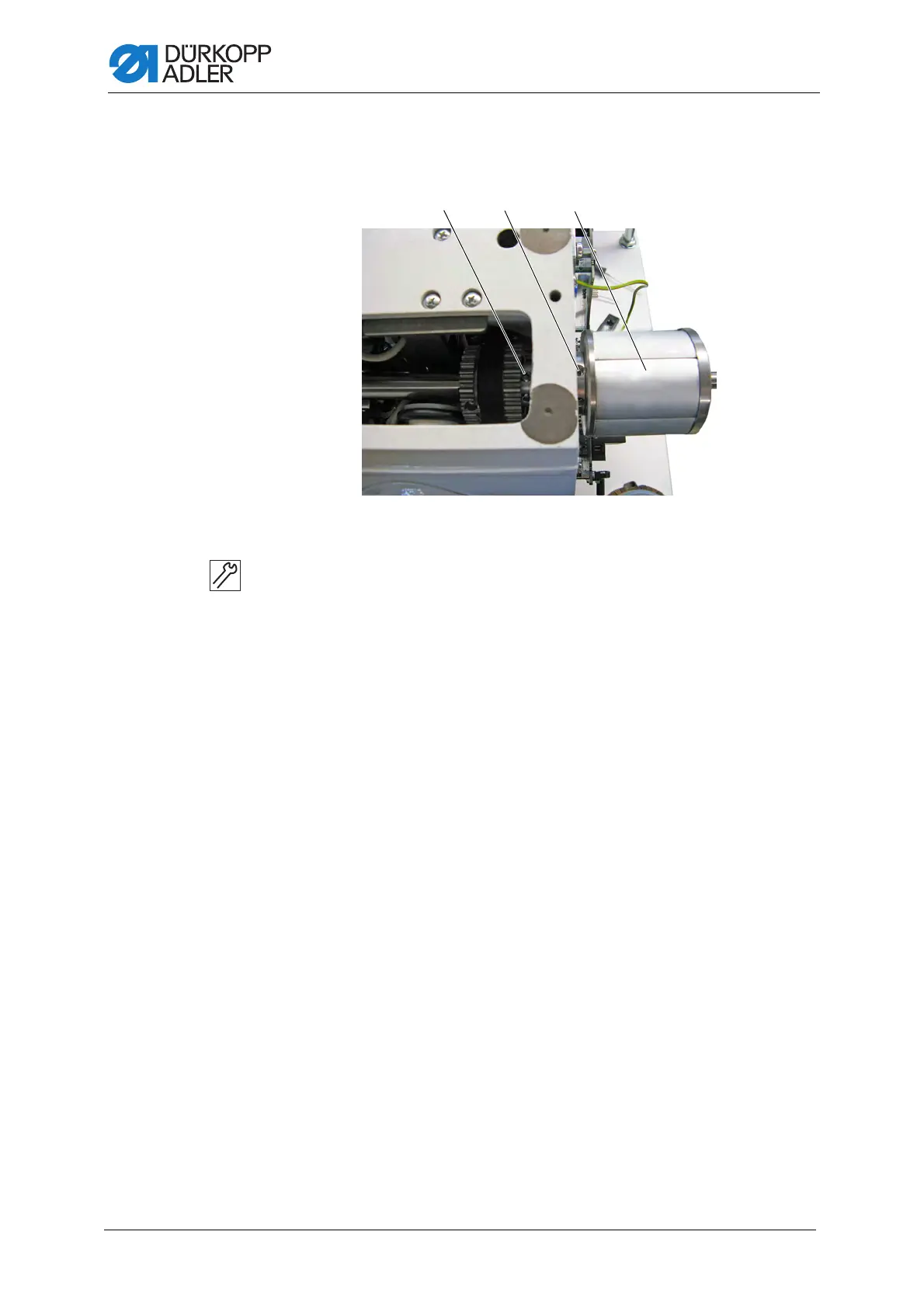

Fig. 77: Disassembling the rotor
To disassemble the rotor:
1. Disassemble the arm cover ( p. 15).
2. Loosen threaded pins (1) and (2).
3. Remove the rotor with deep groove ball bearing (3).
(1) - Threaded pins
(2) - Threaded pins
(3) - Rotor with deep groove ball bearing
①② ③

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
