DURKOPP ADLER 867 Service Manual

Working basis
Service Instructions 867 - 04.0 - 10/2019 19
3.3.6 Assembling and disassembling the throat plate

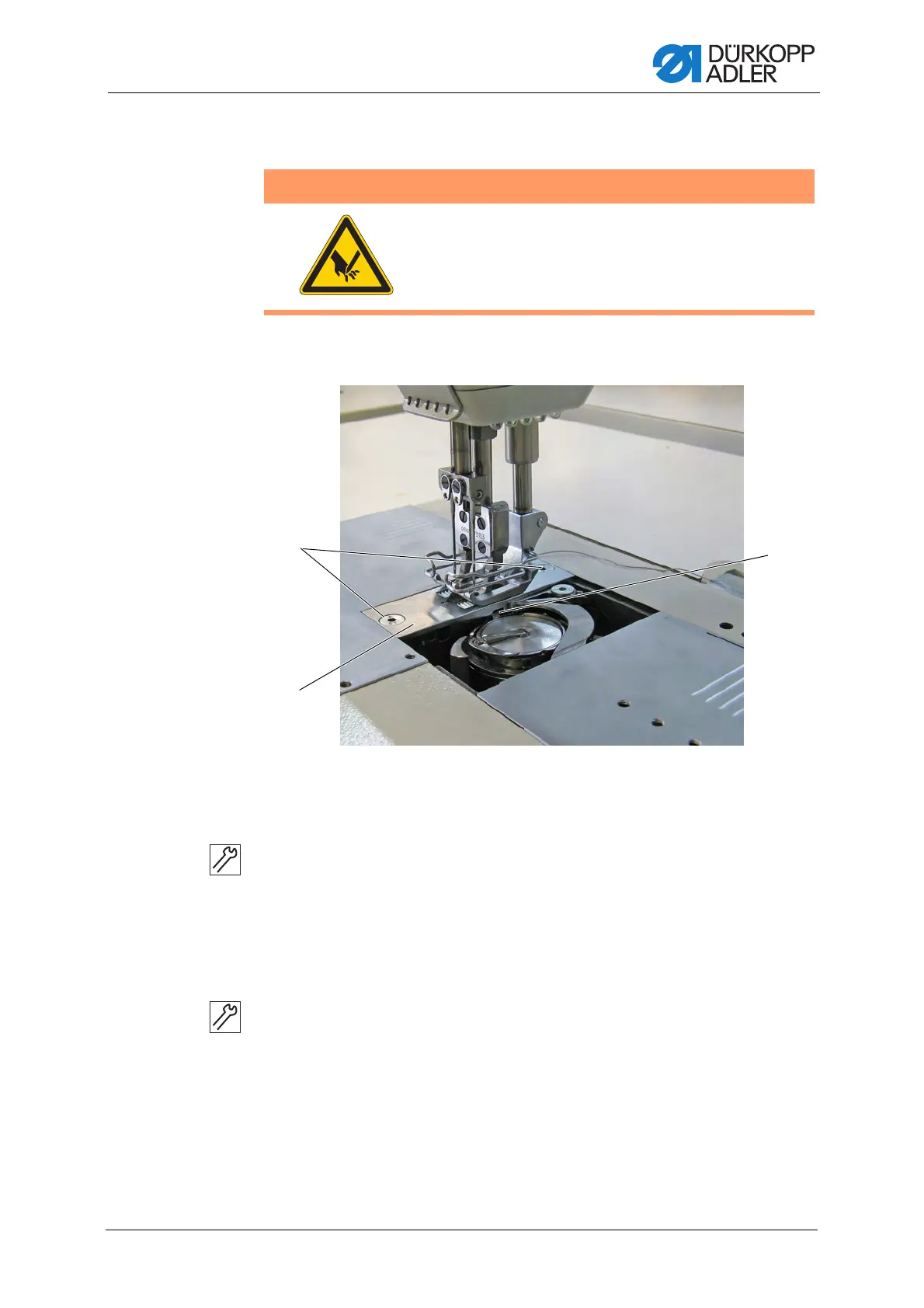

Fig. 6: Assembling and disassembling the throat plate
Disassembling the throat plate
To disassemble the throat plate:
1. Open the throat plate slides ( p. 18).
2. Loosen the screws (1).
3. Disassemble the throat plate (2).
Assembling the throat plate
To assemble the throat plate:
1. Insert the throat plate (2).
Ensure that the nose of the bobbin case (3) is in the cutout of the throat
plate.
2. Tighten the screws (1).
3. Close the throat plate slides ( p. 18).
WARNING
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Switch off the machine before you assemble or
disassemble the throat plate.
(1) - Screws
(2) - Throat plate
(3) - Nose of the bobbin case
③
①
②

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
