DURKOPP ADLER 867 Service Manual

Short thread cutter (KFA)
Service Instructions 867 - 04.0 - 10/2019 77
16.2 Adjusting the locking latch

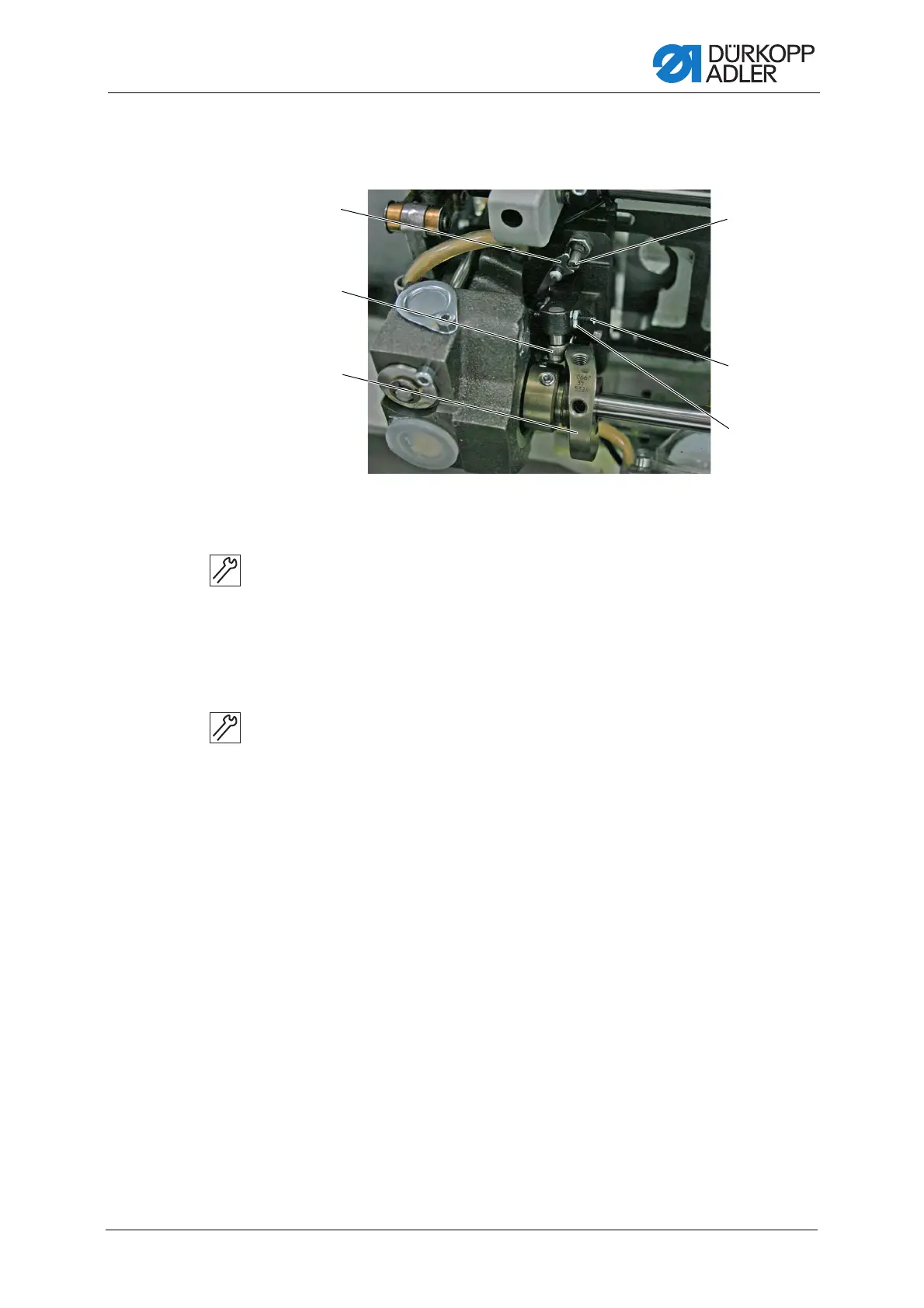

Fig. 63: Adjusting the locking latch
To adjust the locking latch:
1. Loosen the nut (4).
2. Turn the screw (5) and adjust the distance.
3. Tighten the nut (4).
Checking the adjustment of the locking latch
To check the setting of the locking latch:
1. Turn the handwheel until the roller (2) is at the highest point of
the control cam (3).
2. Press the roller (2) against the control cam (3).
 The locking latch (1) can be swung out without clamping.
The distance between the locking latch (1) and locking pin (6) is not
greater than 0.1 mm.
(1) - Locking latch
(2) - Roller
(3) - Control cam
(4) - Nut
(5) - Screw
(6) - Locking pin
④
⑤
⑥
①
②
③

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
