Short thread cutter (KFA)
76 Service Instructions 867 - 04.0 - 10/2019
Thread-pulling knife position
The thread-pulling knife (1) cannot be moved on the knife carrier (3).
Therefore, you will not have to adjust the cutting pressure after replacing
the thread-cutting knife (1).
The knife carrier (3) can be installed in 2 different positions: Large hook
and XXL hook. To do this, the knife carrier (3) is rotated by 180°.
In rest position, the thread-pulling knife (1) completely covers the cutting
edge of the counter blade (2). This prevents the needle thread from being
damaged.
The pivot range of the thread-pulling knife is 23°.

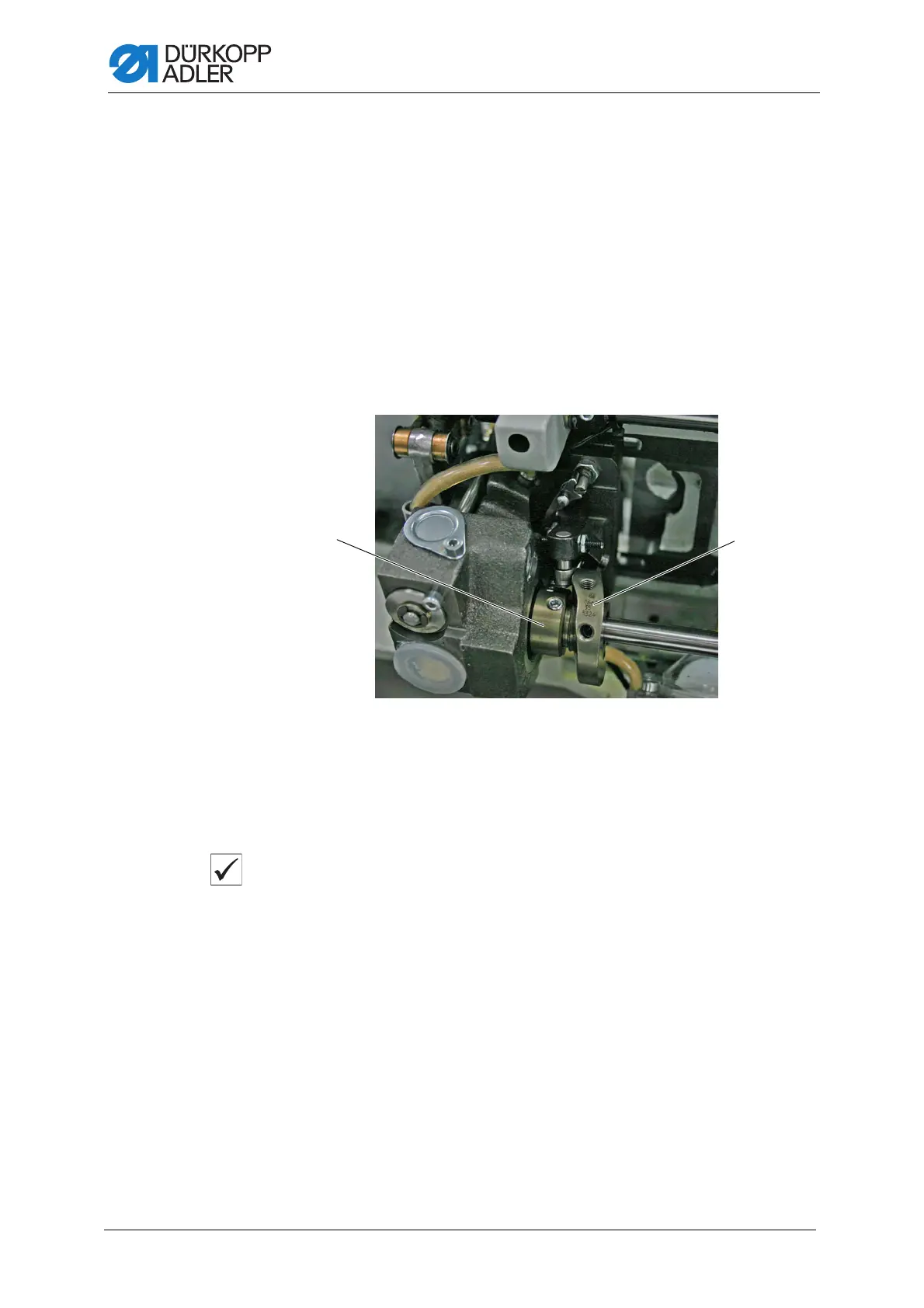

Fig. 62: General information (2)
The control cam (5) is designed for operating with the large hook and
the XXL hook.
The control cam (5) can be on the right-hand side (label is right side up)
or on the left side (label is upside down) of the set collar (4).
Proper setting
The control cam (5) makes contact with the set collar (4).
The label of the control cam (5) is correct in accordance with the installa-
tion situation.
(4) - Set collar (5) - Control cam
