Adjusting the safety snap-on coupling
86 Service Instructions 867 - 04.0 - 10/2019
18.2 Adjusting the torque

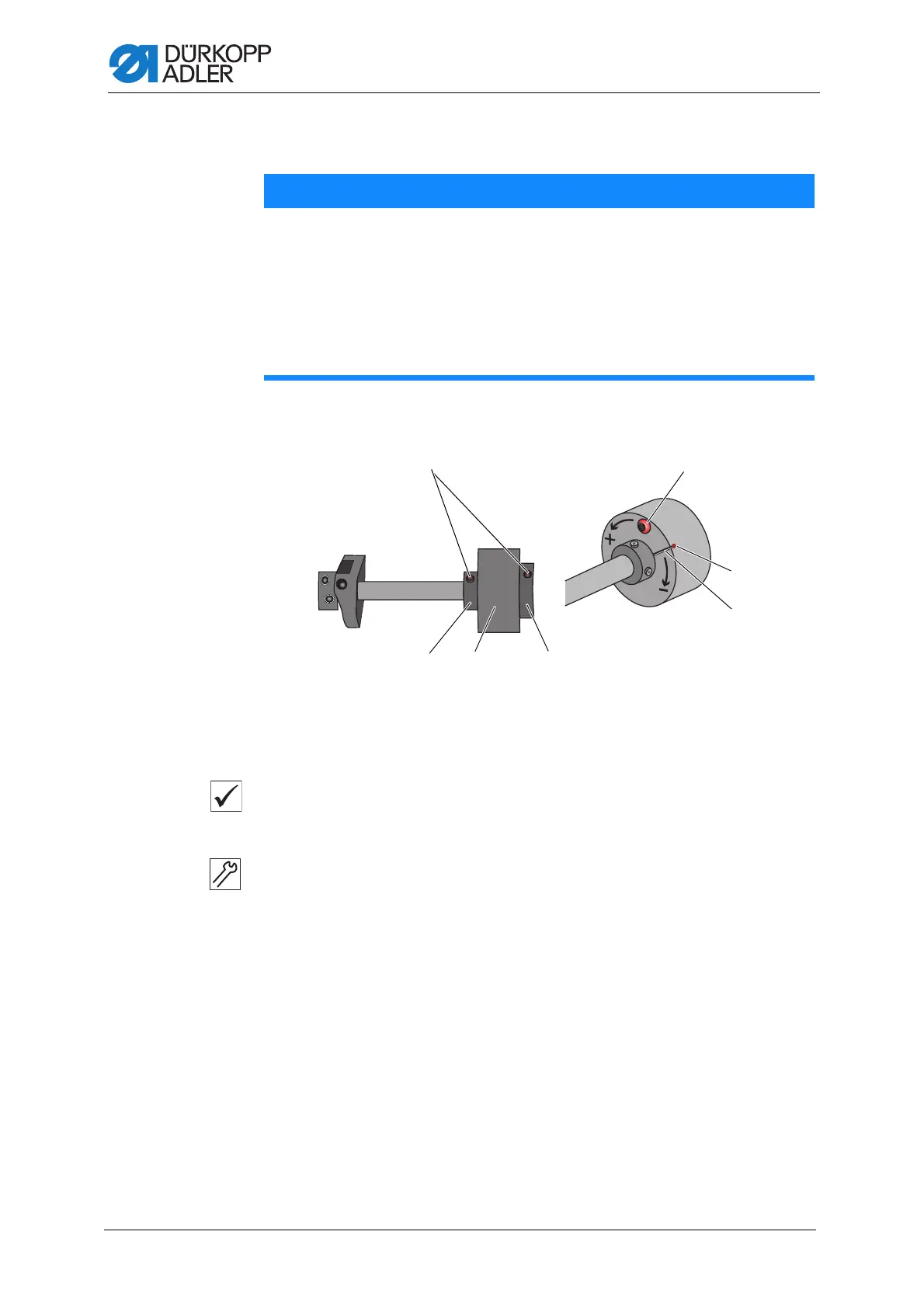

Fig. 71: Adjusting the torque
Proper setting
The machine is set at the factory so that the torque is 8 Nm when
the marking point (6) is exactly above the adjustment slot (5) of the disk.
To adjust the torque:
1. Tilt the machine head ( p. 14).
2. Loosen the screw (7).
3. Using the screw driver, turn the disk on the adjustment slot (5) so that
8 Nm is reached for the torque.
• Increase force: turn in the direction +
• Decrease force: turn in the direction -
4. Tighten the screw (7).
NOTICE
Property damage may occur!
If you change the torque, it could be that the coupling will not
disengage although this would be required.
This could cause machine damage, e.g. in the event of the thread
jamming.
Do NOT change the factory adjustment.
Make sure that the torque remains at 8 Nm.
(1) - Threaded pins
(2) - Left-hand set collar
(3) - Safety release clutch
(4) - Right-hand set collar
(5) - Adjustment slot
(6) - Marking point
(7) - Screw
