Winder
Service Instructions 867 - 04.0 - 10/2019 67
Adjusting the winder run

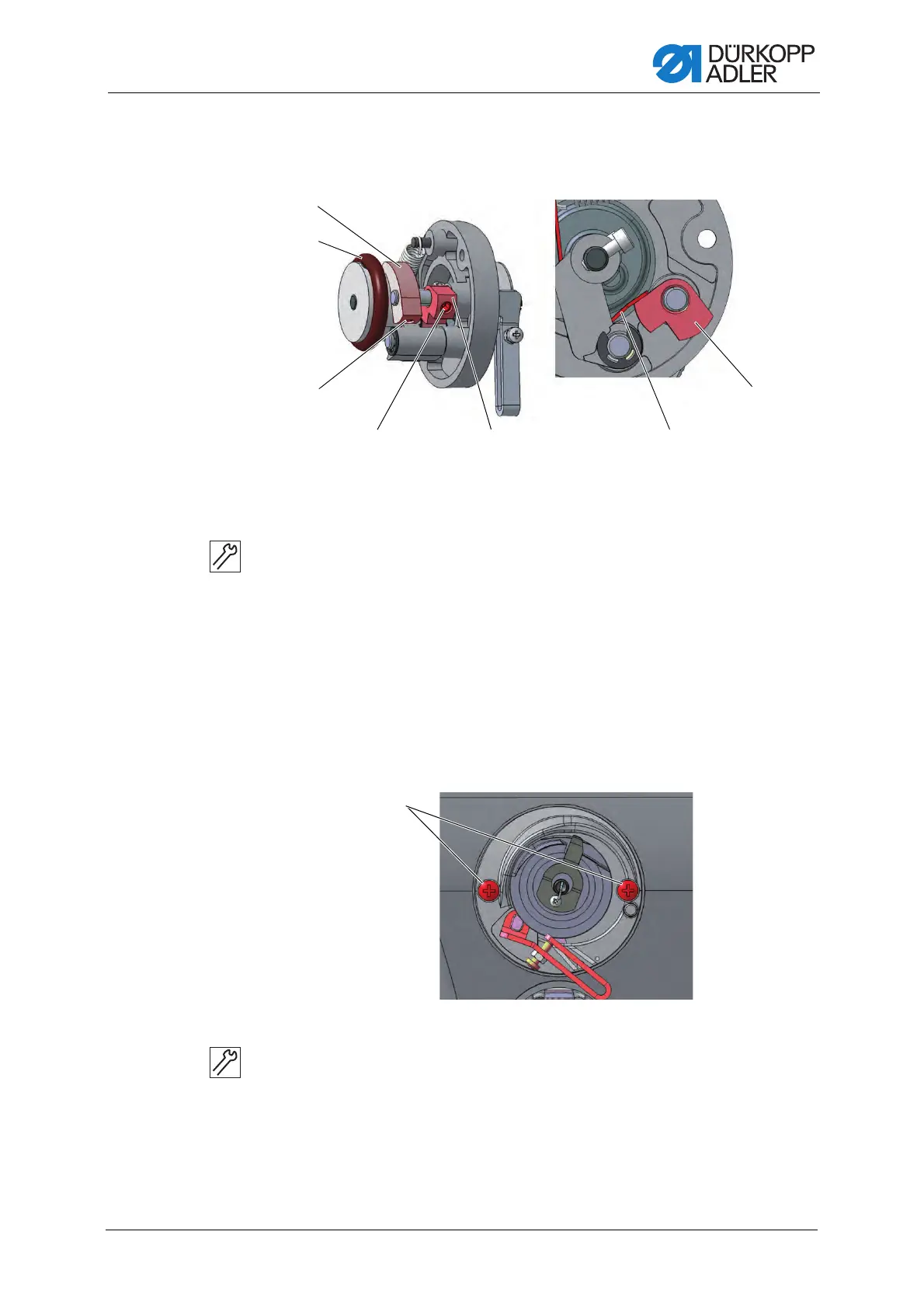

Fig. 53: Adjusting the winder (4)
To adjust the winder run:
13. Loosen the threaded pin (13).
14. Adjust the switch cam (14) such that it is just contacting the leaf
spring (15) when the block (8) has engaged in the locking disk.
15. Adjust the switch cam (14) such that the winder lever (3) has no axial
play.
16. Tighten the threaded pin (13).
Assembling the winder
Fig. 54: Adjusting the winder (5)
To assemble the winder:
17. Place the winder on the machine arm.
18. Tighten the screws (1).
(8) - Block
(10) - Winder wheel
(12) - Threaded pin
(13) - Threaded pin
(14) - Switch cam
(15) - Leaf spring
⑫
⑧
⑩
⑬⑭ ⑮
⑭
(1) - Screws
①

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
