Winder
66 Service Instructions 867 - 04.0 - 10/2019
Adjusting the winder spacing

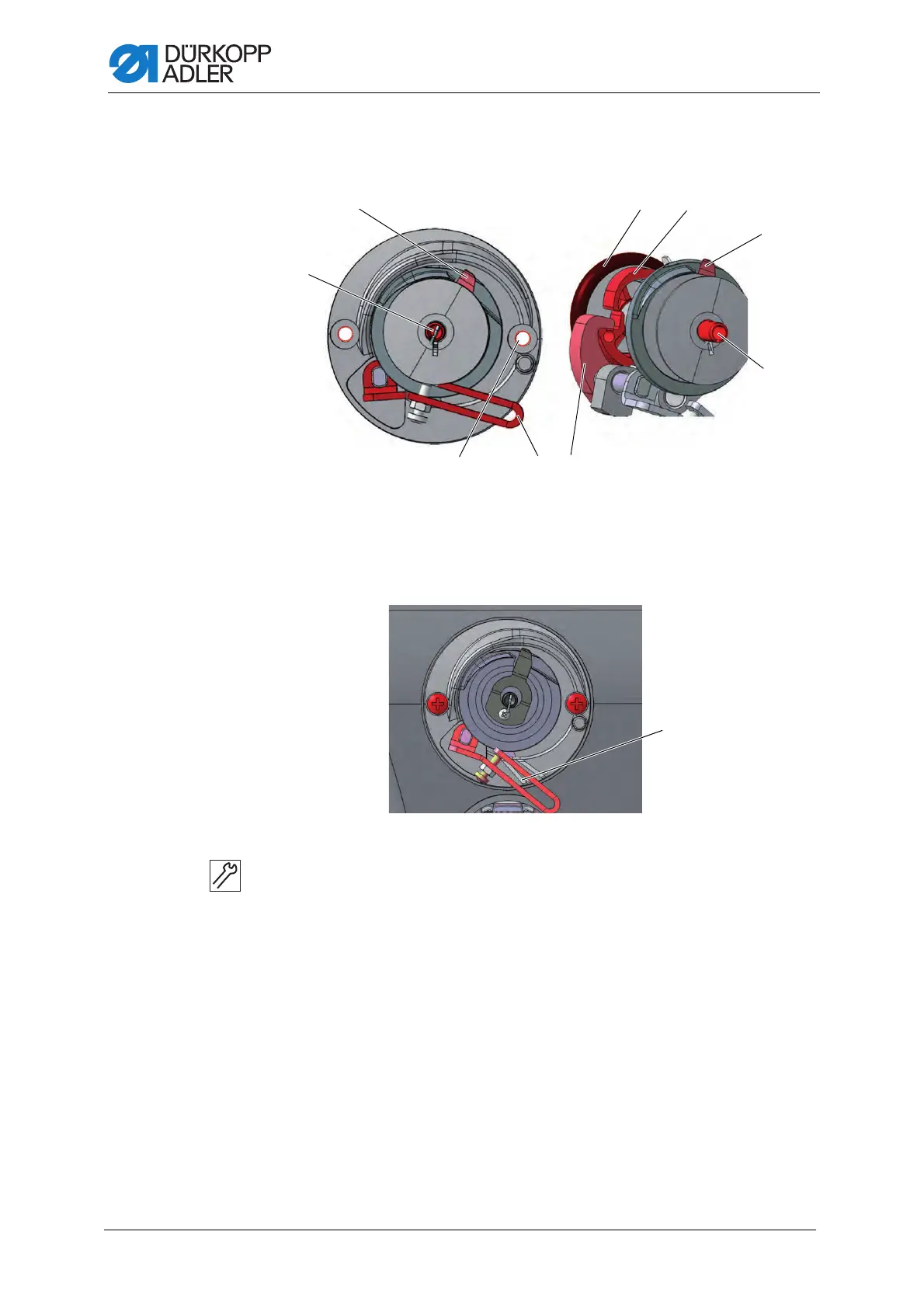

Fig. 51: Adjusting the winder (2)
Fig. 52: Adjusting the winder (3)
To adjust the winder spacing:
7. Turn the winder spindle (6) such that the thread-pulling knife (5) is at
the top right and is facing the right-hand screw hole (7).
8. Loosen the threaded pin in the block (8).
9. Adjust the winder lever (3) such that the upper arm is above the marking
for the XXL hook (11).
The distance between the winder lever and the outer thread on the
bobbin is 2 – 3 mm.
10. Adjust the block (8) such that it is resting against the locking disk (9).
11. Adjust the block (8) such that its distance to the winder wheel (10) is
0.5 mm.
12. Tighten the threaded pin in the block (8).
(3) - Winder lever
(5) - Thread-pulling knife
(6) - Winder spindle
(7) - Right-hand screw hole
(8) - Block
(9) - Locking disk
(10) - Winder wheel
(11) - Marking for XXL hook
