DURKOPP ADLER 867 Service Manual

Aligning the needle bar linkage
46 Service Instructions 867 - 04.0 - 10/2019

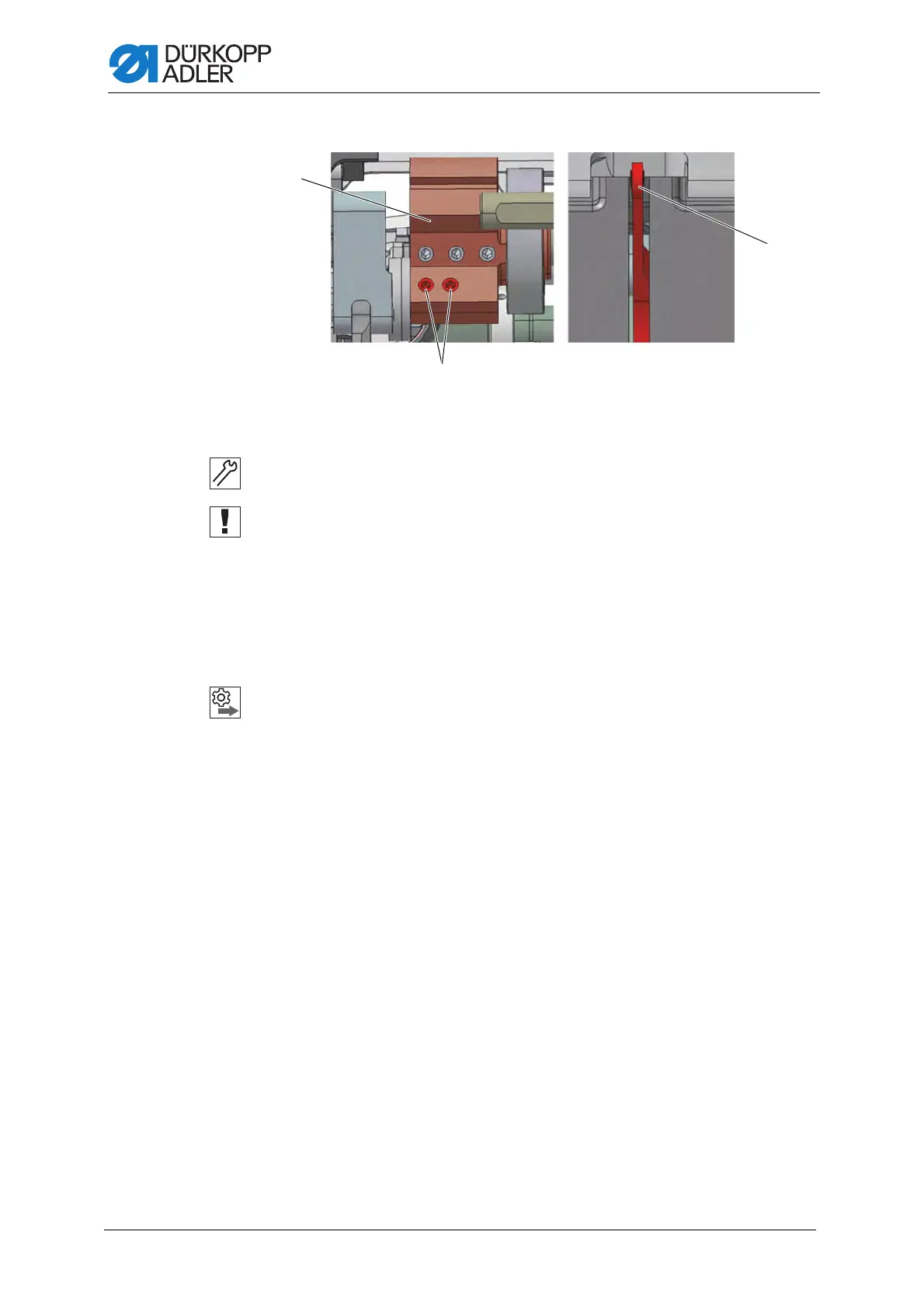

Fig. 30: Aligning the needle bar linkage sideways (2)
5. Loosen the threaded pins (6) on the arm shaft crank (5).
Make sure that the threaded pins stay on the surface.
Important
6. Move the needle bar linkage (4) sideways such that the needle pierces
exactly in the center of the needle hole (3) for the feed dog.
7. Push the set collars (2) inwards as far as they will go and tighten them.
8. Tighten the threaded pins (1).
9. Align the thread lever (7) exactly in the middle of the slot.
10. Tighten the threaded pins (6).
Order
Then check the following settings:
• Looping stroke position ( p. 50)
• Distance between hook and needle ( p. 49)
(5) - Arm shaft crank
(6) - Threaded pins
(7) - Thread lever
⑤
⑦
⑥

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
