ECKELMANN Case Controller UA 4 E Series - Page 38

Firmware V3.13
21.04.2021
38/466
Only UA 410 E AC
Continuous motor expansion valves

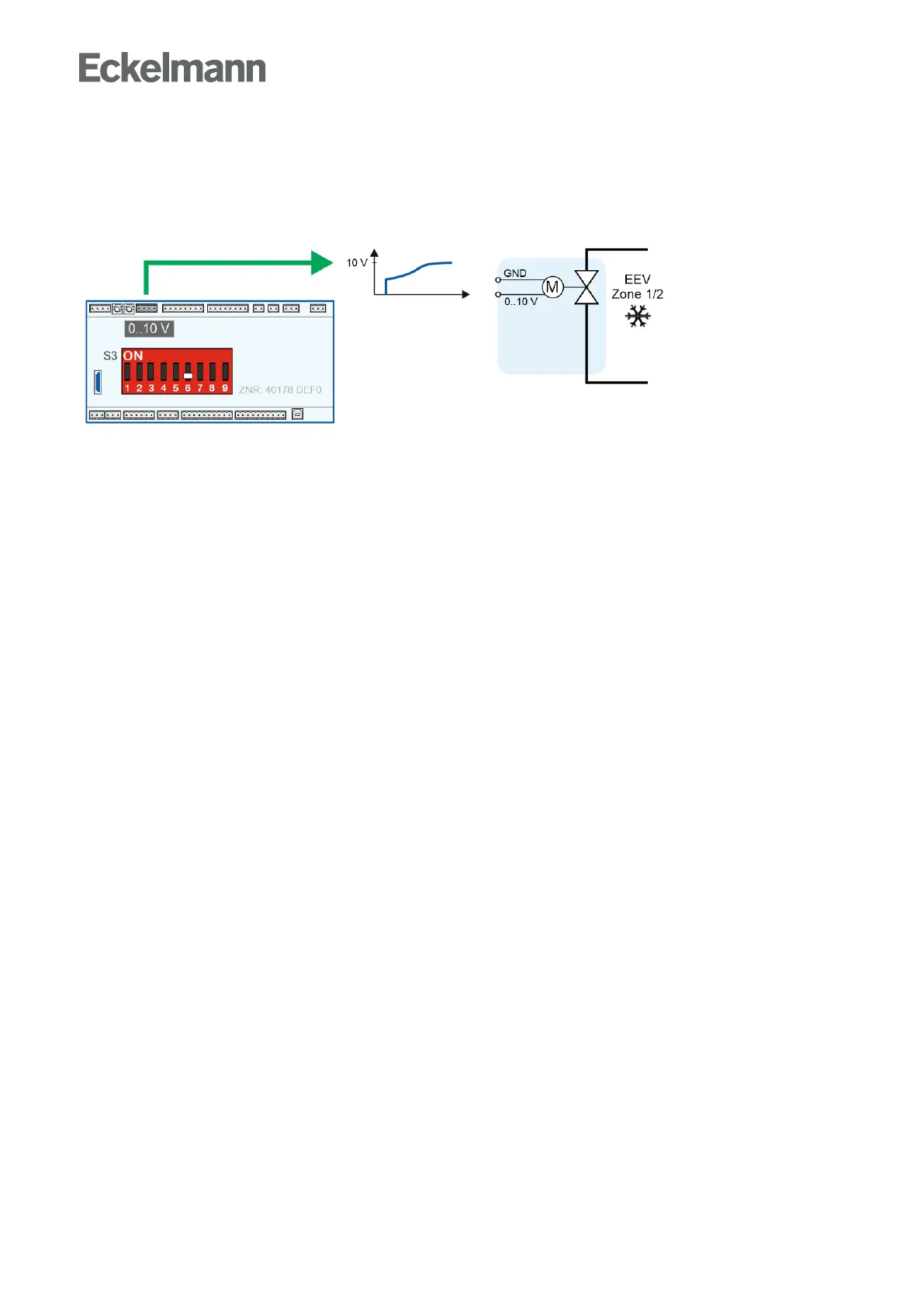

Theopening degree is also output simultaneously via the two analogue outputs 0..10 V (corresponds to
0..100%) for the control of continuous motor expansion valves (factory setting):
The following must be observed when using the analogue outputs:
The opening degree at the two analogue outputs is only output if the coding switch 6 of the DIP switch S3 is
also set to OFF(factorysetting;fordetails,seechapterControl of continuous motor expansion valves.
