ECKELMANN Case Controller UA 4 E Series

To Next Page

To Previous Page

Firmware V3.13

21.04.2021

90/466

Function description of the 4 operating modes

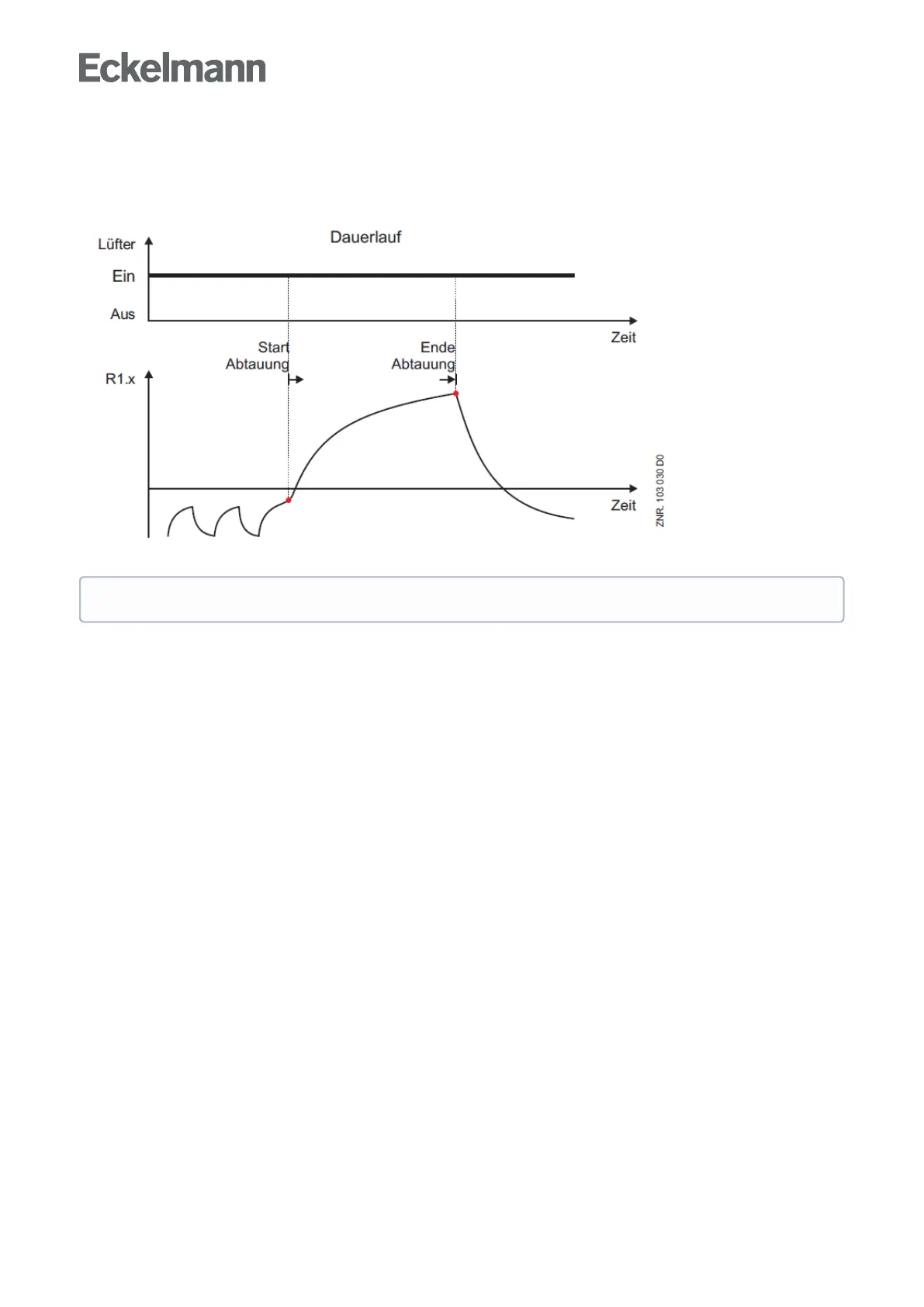

1. Operating mode "continuous fan operation"

The fan relay is always switched on in this operating mode.

ThetwoparametersLüfteranlaufandLüfter Überhavenoeffectinthisoperatingmode.


