Proline Promass E 500 PROFIBUS PA Electrical connection
Endress+Hauser 49
L
WARNING
Housing degree of protection may be voided due to insufficient sealing of the housing.
‣
Screw in the screw without using any lubricant.
NOTICE
Excessive tightening torque applied to the fixing screws!
Risk of damaging the plastic transmitter.
‣
Tighten the fixing screws as per the tightening torque: 2.5 Nm (1.8 lbf ft)
11. Tighten the 4 fixing screws on the housing cover.
Removing a cable
To remove a cable from the terminal:
3 (0.12)
2.
1.

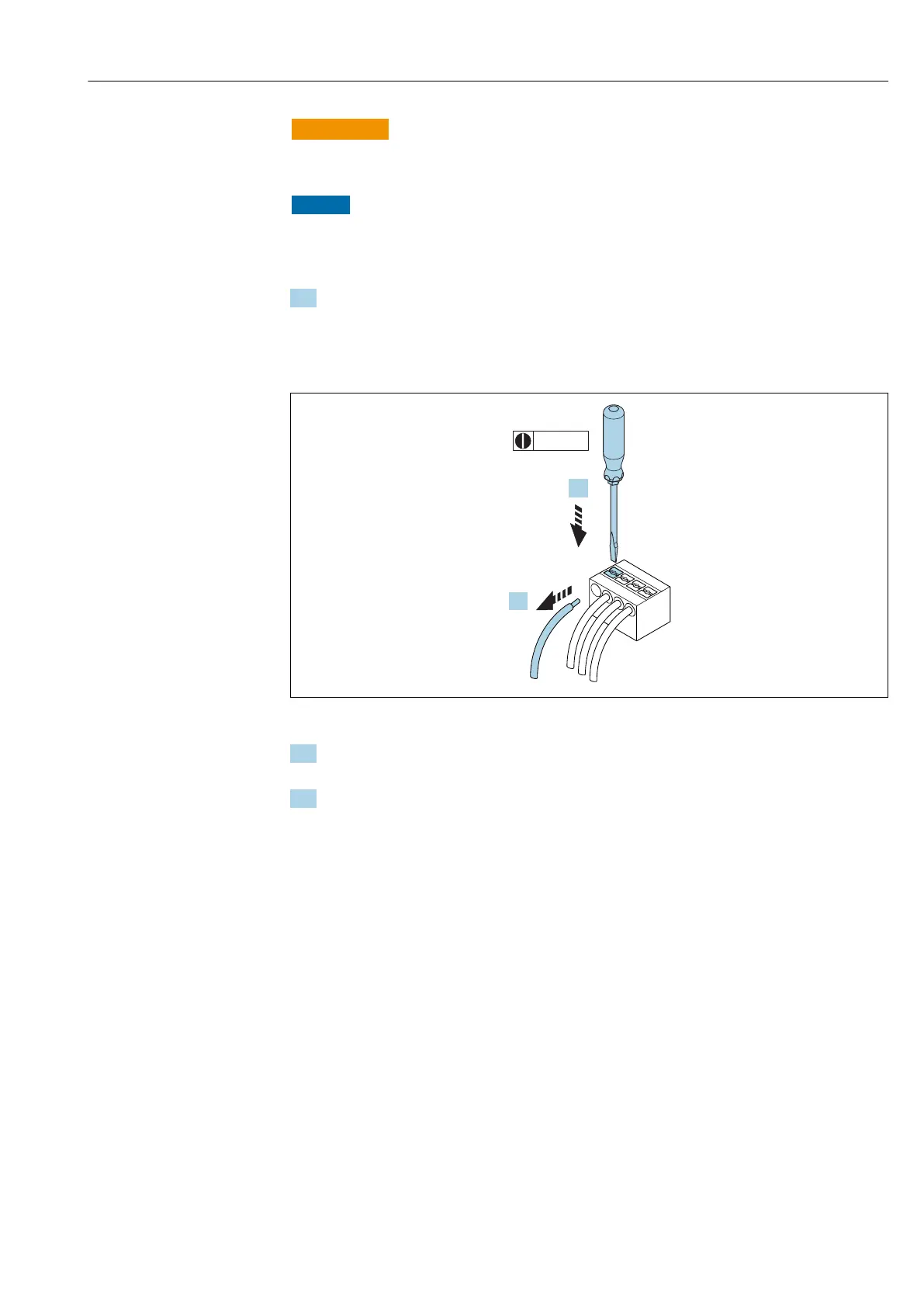

A0029598
 18 Engineering unit mm (in)
1. Use a flat-blade screwdriver to press down on the slot between the two terminal
holes.
2. Remove the cable end from the terminal.
