Endress+Hauser Proline Promass E 500 - Relay Output; Current Input; Status Input

Proline Promass E 500 PROFIBUS PA Electrical connection
Endress+Hauser 59
Relay output
1
2
3
A0028760

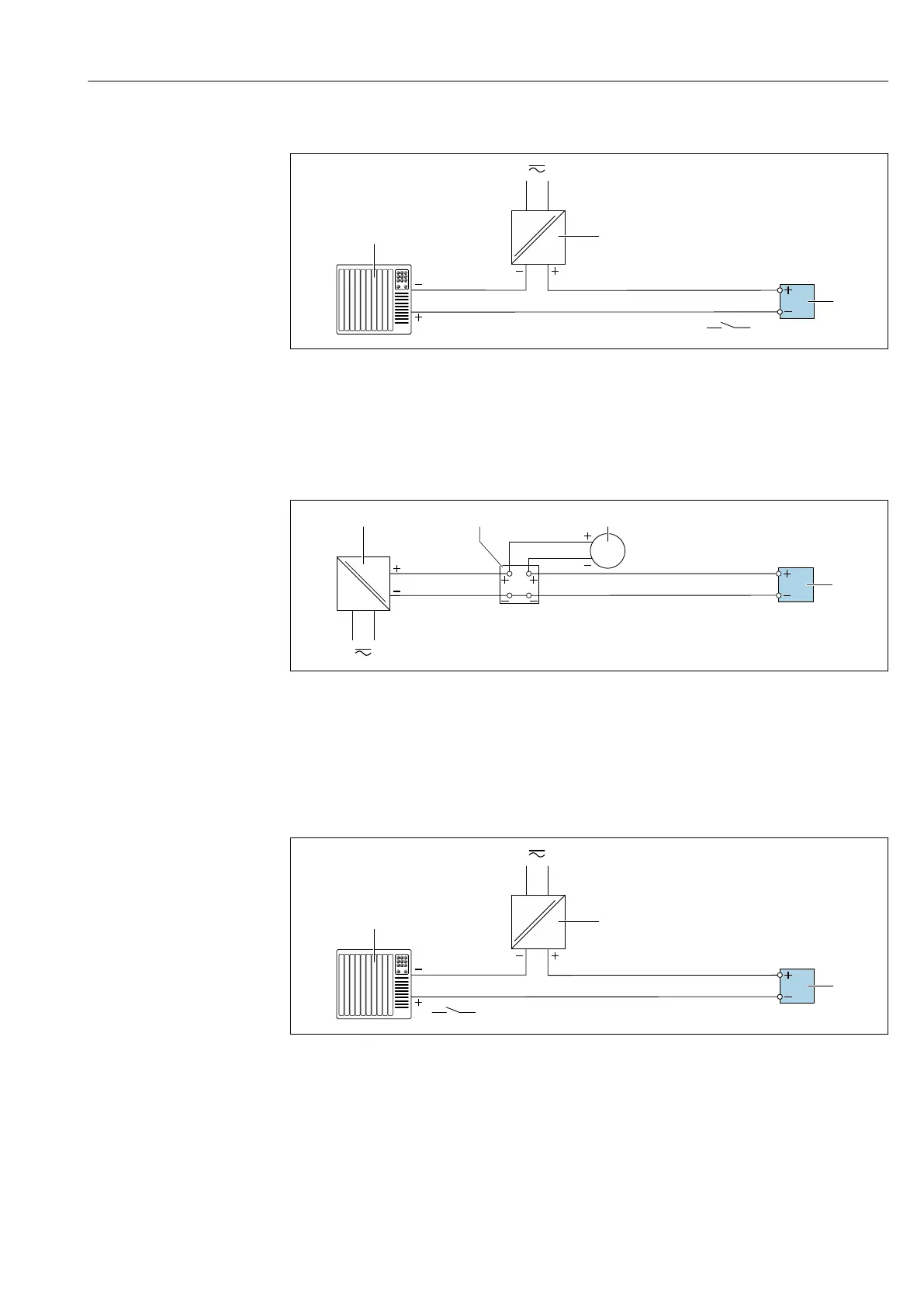

 25 Connection example for relay output (passive)
1 Automation system with relay input (e.g. PLC)
2 Power supply
3 Transmitter: observe input values →  268
Current input
31
4
2
A0028915
 26 Connection example for 4 to 20 mA current input
1 Power supply
2 Terminal box
3 External measuring device (to read in pressure or temperature, for instance)
4 Transmitter
Status input
1
2
3
A0028764
 27 Connection example for status input
1 Automation system with status output (e.g. PLC)
2 Power supply
3 Transmitter
