Endress+Hauser Proline Promass E 500 - Pulse;Frequency Output; Switch Output

Electrical connection Proline Promass E 500 PROFIBUS PA
58 Endress+Hauser
2
4...20 mA
3
1
4
A0028759

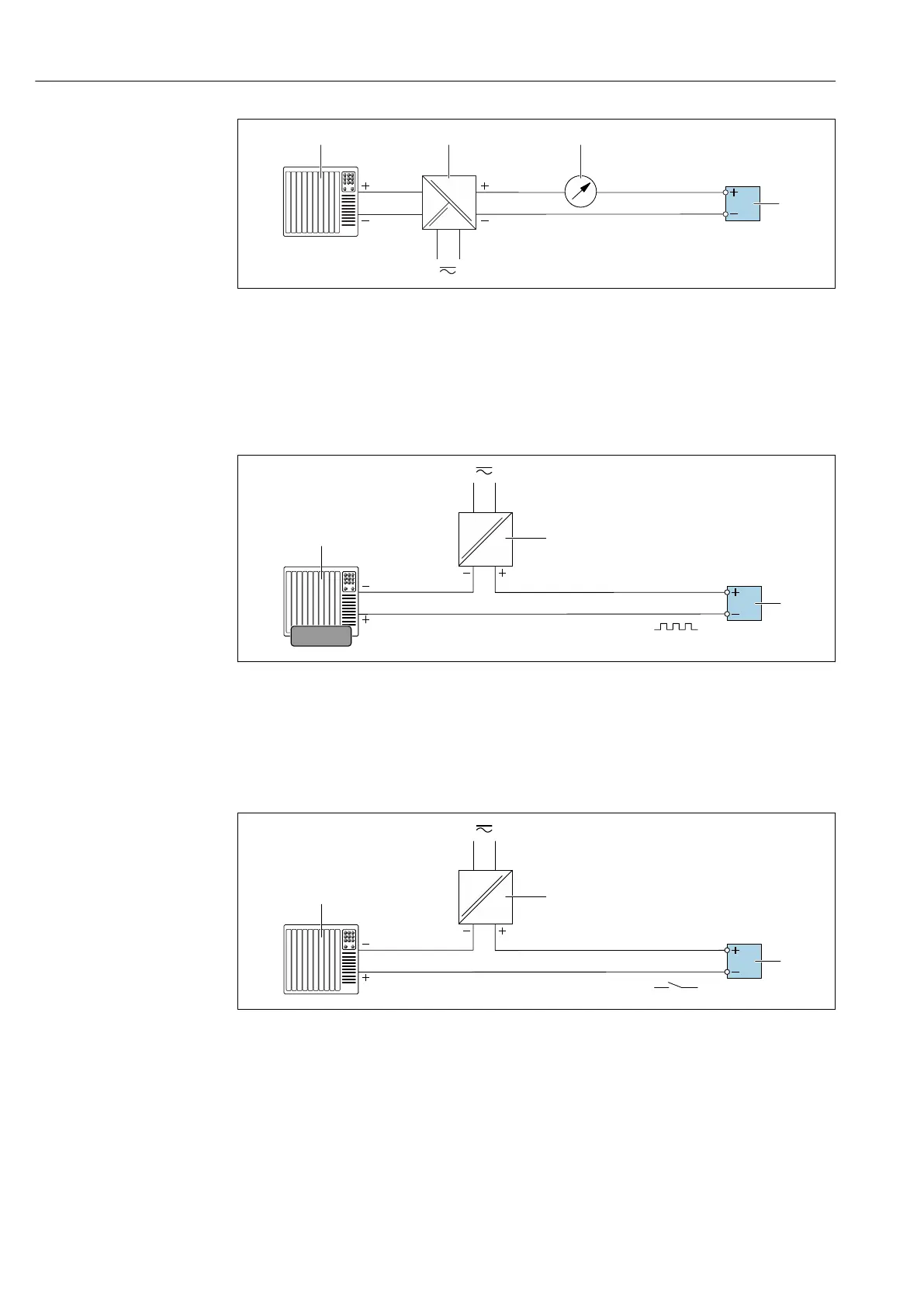

 22 Connection example for 4-20 mA current output (passive)
1 Automation system with current input (e.g. PLC)
2 Active barrier for power supply (e.g. RN221N)
3 Analog display unit: observe maximum load
4 Transmitter
Pulse/frequency output
1
2
3
12345
A0028761
 23 Connection example for pulse/frequency output (passive)
1 Automation system with pulse/frequency input (e.g. PLC with 10 kΩ pull-up or pull-down resistor)
2 Power supply
3 Transmitter: observe input values →  267
Switch output
1
2
3
A0028760
 24 Connection example for switch output (passive)
1 Automation system with switch input (e.g. PLC with a 10 kΩ pull-up or pull-down resistor)
2 Power supply
3 Transmitter: observe input values →  267
