4.1.4 Additional Procedure/Procedural Differences
The disassembly/reassembly procedures for Artisan 810/PX810FW/TX810FW and
Artisan 710/PX710W/TX710W are different. Unless otherwise specified, this chapter
describes Artisan 810/PX810FW/TX810FW. Refer to the pages mentioned below for
the disassembly/reassembly procedures for Artisan 710/PX710W/TX710W.
C H E C K
P O I N T
The product names hereafter called as follows:
Notation Product name
Artisan 810/PX810FW/
TX810FW
Epson Artisan 810/Epson Stylus Photo
PX810FW/Epson Stylus Photo TX810FW
Artisan 710/PX710W/
TX710W
Epson Artisan 710/Epson Stylus Photo
PX710W/Epson Stylus Photo TX710W
Artisan 835/PX820FWD/
TX820FWD
Epson Artisan 835/Epson Stylus Photo
PX820FWD/Epson Stylus Photo TX820FWD
Artisan 725/PX720WD/
TX720WD
Epson Artisan 725/Epson Stylus Photo
PX720WD/Epson Stylus Photo TX720WD
Artisan 837/PX830FWD
Epson Artisan 837/Epson Stylus Photo
PX830FWD
Artisan 730/PX730WD/
TX730WD
Epson Artisan 730/Epson Stylus Photo
PX730WD/Epson Stylus Photo TX730WD

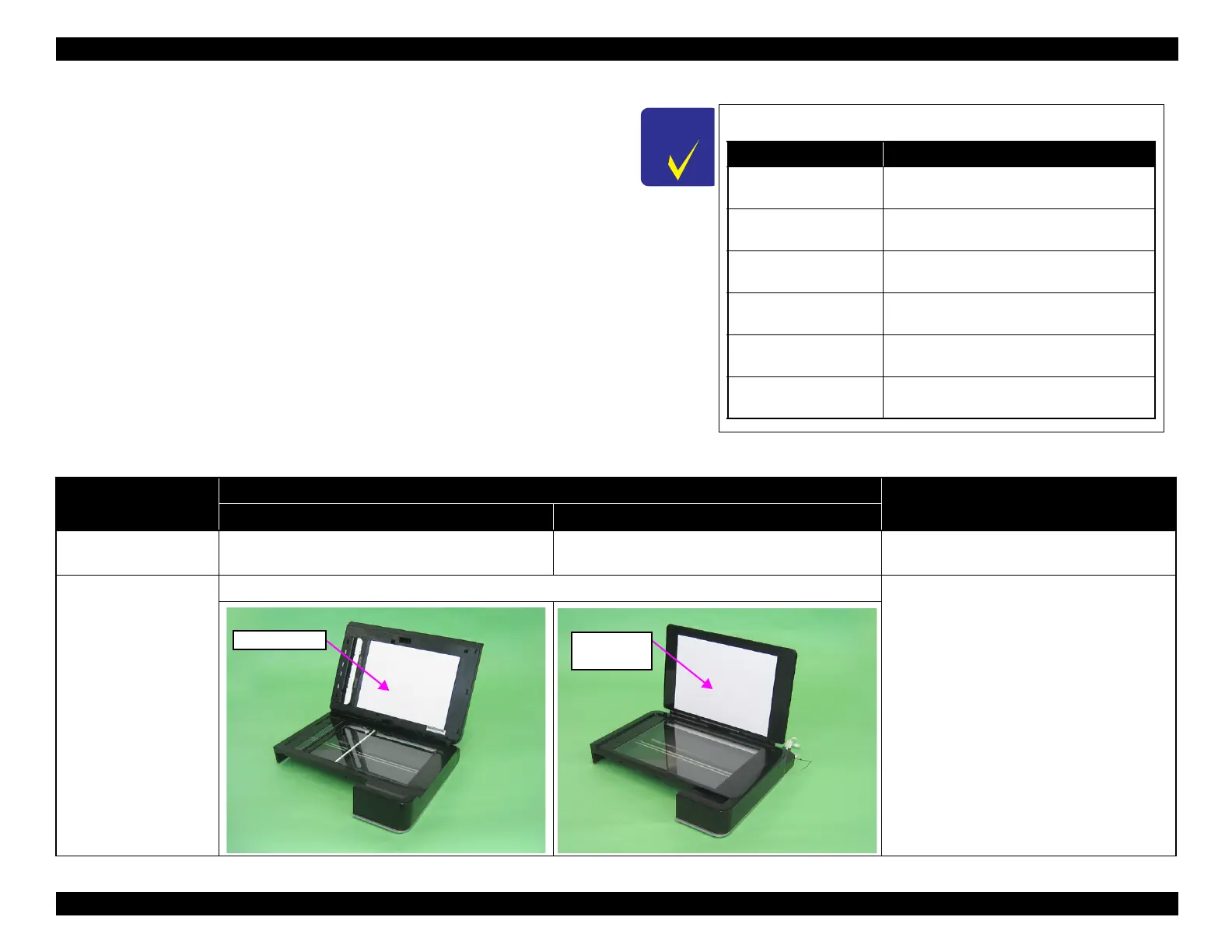

Table 4-3. Procedure Differences
Parts name
Differences
Reference page
Artisan 810/PX810FW/TX810FW Artisan 710/PX710W/TX710W
ADF Unit ADF mechanism No ADF mechanism
 Artisan 810/PX810FW/TX810FW
 "4.2.3.1 ADF Unit" (p.110)
Scanner Unit
The Document Cover and Housing are different depend on the ADF mechanism or not.
 Artisan 810/PX810FW/TX810FW
 "4.2.7 Disassembly of the ADF Unit"
(p.168)
 "4.2.6 Disassembling Scanner Unit" (p.160)
 Artisan 710/PX710W/TX710W
 "4.3.3.1 Document Cover" (p.194)
 "4.3.3.2 Scanner Upper Housing" (p.194)
(Continued to the next page.)
ADF Unit
Document
Cover
