Epson Artisan 730 - Ink System

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
Artisan 835/725/PX820FWD/TX820FWD/PX720WD/TX720WD Disassembly/assembly 272
Confidential
8.3.2.5 Ink System
 Parts/Components need to be removed in advance:
ADF Unit (Artisan 835/837/PX820FWD/TX820FWD/PX830FWD only)/Scanner
Unit/Upper Left Housing/Paper Guide Top Assy/Upper Housing
 Removal procedure
1. Release the Carriage Lock and move the Carriage Unit to the center. (See
4.2.5.1 Printhead Step2 (p134).)
2. Remove the Waste Ink Tray Assy. (See 4.2.5.11 Waste Ink Tray Assy
(p156).)
3. Remove the screw (x1) that secures the CR Porous Pad Assy.

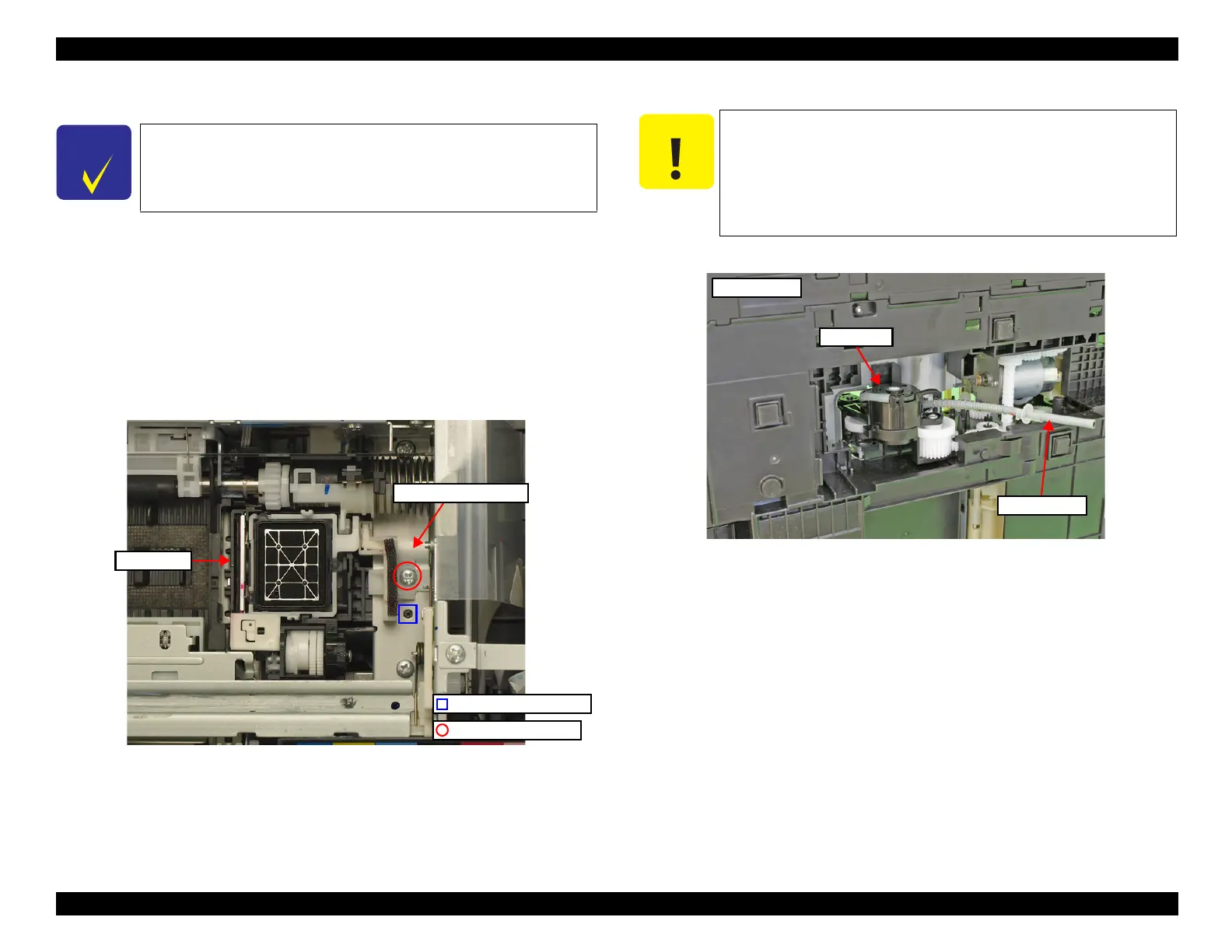

Figure 8-22. Removing the Ink System (1)
4. Remove the Ink System from the bottom of the printer.
Figure 8-23. Removing the Ink System (2)
C H E C K
P O I N T
This section describes the disassembly/reassembly procedures of the
Ink System for Artisan 835/837/725/730/PX820FWD/TX820FWD/
PX830FWD/PX720WD/TX720WD/PX730WD/TX730WD.
C.B.P. 3x8 (6±1Kgfcm)
Positioning hole & dowel
Ink System
CR Porous Pad Assy
C A U T I O N
 So as to make description easier, the printer in the photographs
is placed vertically in the following steps. Be careful about ink
spilling if the printer is tilted in practical operation.
 Be careful about ink spilling from the Waste Ink Tube.
 Do not damage the rubber seal or the head cleaner on the cap
with frames or other parts. (See
Fig. 8-26.)
Ink System
Waste Ink Tube
Bottom side
