Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
DISASSEMBLY/ASSEMBLY Routing FFC/cables 196
Confidential

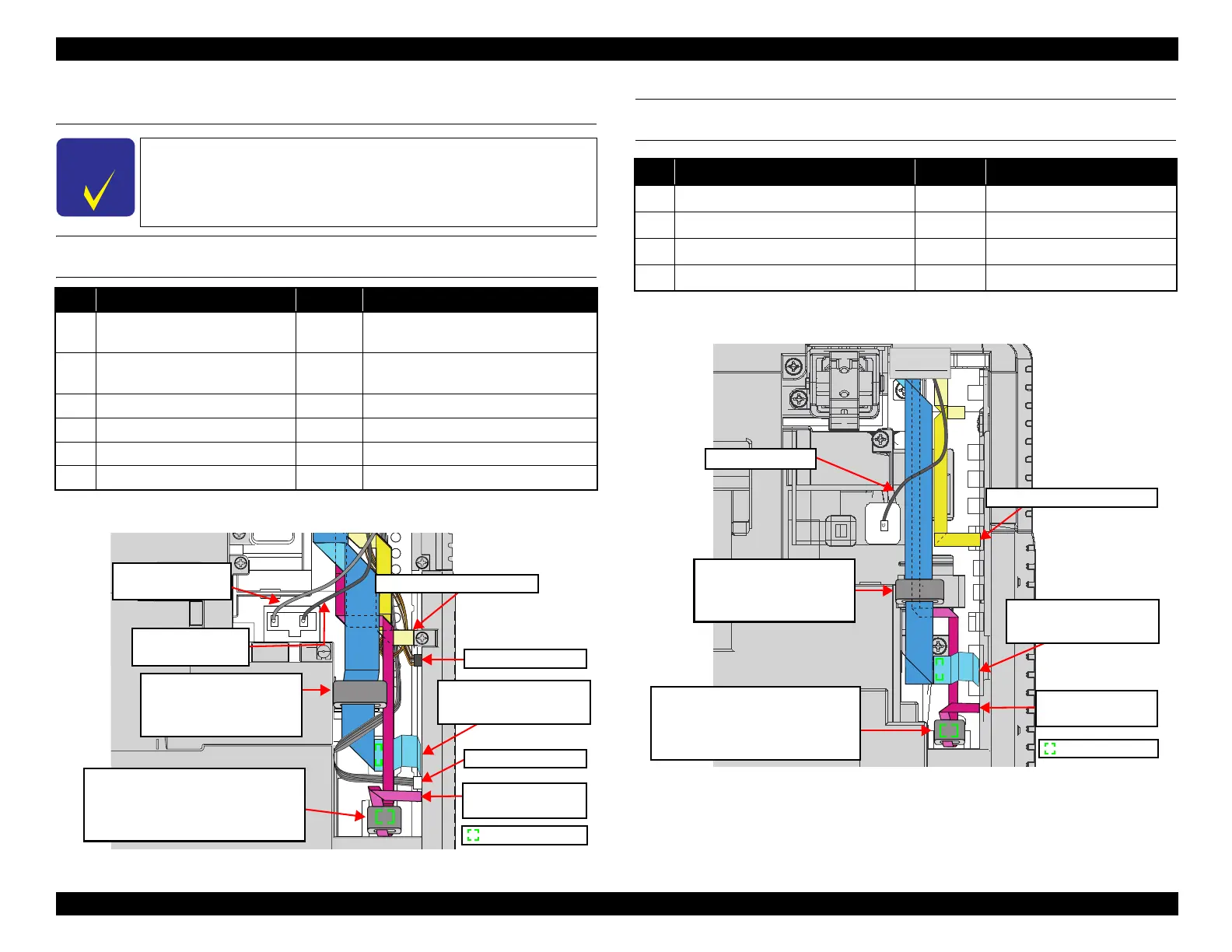

4.4 Routing FFC/cables
ADF/SCANNER
(ARTISAN 810/835/PX810FW/TX810FW/PX820FWD/TX820FWD)
Note * :See Fig. 4-196 for the connector positions on the Main Board (Artisan 810/835/
PX810FW/TX810FW/PX820FWD/TX820FWD).
Figure 4-194. ADF/Scanner
(Artisan 810/835/PX810FW/TX810FW/PX820FWD/TX820FWD)
SCANNER
(ARTISAN 710/725/PX710W/TX710W/PX720WD/TX720WD)
Note * :See Fig. 4-198 for the connector positions on the Main Board (Artisan 710/725/
PX710W/TX710W/PX720WD/TX720WD).
Figure 4-195. Scanner
(Artisan 710/725/PX710W/TX710W/PX720WD/TX720WD)
C H E C K
P O I N T
For routing FFCs/cables for ADF/Scanner of Artisan 837/730/
PX830FWD/PX730WD/TX730WD, see
"9.4.3 Routing FFC/cables"
(p.319).
No. FFC/cable name CN No.
*
Remarks
1 ADF Motor Cable CN25
Artisan 810/835/PX810FW/TX810FW/
PX820FWD/TX820FWD only
2 ADF Sensor Cable CN51
Artisan 810/835/PX810FW/TX810FW/
PX820FWD/TX820FWD only
3 Scanner Cover Open Sensor FFC CN10 Ferrite core x1
4 Scanner Carriage FFC CN41 Ferrite core x1
5 Scanner CR Encoder FFC CN49 ---
6 Grounding wire (x2) --- ---
Grounding wire from
the Scanner Unit
Grounding wire from
the ADF Unit
Ferrite Core B:
Put the Scanner Cover Open Sensor FFC
through this and secure it together with
the FFC on the Main Board Unit with
double-sided tape.
Scanner CR Encoder FFC
ADF Motor Cable
Scanner Carriage FFC:
Secure this on Main Board
Unit with double-sided tape.
Scanner Cover Open
Sensor FFC
ADF Sensor Cable
Double-sided tape
Ferrite Core A:
Put the Scanner Carriage FFC
through this and attach it to
the Upper Housing.
No. FFC/cable name CN No.
*
Remarks
1 Scanner Cover Open Sensor FFC CN10 Ferrite core x1
2 Scanner Carriage FFC CN41 Ferrite core x1
3 Scanner CR Encoder FFC CN49 ---
4 Grounding wire (x1) --- ---
Scanner CR Encoder FFC
Scanner Cover Open
Sensor FFC
Double-sided tape
Grounding wire
Ferrite Core B:
Put the Scanner Cover Open Sensor
FFC through this and secure it together
with the FFC on the Main Board Unit
with double-sided tape.
Ferrite Core A:
Put the Scanner Carriage FFC
through this and attach it to
the Upper Housing.
Scanner Carriage FFC:
Secure this on Main Board
Unit with double-sided tape.
