Epson Artisan 730 - Waste Ink Tray Assy

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
DISASSEMBLY/ASSEMBLY Disassembly Procedures 156
Confidential
4.2.5.11 Waste Ink Tray Assy
 Parts/Components need to be removed in advance:
None
 Removal procedure
1. Remove the screw (x1). (See Fig. 4-104.)
2. Insert the flathead screwdriver to the hole of the Rear Right FAX Housing to
release the hook (x1), and remove the Waste Ink Tray Assy. (See
Fig. 4-104,
Fig. 4-105.)

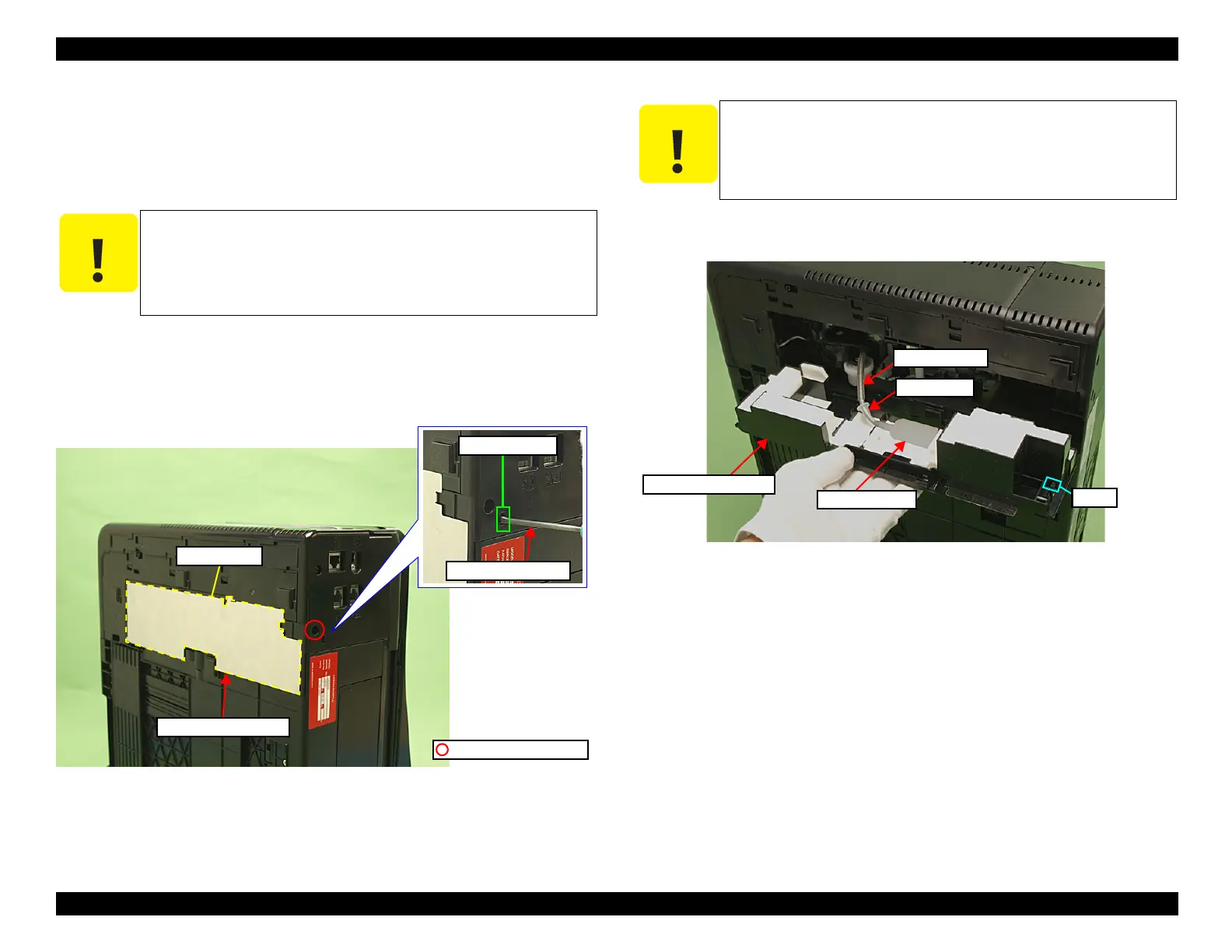

Figure 4-104. Removing the Waste Ink Tray Assy (1)
3. Remove the Waste Ink Tube from the Waste Ink Cover together with the Tube
Stopper, and remove the Waste Ink Tray Assy.
Figure 4-105. Removing the Waste Ink Tray Assy (2)
C A U T I O N
 So as to make description easier, the printer in the photographs
is placed vertically in the following steps. Be careful about ink
spilling if the printer is tilted in practical operation.
 Be careful not to get injured with the sharp edges of the
grounding plate of the Waste Ink Tray Assy.
Flathead screwdriver
Hook in the hole
C.B.P. 3x10 (6±1Kgfcm)
Sharp edge
Waste Ink Tray Assy
C A U T I O N
Be careful about ink spilling from the Waste Ink Tube.
Waste Ink Tube
Tube Stopper
Waste Ink Tray Assy
Waste Ink Cover
Hook
