Epson Artisan 730 Service Manual

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
Artisan 837/730/PX830FWD/PX730WD/TX730WD Disassembly/assembly 306
Confidential
9.4.2.13 Scanner Open Sensor
 Parts/Components need to be removed in advance:
ADF Unit/Scanner Unit/Decoration Plate Left Upper Sub/Paper Guide Top Assy/
Upper Housing
 Removal procedure
1. Disconnect the Scanner Open Sensor cable from the connector on the Relay
Board. (See
Fig. 9-34.)
2. Release the hook (x1), and remove the Scanner Open Sensor from the Upper
Housing.

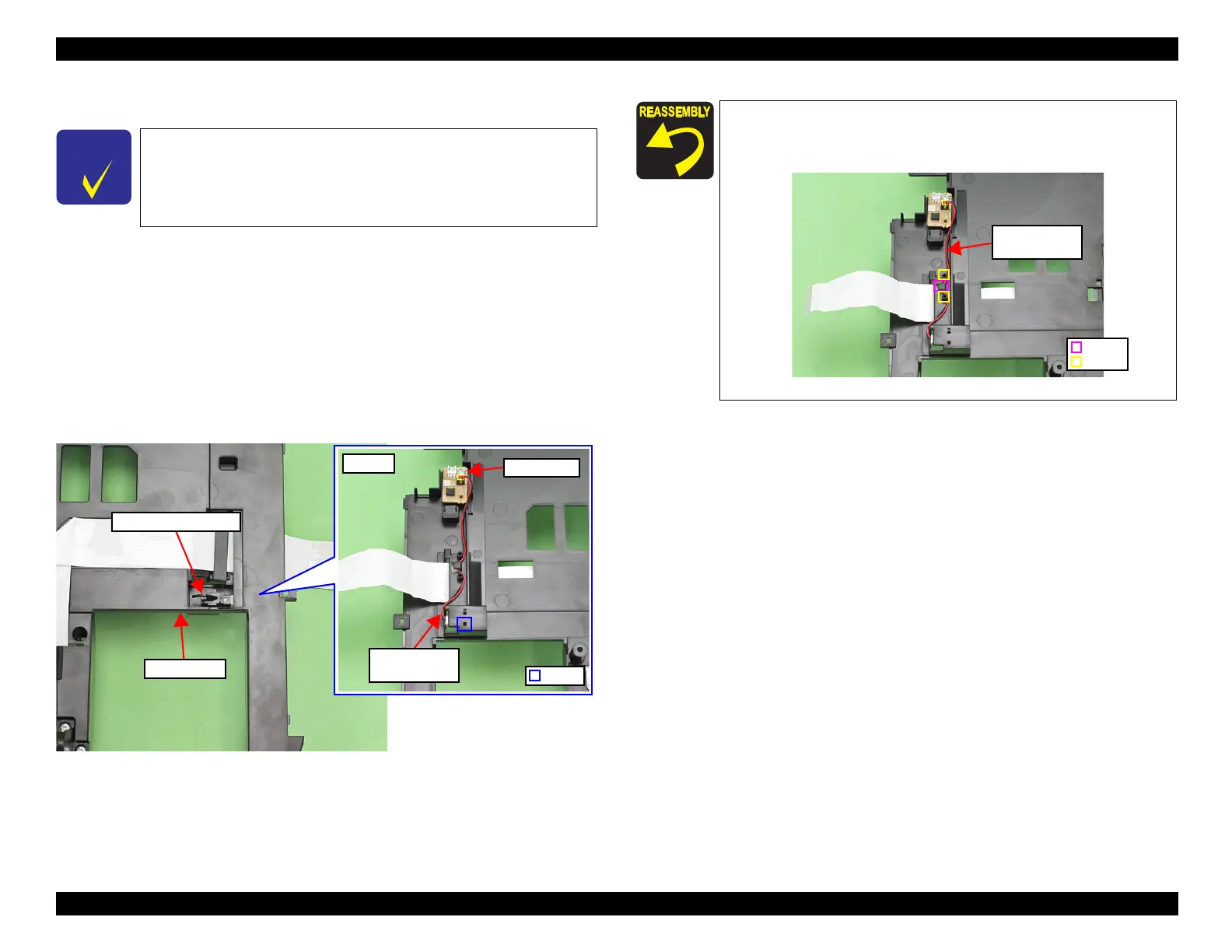

Figure 9-34. Removing the Scanner Open Sensor
C H E C K
P O I N T
This section describes the disassembly/reassembly procedures of the
Scanner Open Sensor for Artisan 837/PX830FWD.
The disassembly/reassembly procedures for Artisan 730/PX730WD/
TX730WD differ from those for Artisan 837/PX830FWD, therefore,
see
"9.4.2.22 Scanner Open Sensor" (p.316) for the procedures.
Scanner Open Sensor
Bottom
Relay Board
Hook
Scanner Open
Sensor cable
Upper Housing
When installing the Scanner Open Sensor, route the Scanner Open
Sensor cable through the hook (x1) and dowels (x2) of the Upper
Housing as shown in
Fig. 9-35.
Figure 9-35. Routing the Scanner Open Sensor Cable
Hook
Rib
Scanner Open
Sensor cable

Epson Artisan 730 Specifications

General

Maximum Print Resolution	5760 x 1440 dpi
Maximum Photo Print Speed	4" x 6" photo in as fast as 10 seconds
ISO Print Speed Black	9.6 ISO ppm
ISO Print Speed Color	9.1 ISO ppm
Two-sided ISO Print Speed Black	4.9 ISO ppm
Two-sided ISO Print Speed Color	4.7 ISO ppm
Minimum Ink Droplet Size	1.5 picoliters
Maximum Copy Speed Black	39 cpm
Maximum Copy Speed Color	40 cpm
Maximum Copy Size	8.5" x 11"
Optical Resolution	2400 dpi
Maximum Resolution	9600 x 9600 dpi
Scanner Bit Depth	48-bit color in / 24-bit output
Wireless Connectivity	802.11 b/g/n
Ethernet	10/100
USB	Hi-Speed USB
PC-free Paper Support	Plain (8.5" x 11"), Photo (4" x 6", 5" x 7", 8" x 10", 8.5" x 11", 16:9 wide)
Input Paper Capacity	120 sheets plain paper, 10 envelopes
Output Paper Capacity	30 sheets
Operating Temperature	50 ° to 95 °F (10 ° to 35 °C)
Storage Temperature	-4 ° to 104 °F (-20 ° to 40 °C)
Operating Humidity	20 – 80% (no condensation)
Storage Humidity	5 – 85% (no condensation)
Rated Voltage	120 VAC
Rated Frequency	50 – 60 Hz
Rated Current	0.8 Amp
Power Consumption	Approx. 23 W ISO 24712, Approx. 4.5 W (Sleep Mode), Approx. 0.3 W (Power Off Mode)

Weight and Dimensions

Dimensions (W x D x H) Printing	17.6" x 25.8" x 5.9"
Dimensions (W x D x H) Storage	17.6" x 18.0" x 5.9"
Weight	21.2 lb
