Epson Artisan 730 - Adf; ADF Document Support Assy

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
DISASSEMBLY/ASSEMBLY Disassembly Procedures 173
Confidential
4.2.7.6 ADF Front Cover
 Parts/Components need to be removed in advance:
ADF Unit/Scanner Unit/ADF Cover Assy/ADF Right Cover/ADF Rear Cover/
ADF Cover Stacker/ADF Document Support Cover
 Removal procedure
1. Remove the screws (x2) that secure the ADF Front Cover.
2. Release the ribs (x4) of the ADF Base Assy from the ADF Front Cover and
remove the ADF Front Cover from the ADF Base Assy.

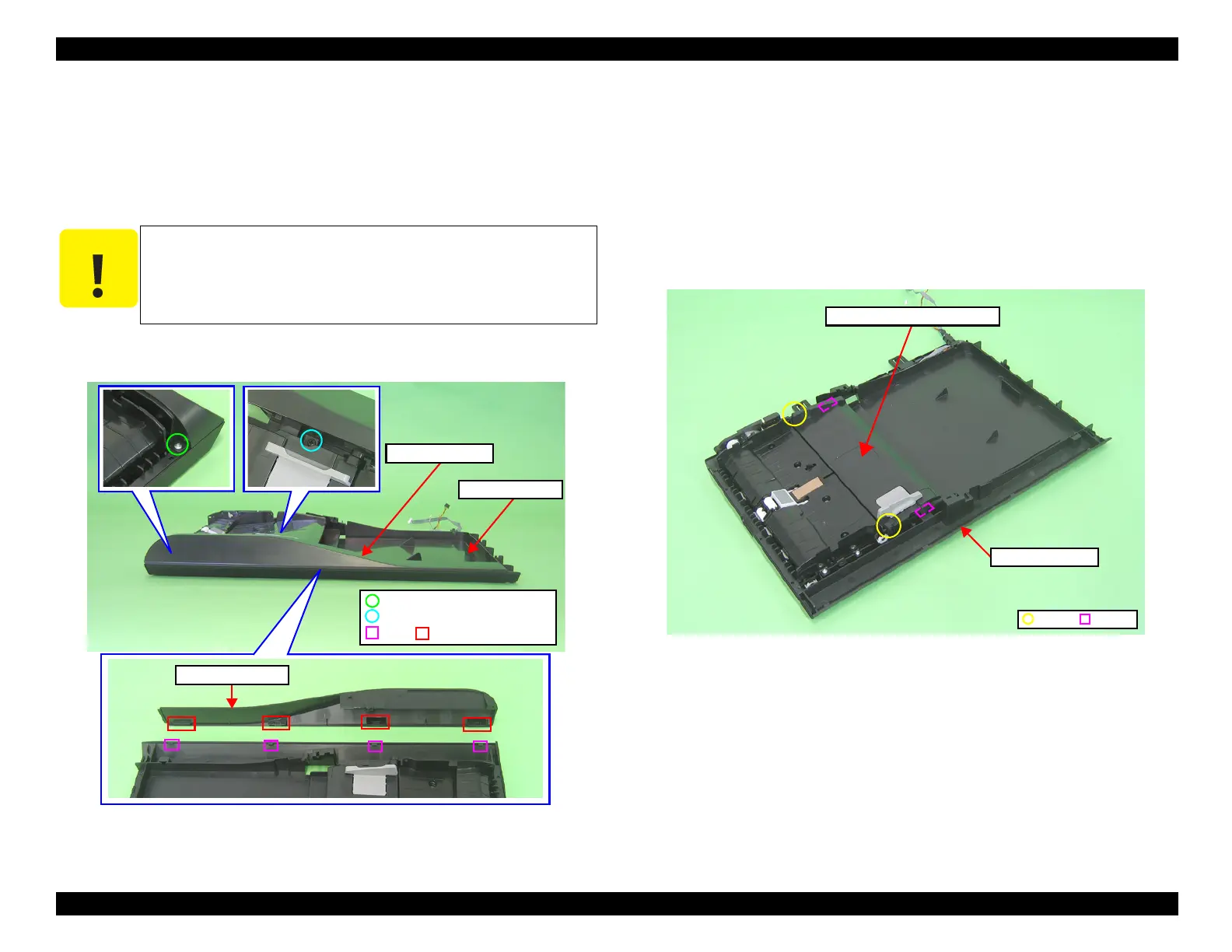

Figure 4-140. Removing the ADF Front Cover
4.2.7.7 ADF Document Support Assy
 Parts/Components need to be removed in advance:
ADF Unit/Scanner Unit/ADF Cover Assy/ADF Right Cover/ADF Rear Cover/
ADF Cover Stacker/ADF Document Support Cover/ADF Front Cover
 Removal procedure
1. Release the hooks (x2) that secure the ADF Document Support Assy.
2. Release the dowels (x2) that secure the ADF Document Support Assy, and
remove the ADF Document Support Assy from the ADF Base Assy.
Figure 4-141. Removing the ADF Document Support Assy
C A U T I O N
When removing the ADF Front Cover, be careful not to damage the
positioning holes (x4) of the ADF Front Cover shown in
Fig. 4-140.
ADF Front Cover
ADF Front Cover
C.B.P. 2.5x6 (black) (6±1kgfcm)
Rib
C.B.P. 2.5x6 (6±1kgfcm)
ADF Base Assy
Positioning hole
ADF Document Support Assy
Dowel
Hook
ADF Base Assy
