Epson Artisan 730 - Scanner Upper Housing

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
Artisan 837/730/PX830FWD/PX730WD/TX730WD Disassembly/assembly 317
Confidential
9.4.2.23 Scanner Upper Housing
 Parts/Components need to be removed in advance:
Scanner Unit/Document Cover
 Removal procedure
1. Remove the screws (x8) that secure the Scanner Upper Housing.
2. Release the hooks (x3) that secure the Scanner Upper Housing.

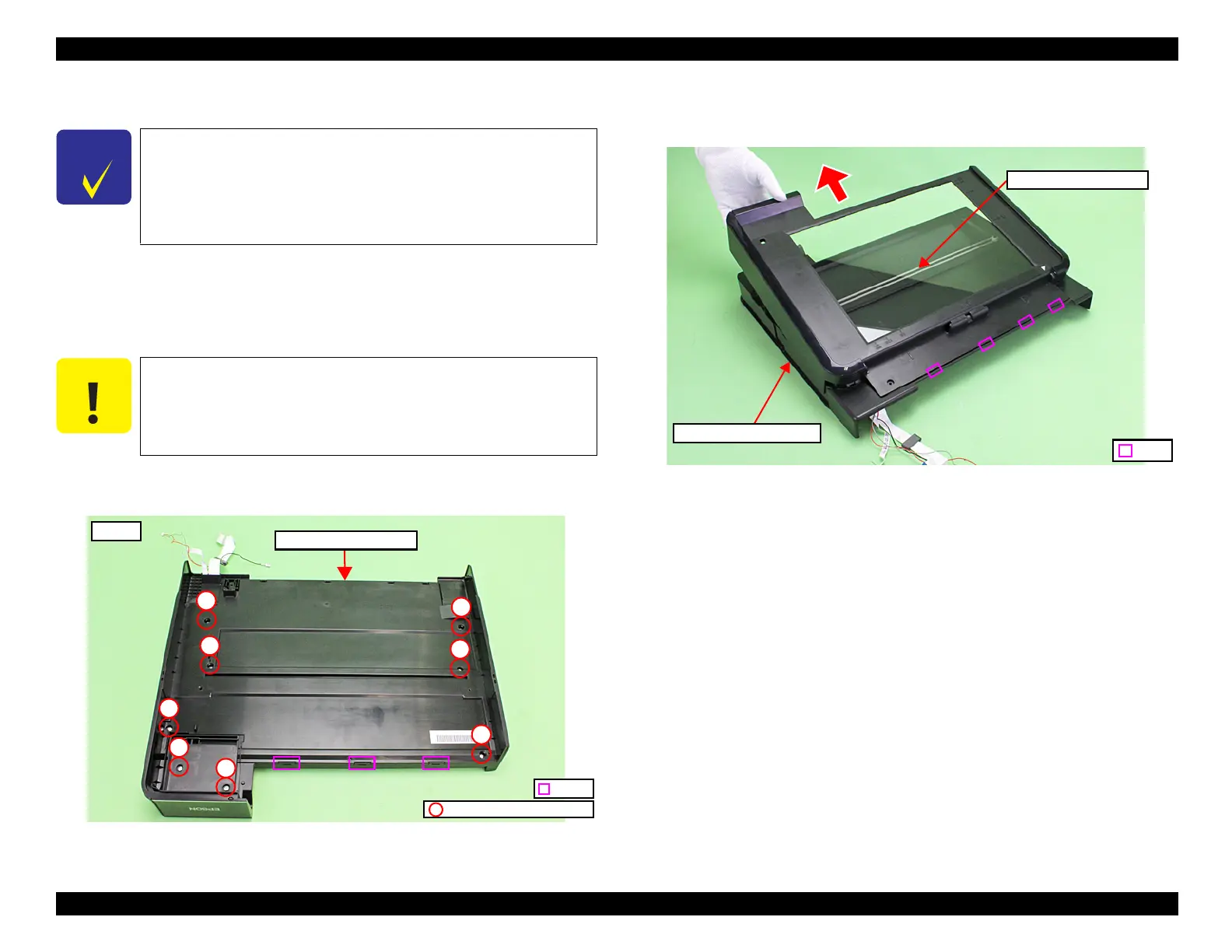

Figure 9-62. Removing the Scanner Upper Housing (1)
3. Lift the front side of the Scanner Upper Housing, and remove the Scanner
Upper Housing in the direction of the arrow.
Figure 9-63. Removing the Scanner Upper Housing (2)
C H E C K
P O I N T
This section describes the disassembly/reassembly procedures of the
Scanner Upper Housing for Artisan 730/PX730WD/TX730WD.
The disassembly/reassembly procedures for Artisan 837/
PX830FWD differ from those for Artisan 730/PX730WD/
TX730WD, therefore, see
"9.4.2.14 Scanner Upper Housing" (p.307)
for the procedures.
C A U T I O N
 It is recommended to remove the Scanner Upper Housing in a
clean room or on a clean bench to keep away from dust and
dirt.
 Be careful not to damage the document glass on the Scanner
Upper Housing.
Bottom
C.B.P. 3x10 (5±1kgfcm)
Scanner Upper Housing
Hook
2
1
8
7
3
5
4
6
Scanner Upper Housing
Rib
Scanner Lower Housing
