Epson Artisan 730 - Right Housing;Housing Front Right

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
Artisan 837/730/PX830FWD/PX730WD/TX730WD Disassembly/assembly 300
Confidential
9.4.2.7 Right Housing/Housing Front Right
 Parts/Components need to be removed in advance:
ADF Unit/Scanner Unit/Decoration Plate Left Upper Sub/Paper Guide Top Assy/
Upper Housing/Hinge/Rear Right FAX Housing
 Removal procedure
1. Remove the screws (x2) that secure the Right Housing.

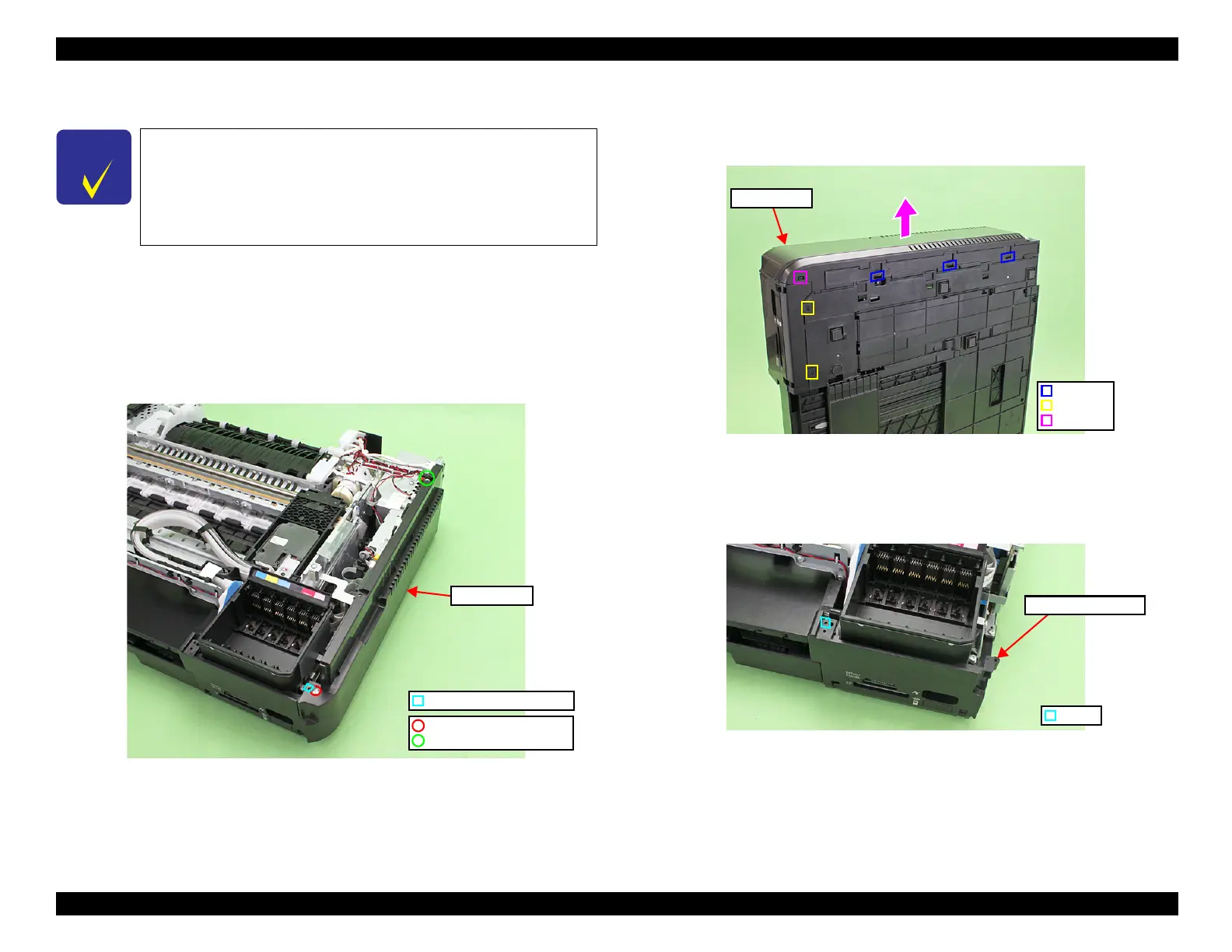

Figure 9-19. Removing the Right Housing (1)
2. Release the dowel (x1) on the front side (see Fig. 9-19), hook A (x3) and hook
B (x1) on the bottom of the Right Housing, and remove the Right Housing in
the direction of the arrow.
Figure 9-20. Removing the Right Housing (2)
3. Release the hooks (x2) of the Housing Front Right on the bottom of the printer
and dowel (x1) of the Base Frame, and remove the Housing Front Right. (See
Fig. 9-20.)
Figure 9-21. Removing the Housing Front Right
C H E C K
P O I N T
This section describes the disassembly/reassembly procedures of the
Right Housing/Housing Front Right for Artisan 837/PX830FWD.
The disassembly/reassembly procedures for Artisan 730/PX730WD/
TX730WD differ from those for Artisan 837/PX830FWD, therefore,
see
"9.4.2.21 Right Housing / Housing Front Right" (p.315) for the
procedures.
Right Housing
Positioning hole & dowel
C.B.S. 3x6 (8±1Kgfcm)
C.B.P. 3x10 (6±1Kgfcm)
Right Housing
Hook A
Rib
Hook B
Dowel
Housing Front Right
