Epson Artisan 730 Service Manual

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
ADJUSTMENT Adjustment Using Adjustment Program 216
Confidential

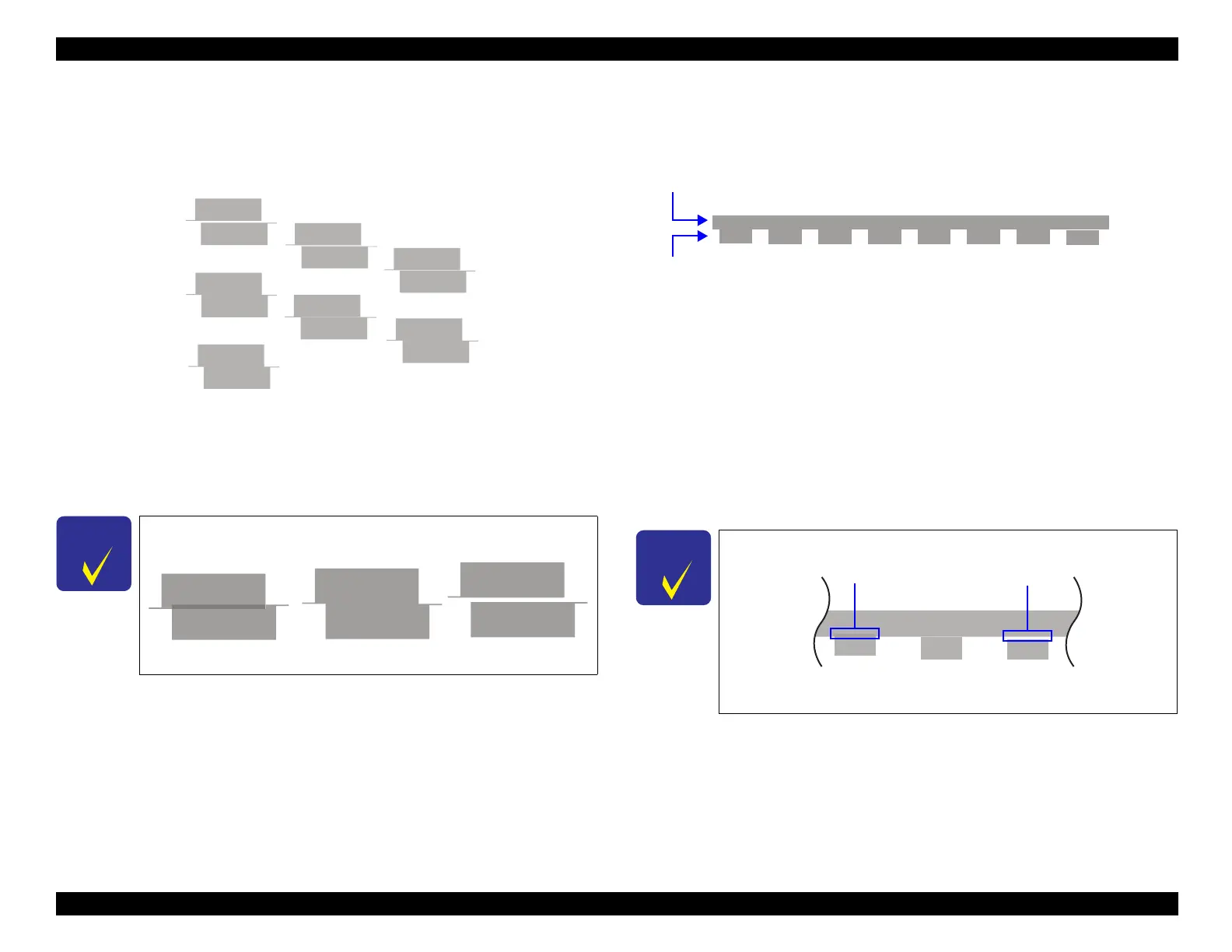

5.2.5 PF Adjustment
 PF-Standard Area
Patterns are printed as shown below.
Figure 5-6. PF Adjustment (Standard Area) Pattern
How to Judge
Enter the value for the group that has no gap or overlap between the upper and the
lower patterns.
 PF-Bottom Edge Area
Patterns are printed as shown below.
Figure 5-7. PF Adjustment (Bottom Edge Area) Pattern
How to Judge
Input the value shown above the patterns which has no gap between the upper pattern
and the lower pattern, and also the both upper and lower patterns do not overlap each
other.
Example: In the above figure, patterns below “4” has no gap and overlap, so input “4”.
Additional information
In case that all patterns have gap or overlap, select the value for the pattern which has
the least gap or overlap, and print the pattern again.
C H E C K
P O I N T
Example for judgement
-1
3
2
-2
0
1
4
OK
NG
NG
C H E C K
P O I N T
Example for judgement
23456781
Upper block
Lower block
OK NGNG
Gap
Overlap

Epson Artisan 730 Specifications

General

Maximum Print Resolution	5760 x 1440 dpi
Maximum Photo Print Speed	4" x 6" photo in as fast as 10 seconds
ISO Print Speed Black	9.6 ISO ppm
ISO Print Speed Color	9.1 ISO ppm
Two-sided ISO Print Speed Black	4.9 ISO ppm
Two-sided ISO Print Speed Color	4.7 ISO ppm
Minimum Ink Droplet Size	1.5 picoliters
Maximum Copy Speed Black	39 cpm
Maximum Copy Speed Color	40 cpm
Maximum Copy Size	8.5" x 11"
Optical Resolution	2400 dpi
Maximum Resolution	9600 x 9600 dpi
Scanner Bit Depth	48-bit color in / 24-bit output
Wireless Connectivity	802.11 b/g/n
Ethernet	10/100
USB	Hi-Speed USB
PC-free Paper Support	Plain (8.5" x 11"), Photo (4" x 6", 5" x 7", 8" x 10", 8.5" x 11", 16:9 wide)
Input Paper Capacity	120 sheets plain paper, 10 envelopes
Output Paper Capacity	30 sheets
Operating Temperature	50 ° to 95 °F (10 ° to 35 °C)
Storage Temperature	-4 ° to 104 °F (-20 ° to 40 °C)
Operating Humidity	20 – 80% (no condensation)
Storage Humidity	5 – 85% (no condensation)
Rated Voltage	120 VAC
Rated Frequency	50 – 60 Hz
Rated Current	0.8 Amp
Power Consumption	Approx. 23 W ISO 24712, Approx. 4.5 W (Sleep Mode), Approx. 0.3 W (Power Off Mode)

Weight and Dimensions

Dimensions (W x D x H) Printing	17.6" x 25.8" x 5.9"
Dimensions (W x D x H) Storage	17.6" x 18.0" x 5.9"
Weight	21.2 lb
