Epson Artisan 730 Service Manual

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
DISASSEMBLY/ASSEMBLY Disassembly Procedures 144
Confidential
2. Release the hooks (x2) on the rear of the Cartridge Box, and remove the CSIC
Assy upward.

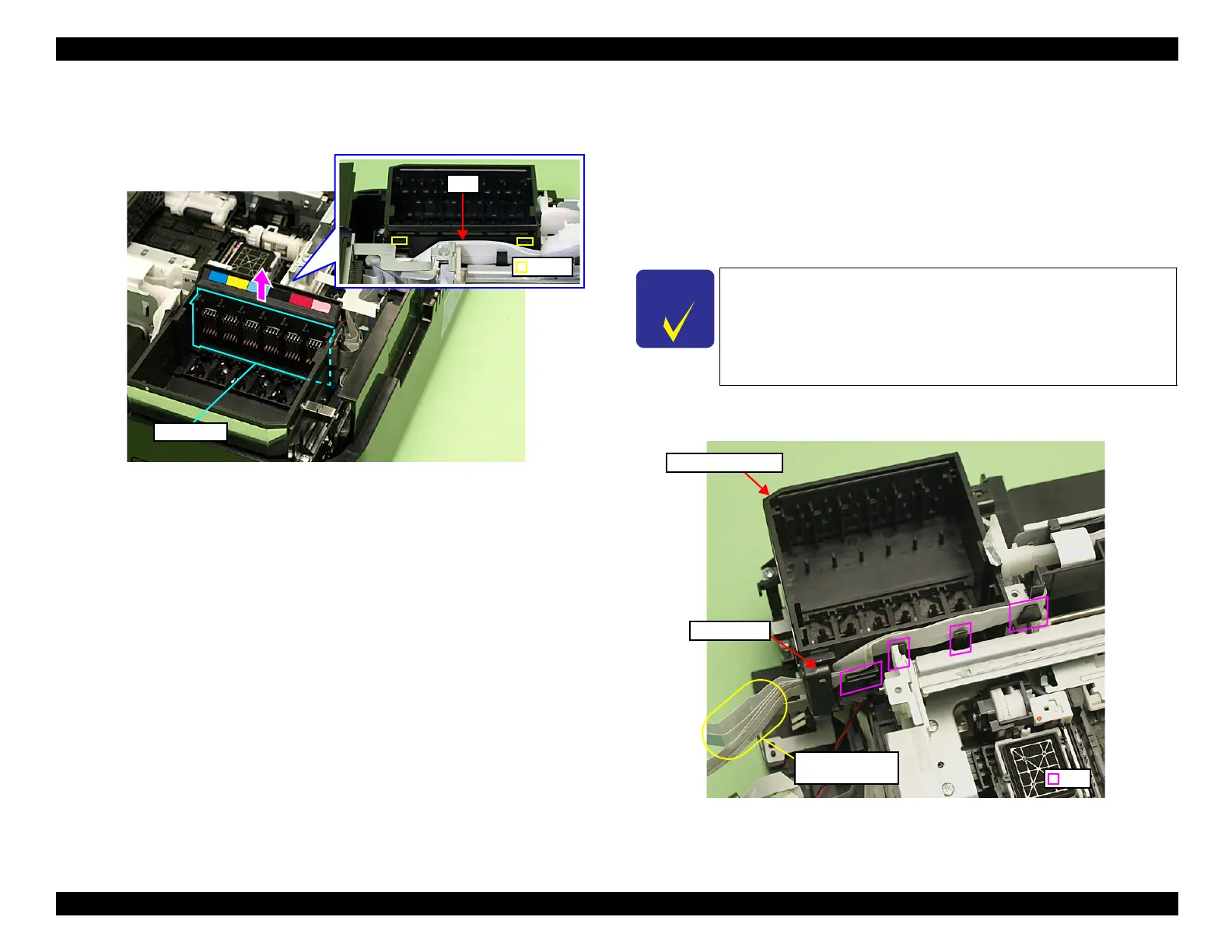

Figure 4-77. Removing the CSIC Assy (2)
4.2.5.6 Ink Supply IC Holder Assy
 Parts/Components need to be removed in advance:
ADF Unit (Artisan 810/835/837/PX810FW/TX810FW/PX820FWD/TX820FWD/
PX830FWD only)/Scanner Unit/Upper Left Housing/Paper Guide Top Assy/
Upper Housing/Printhead/Hinge/Rear Right FAX Housing /Right Housing/Main
Board/CSIC Assy/ Wireless LAN Board
 Removal procedure
1. Release the Head FFCs (x4) and the CR Encoder FFC from the ribs (x4)
behind the Cartridge Box Unit.
Figure 4-78. Releasing the FFCs
FFC
Hook
CSIC Assy
C H E C K
P O I N T
 The Ink Supply IC Holder Assy consists of the Ink Supply Tube
Assy and the Cartridge Box Unit. (See
Fig. 4-52.)
 If the replacement of Ink Supply IC Holder Assy is not
required, so as to minimize the related work, operate without
disconnecting the joint of the Printhead. (See
"4.2.5.1
Printhead" (p.133).)
Cartridge Box Unit
Rib
Ferrite core
Head FFC (x4)
CR Encoder FFC

Epson Artisan 730 Specifications

General

Maximum Print Resolution	5760 x 1440 dpi
Maximum Photo Print Speed	4" x 6" photo in as fast as 10 seconds
ISO Print Speed Black	9.6 ISO ppm
ISO Print Speed Color	9.1 ISO ppm
Two-sided ISO Print Speed Black	4.9 ISO ppm
Two-sided ISO Print Speed Color	4.7 ISO ppm
Minimum Ink Droplet Size	1.5 picoliters
Maximum Copy Speed Black	39 cpm
Maximum Copy Speed Color	40 cpm
Maximum Copy Size	8.5" x 11"
Optical Resolution	2400 dpi
Maximum Resolution	9600 x 9600 dpi
Scanner Bit Depth	48-bit color in / 24-bit output
Wireless Connectivity	802.11 b/g/n
Ethernet	10/100
USB	Hi-Speed USB
PC-free Paper Support	Plain (8.5" x 11"), Photo (4" x 6", 5" x 7", 8" x 10", 8.5" x 11", 16:9 wide)
Input Paper Capacity	120 sheets plain paper, 10 envelopes
Output Paper Capacity	30 sheets
Operating Temperature	50 ° to 95 °F (10 ° to 35 °C)
Storage Temperature	-4 ° to 104 °F (-20 ° to 40 °C)
Operating Humidity	20 – 80% (no condensation)
Storage Humidity	5 – 85% (no condensation)
Rated Voltage	120 VAC
Rated Frequency	50 – 60 Hz
Rated Current	0.8 Amp
Power Consumption	Approx. 23 W ISO 24712, Approx. 4.5 W (Sleep Mode), Approx. 0.3 W (Power Off Mode)

Weight and Dimensions

Dimensions (W x D x H) Printing	17.6" x 25.8" x 5.9"
Dimensions (W x D x H) Storage	17.6" x 18.0" x 5.9"
Weight	21.2 lb
