4.2.6.4 Scanner CR Encoder Board
 Parts/Components need to be removed in advance:
ADF Unit (Artisan 810/835/837/PX810FW/TX810FW/PX820FWD/TX820FWD/
PX830FWD only)/Scanner Unit/Scanner Upper Housing
 Removal procedure
1. Disconnect the Scanner Motor cable from the connector on the Scanner CR
Encoder Board. (See
4.2.6.2 Scanner Motor Unit Step1 (p161).)
2. Disconnect the Scanner CR Encoder FFC from the connector (CN1) on the
Scanner CR Encoder Board.
3. Loosen the screw that secures the Scanner CR Encoder Board to the Scanner
Lower Housing, and remove Scanner CR Encoder Board from the Scanner
Lower Housing.

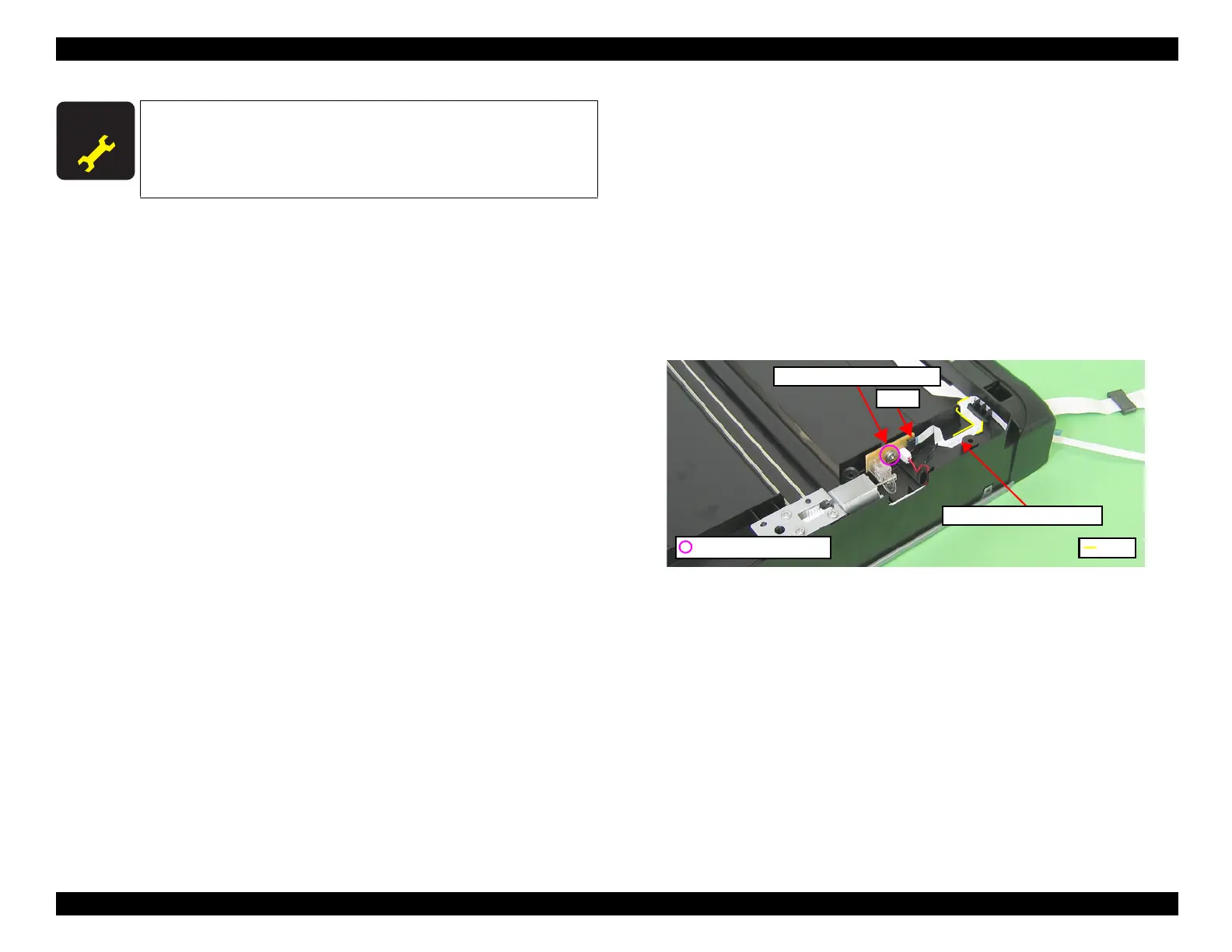

Figure 4-123. Removing the Scanner CR Encoder Board
A D J U S T M E N T
R E Q U I R E D
After replacing or removing the Scanner Carriage, be sure to
perform the required lubrication. (See
Chapter 6
"MAINTENANCE" .)
Scanner CR Encoder Board
CN1
Scanner CR Encoder FFC
Rib
C.B.S. 3x8 (5±1kgfcm)
